Exploded View

WARNING: This page is about a different car, the 2011 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

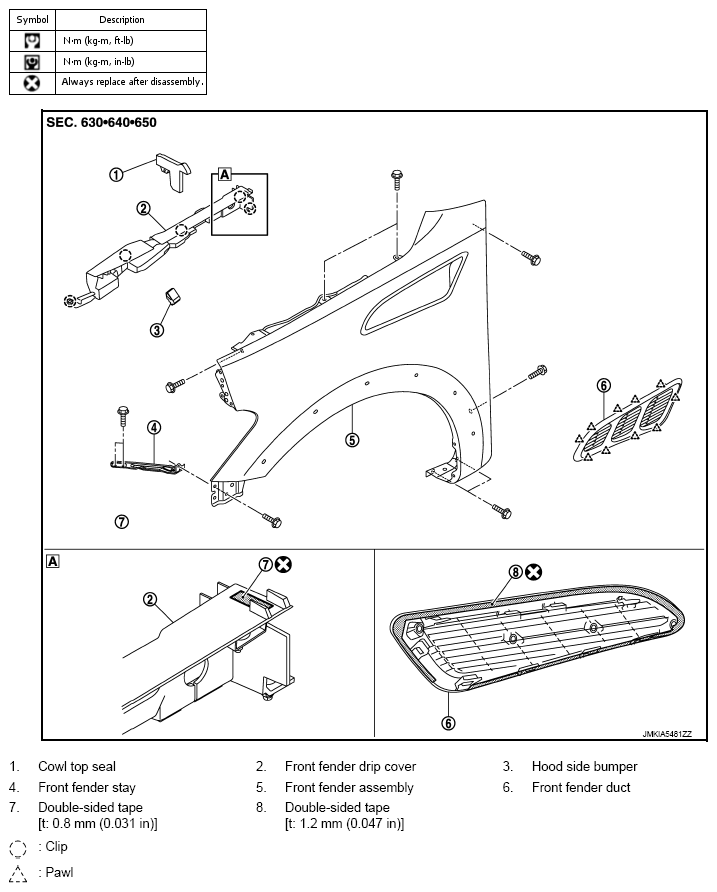

Fig 1: Identifying Front Fender Components
G07022584Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to for symbols in the figure. "COMPONENTS "
