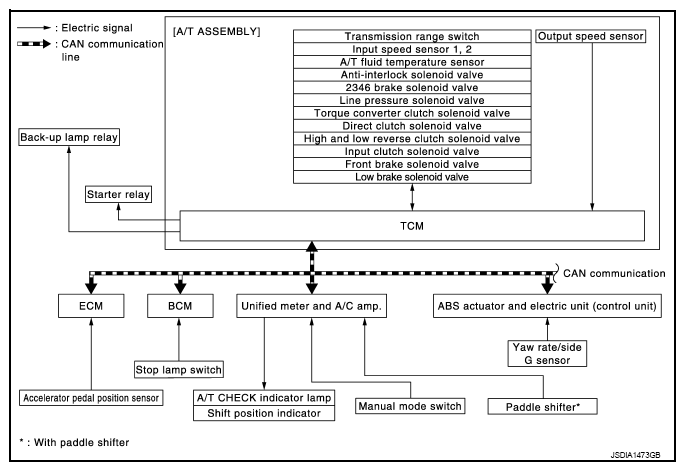

Home >> Infiniti >> 2011 >> G37 Base, 2D Convertible >> Repair and Diagnosis >> Transmission >> Automatic Transmission -- G37 Convertible >> 7AT: Re7R01A >> System Description >> A/T Control System >> System Diagram
