High And Low Reverse Clutch: Assembly

1. Install high and low reverse clutch drive plates, high and low reverse clutch driven plates, and high and low reverse clutch retaining plate in high and low reverse clutch drum. (Type 1)

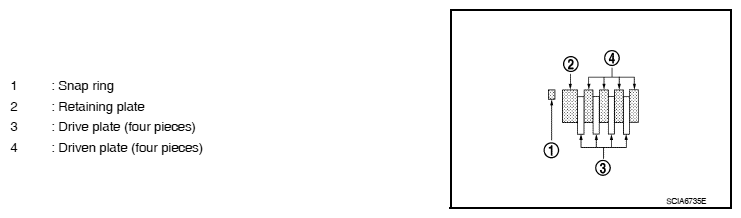

   Fig 1: Identifying High And Low Reverse Clutch Drive Plates, High And Low Reverse Clutch Driven Plates, And High And Low Reverse Clutch Retaining Plate

   Courtesy of NISSAN MOTOR CO., U.S.A.
   CAUTION: Check the order of plates.
2. Install high and low reverse clutch dish plate, high and low reverse clutch drive plates, high and low reverse clutch driven plates, and high and low reverse clutch retaining plate in high and low reverse clutch drum. (Type 2)

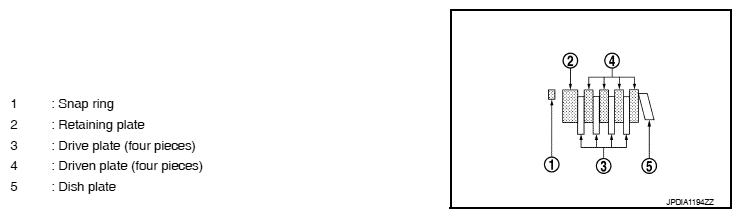

   Fig 2: Installing High And Low Reverse Clutch Dish Plate

   Courtesy of NISSAN MOTOR CO., U.S.A.
   CAUTION: Check the order of plates.
3. Install snap ring in high and low reverse clutch drum using a flat-bladed screwdriver.
   CAUTION:

   • Be careful not to scratch high and low reverse clutch drum.
   • Be careful not to damage snap ring.

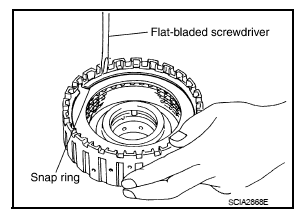

   Fig 3: Identifying Snap Ring In High And Low Reverse Clutch Drum

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Install bearing race to high and low reverse clutch drum.

CAUTION: Check the direction of needle bearing. Refer to "LOCATION OF NEEDLE BEARINGS AND BEARING RACES ".

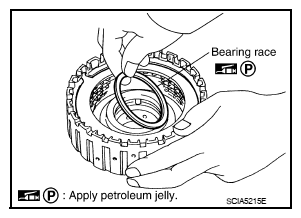

Fig 4: Identifying Bearing Race

Courtesy of NISSAN MOTOR CO., U.S.A.
