Exploded View: Disassembly

WARNING: This page is about a different car, the 2011 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

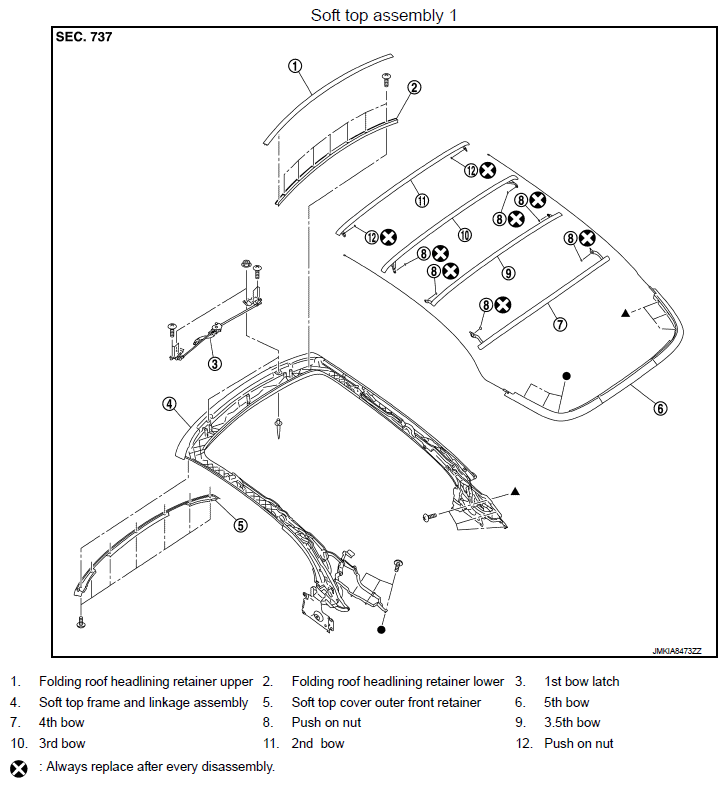

Fig 1: Disassembled View Of Soft Top Assembly 1

Courtesy of NISSAN MOTOR CO., U.S.A.

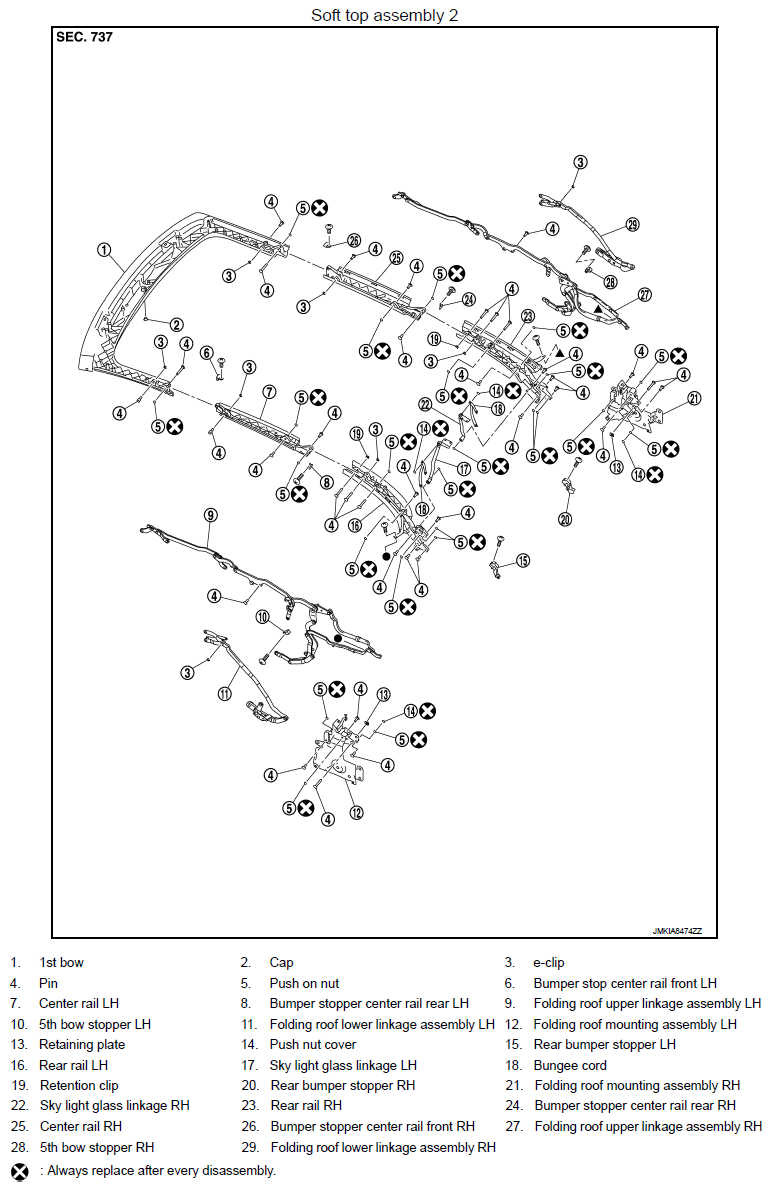

Fig 2: Disassembled View Of Soft Top Assembly 2

Courtesy of NISSAN MOTOR CO., U.S.A.

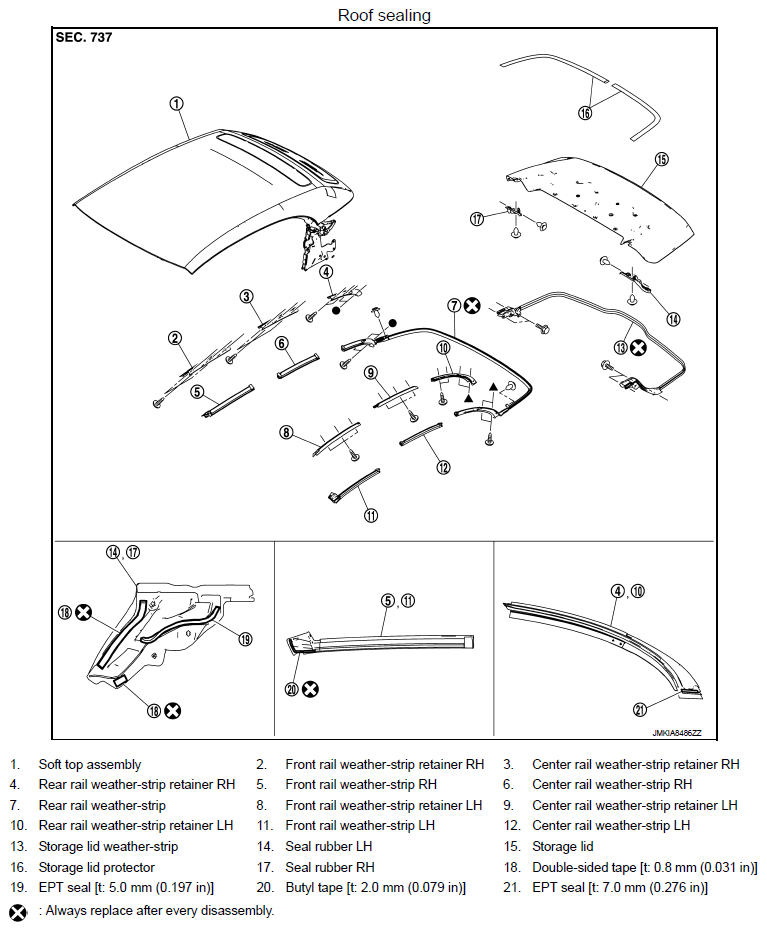

Fig 3: Disassembled View Of Roof Sealing

Courtesy of NISSAN MOTOR CO., U.S.A.
