AWD: Component

WARNING: This page is about a different car, the 2010 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

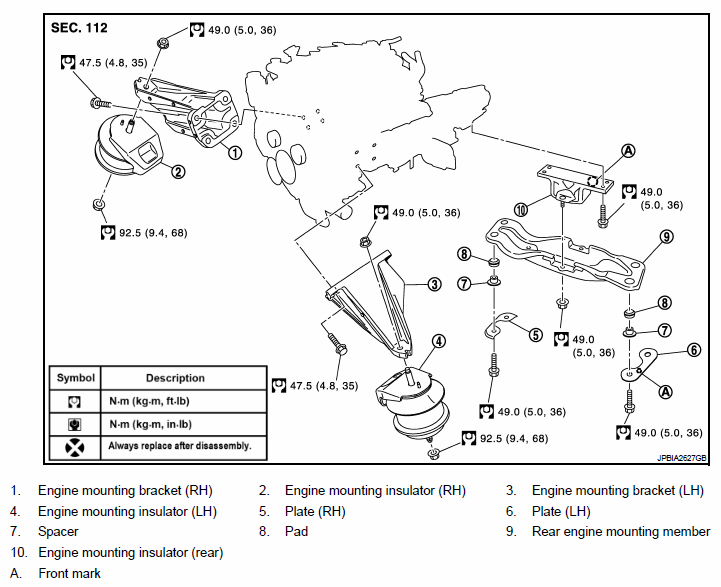

Fig 1: Engine Mounting Bracket With Torque Specifications
G06305315Courtesy of NISSAN MOTOR CO., U.S.A.
