Main Shaft
>>
VK50VE
>>
VK50VE: Exploded View
VK50VE: Exploded View

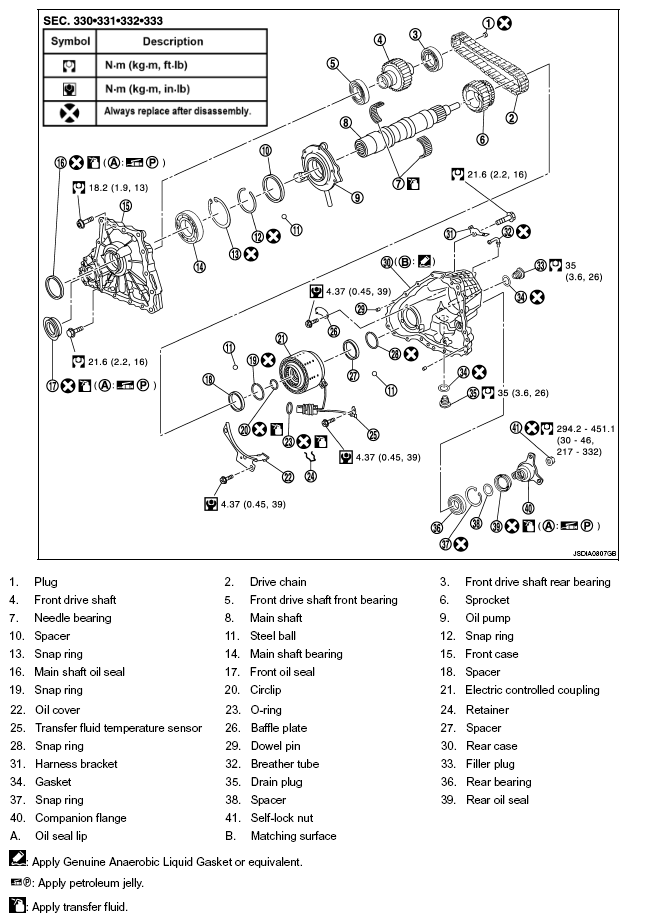

Fig 1: View Of Main Shaft With Torque Specifications - VK50VE
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to
COMPONENTS
for symbols above.
