MEMORY FUNCTION: Component Parts Location

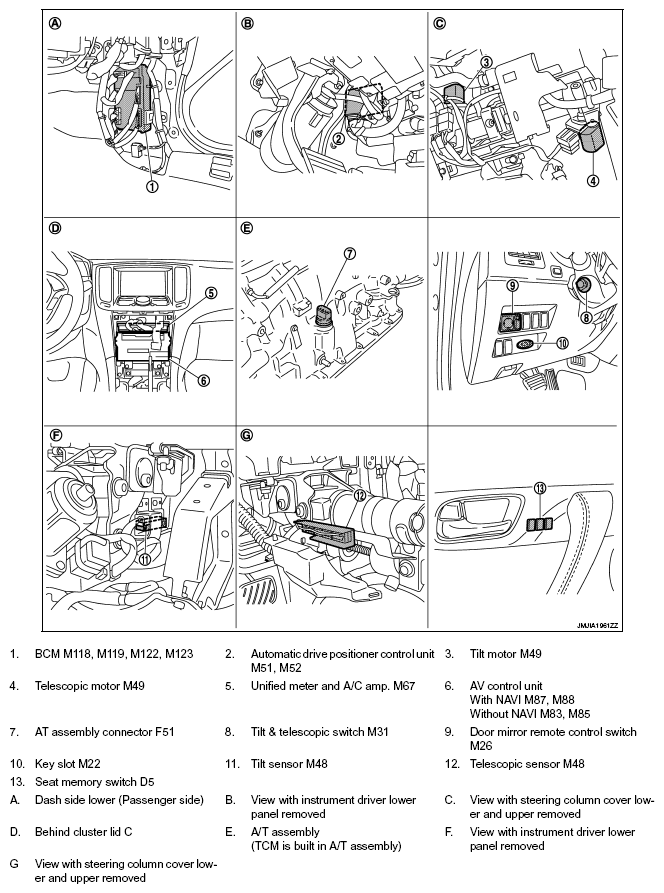

Fig 1: Identifying Memory Function Components Location (1 Of 2)
G05979522Courtesy of NISSAN MOTOR CO., U.S.A.

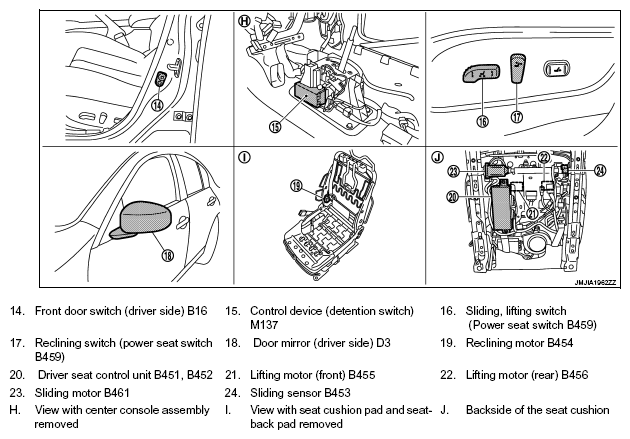

Fig 2: Identifying Memory Function Components Location (2 Of 2)
G05979523Courtesy of NISSAN MOTOR CO., U.S.A.
