Infiniti
>>
2010
>>
EX35 Base, AWD
>>
Repair and Diagnosis
>>
Drivelines & Axles
>>
Differentials & Drive Axles
>>
Front Final Drive
>>
Removal And Installation
>>
Front Final Drive Assembly
>>
Exploded View
Exploded View

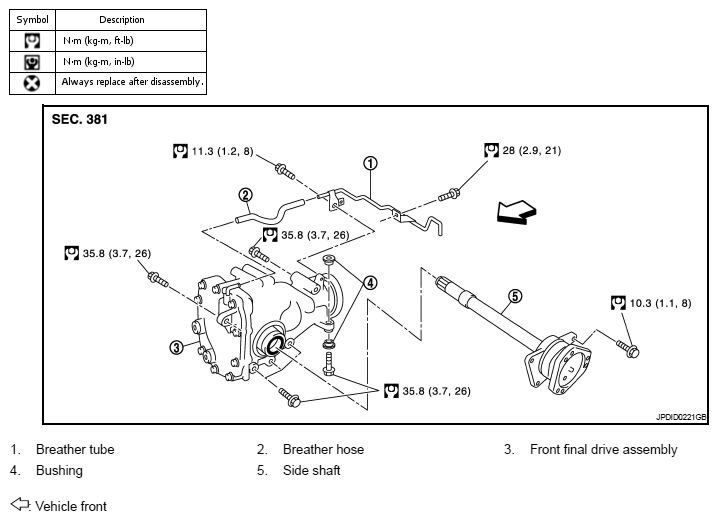

Fig 1: Front Final Drive Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
