Trouble Diagnosis
>>
Component Parts Location
Component Parts Location

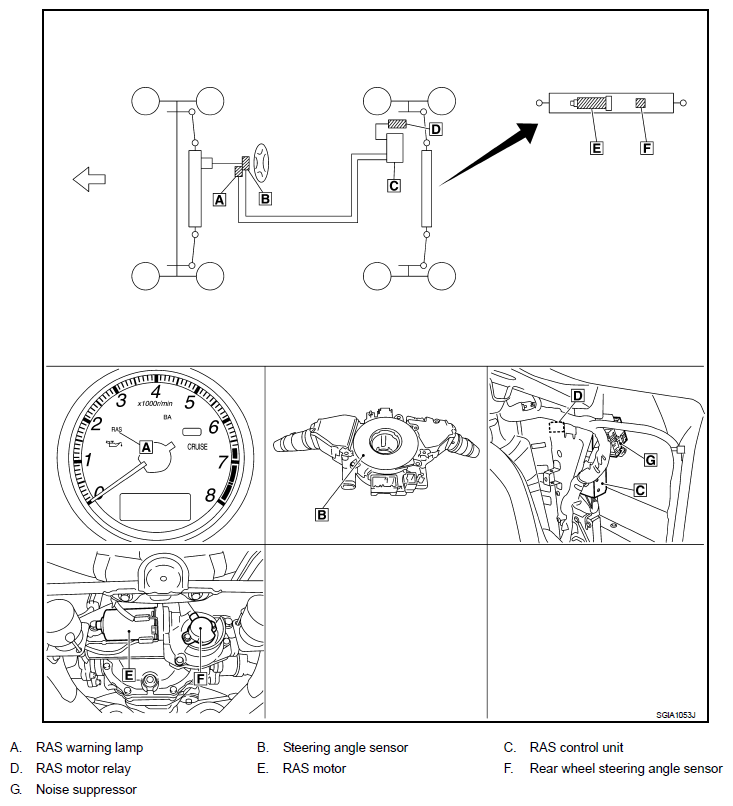

Fig 1: Identifying RAS Warning Lamp, Steering Angle Sensor, RAS Control Unit And RAS Motor Relay
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
