Tail Gate Protector: Installation

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TAIL GATE PROTECTOR
    1. Attach the 12 clips to install the tail gate protector.

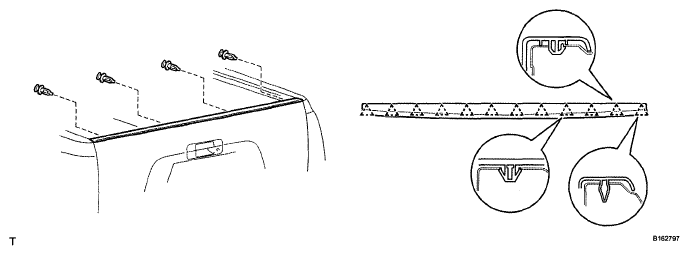

      2. Fig 1: Identifying Tail Gate Protector Clips
      G05163043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 clips.
