Side Step: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

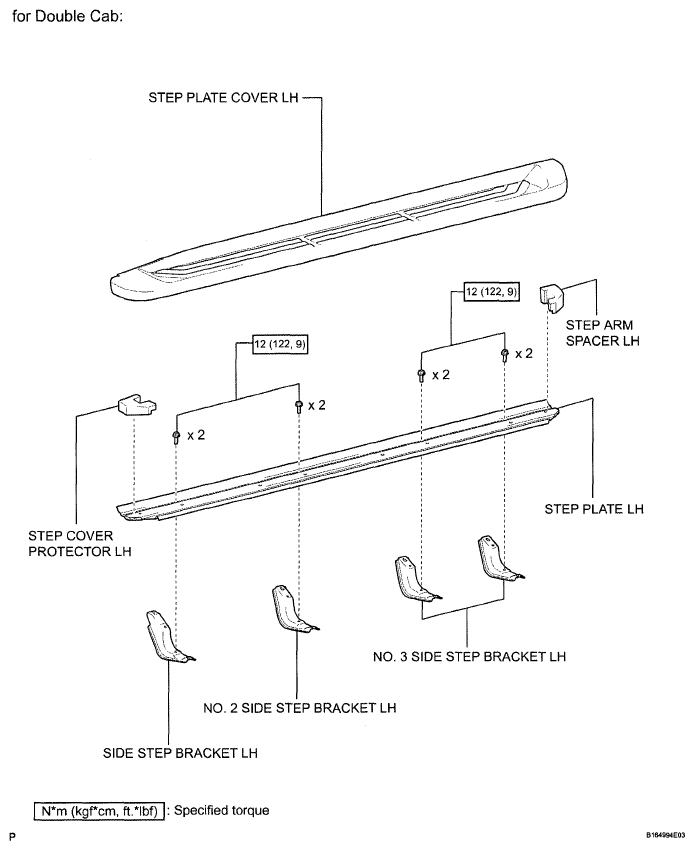

Fig 1: Identifying Side Step Replacement Components With Torque Specifications - For Double Cab (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

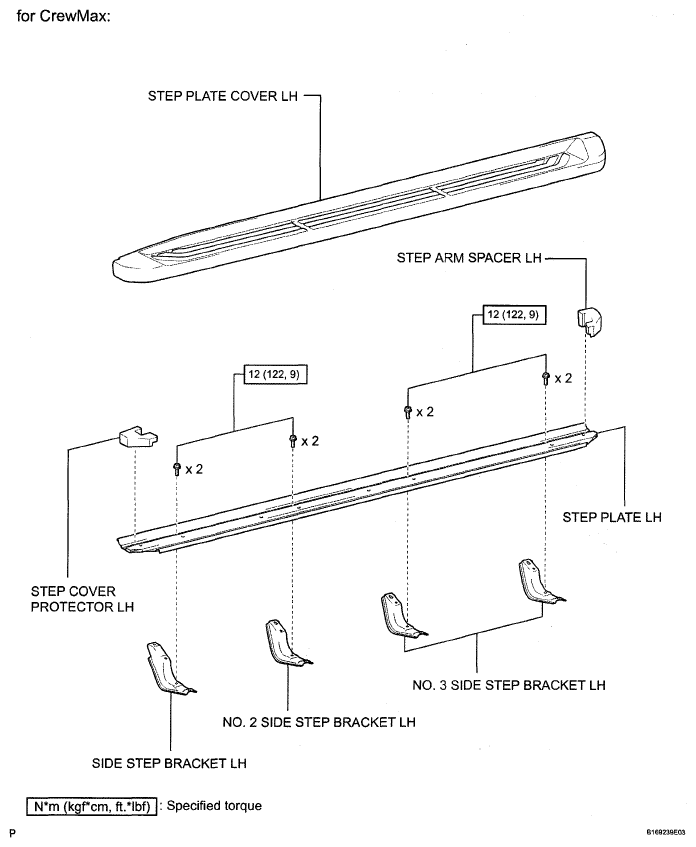

Fig 2: Identifying Side Step Replacement Components With Torque Specifications - For CrewMax Cab (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

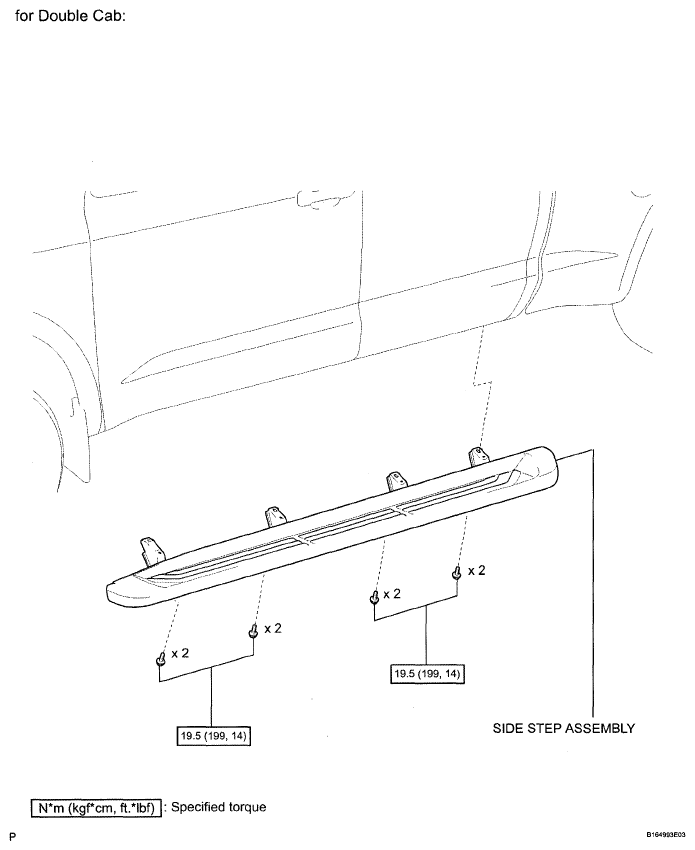

Fig 3: Identifying Side Step Replacement Components With Torque Specifications - For Double Cab (2 Of 2)

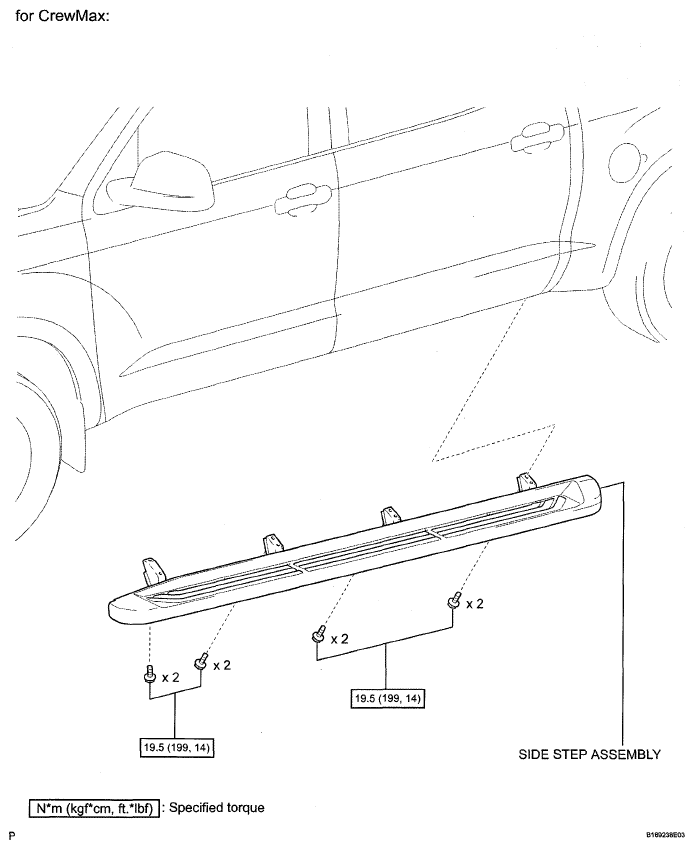

Fig 4: Identifying Side Step Replacement Components With Torque Specifications - For CrewMax Cab (2 Of 2)
