Name Plate: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Name Plate Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

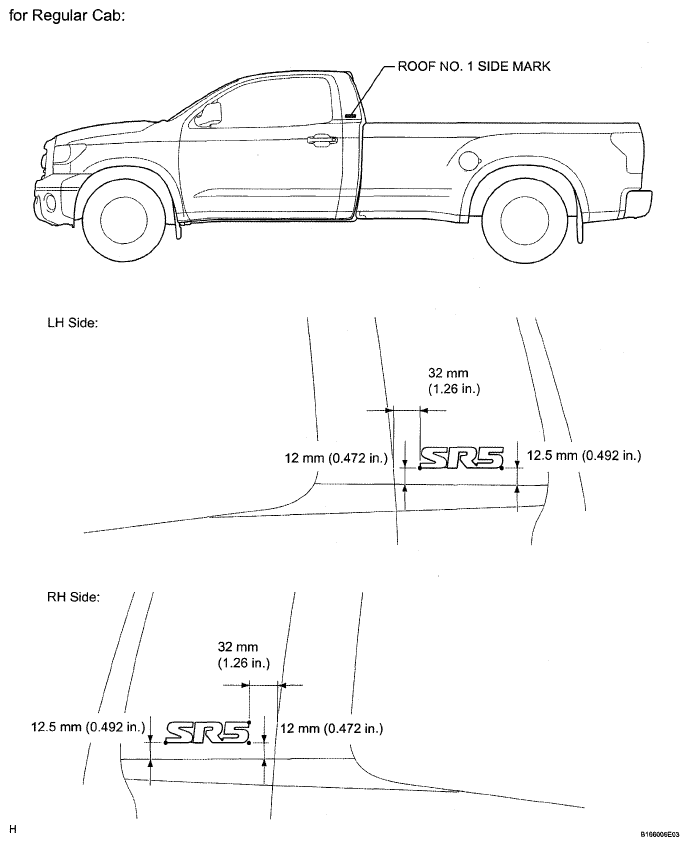

Fig 2: Identifying Name Plate Replacement Components - For Regular Cab

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

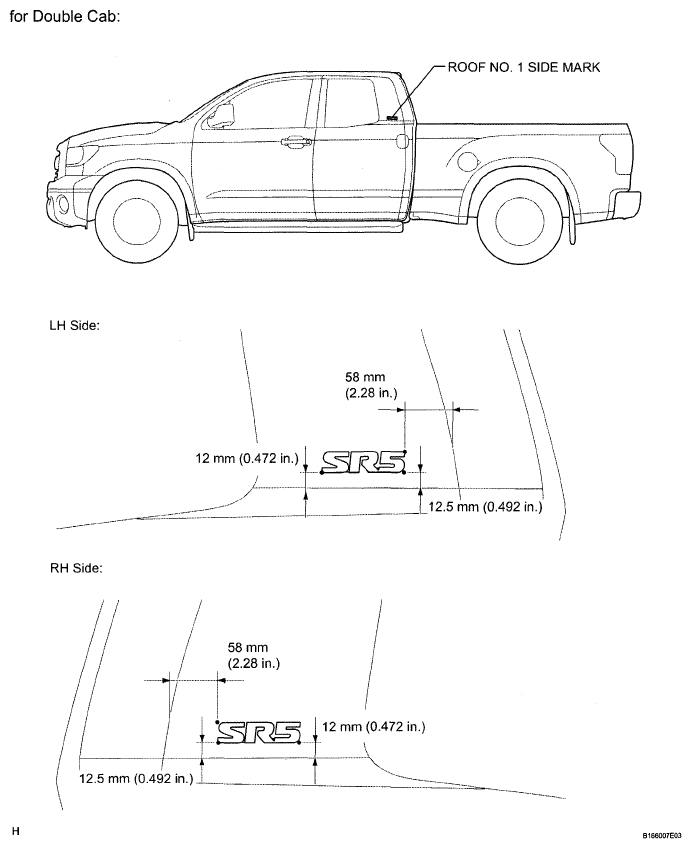

Fig 3: Identifying Name Plate Replacement Components - For Double Cab (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

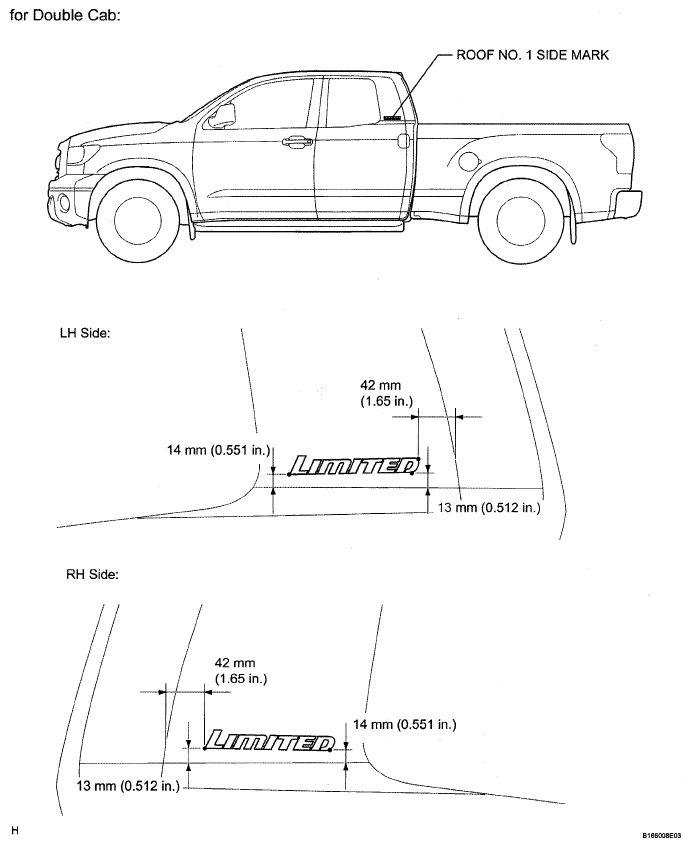

Fig 4: Identifying Name Plate Replacement Components - For Double Cab (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

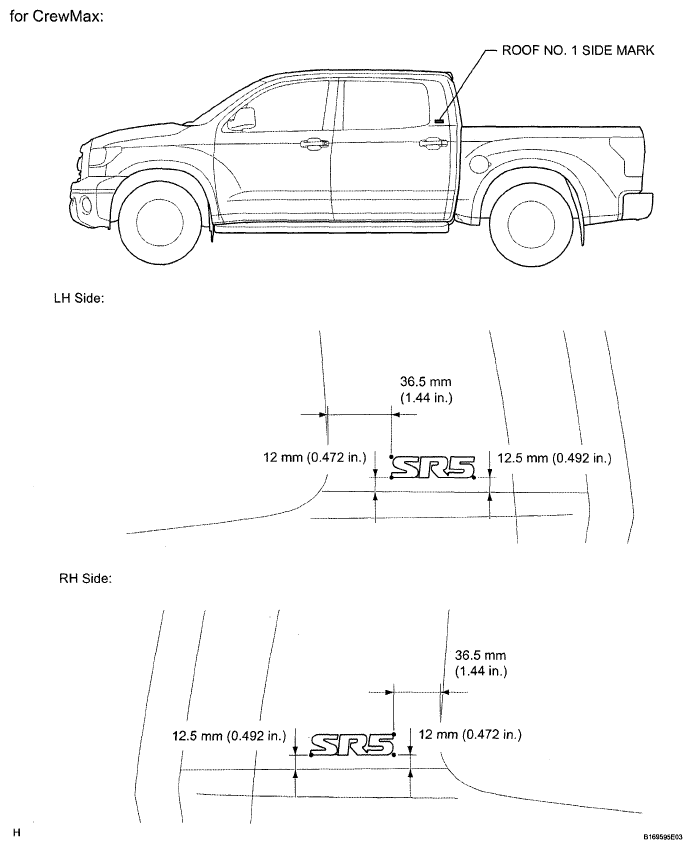

Fig 5: Identifying Name Plate Replacement Components - For Crewmax (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

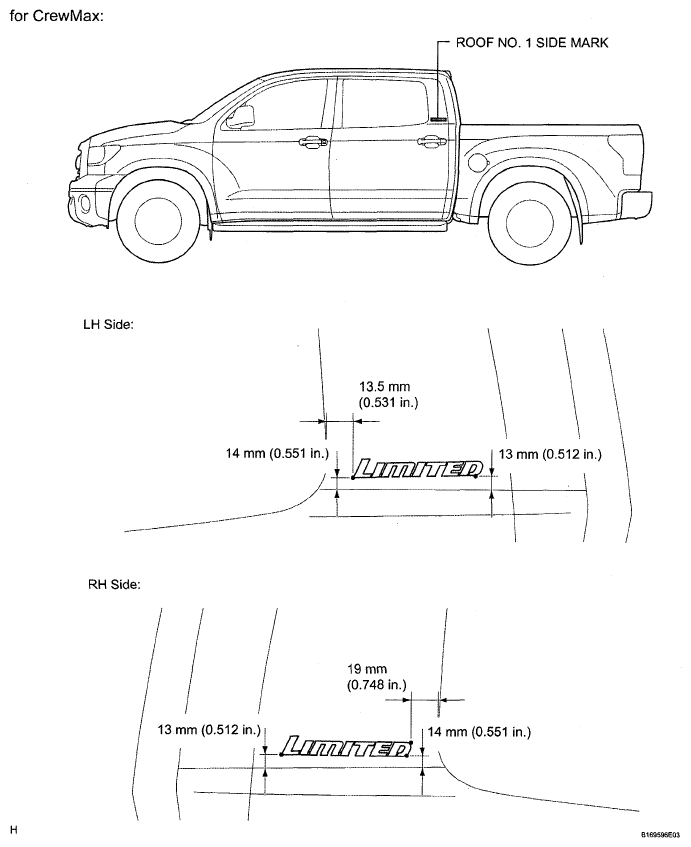

Fig 6: Identifying Name Plate Replacement Components - For Crewmax (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

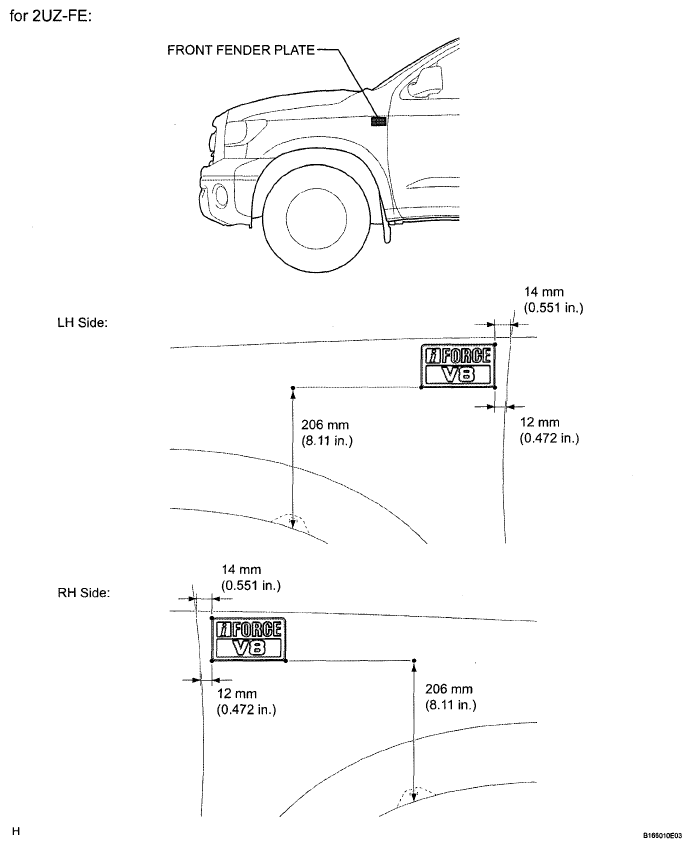

Fig 7: Identifying Name Plate Replacement Components - For 2UZ-FE

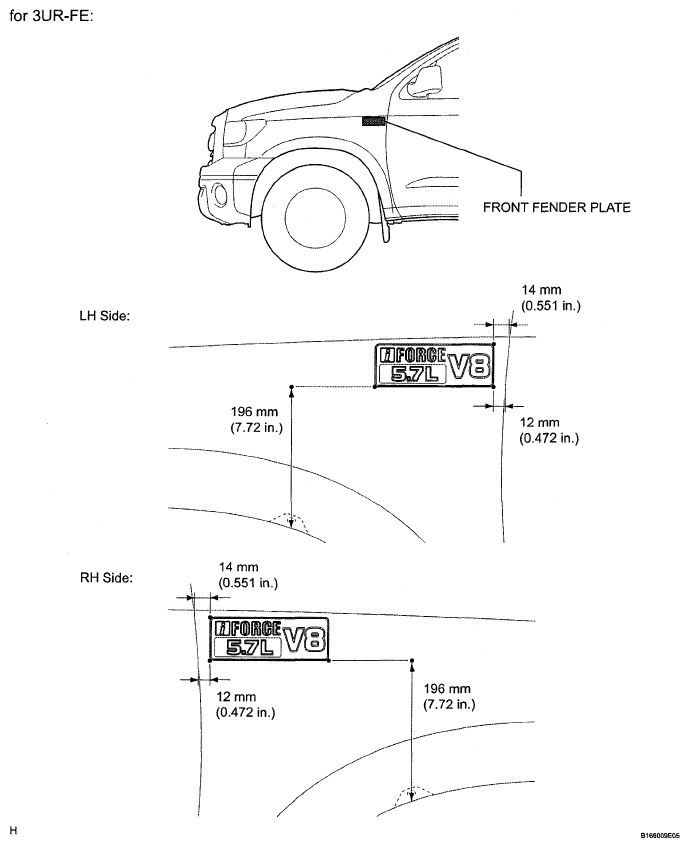

Fig 8: Identifying Name Plate Replacement Components - For 3UR-FE

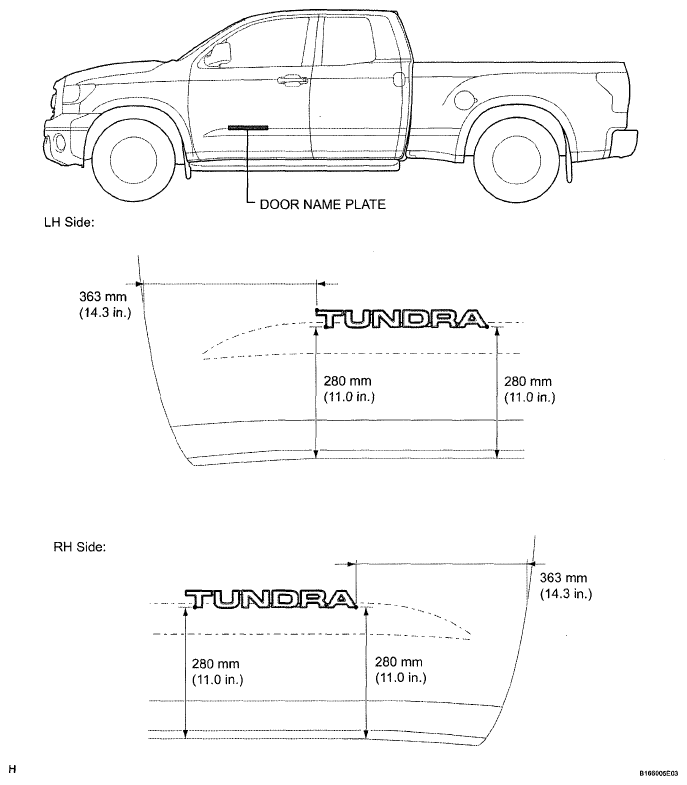

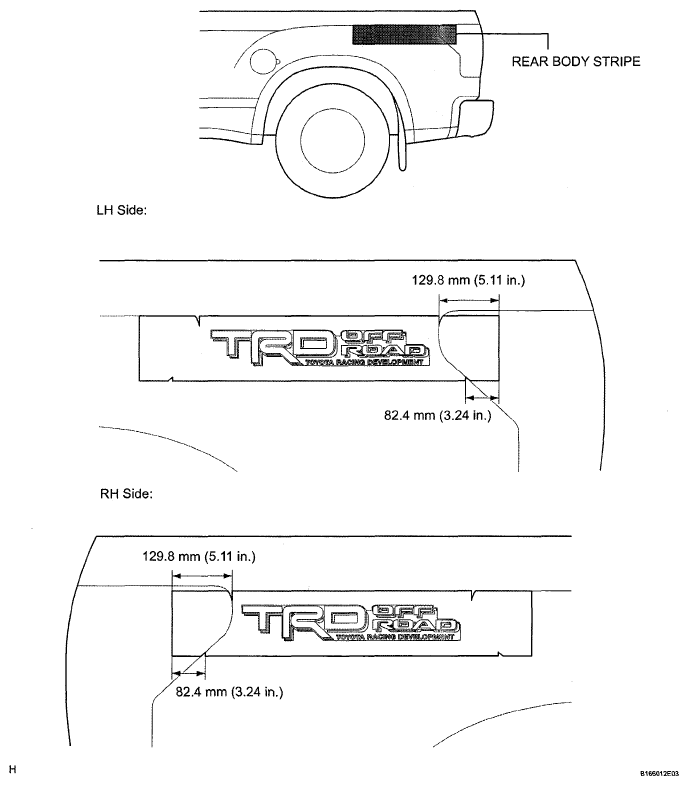

Fig 9: Identifying Name Plate Replacement Components (1 Of 2)

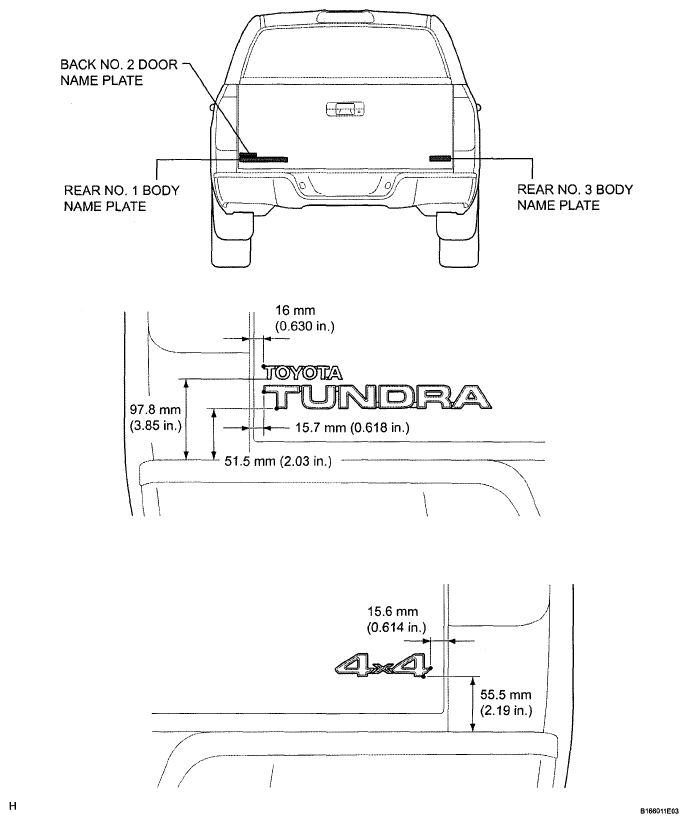

Fig 10: Identifying Name Plate Replacement Components (2 Of 2)
