Inspection Procedure

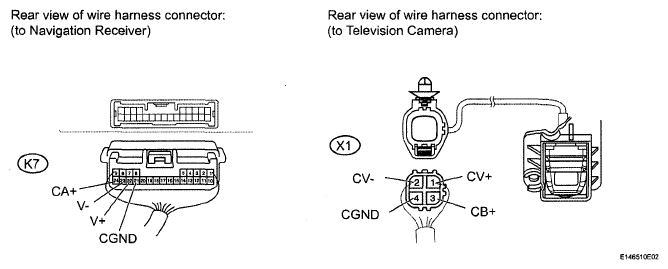

Fig 1: Checking Harness And Connector (Navigation Receiver Assembly Television Camera)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the K7 navigation receiver assembly connector.
2. Disconnect the X1 camera connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   HARNESS AND CONNECTOR (NAVIGATION RECEIVER ASSEMBLY TELEVISION CAMERA) RESISTANCE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   K7-22 (V+) - X1-1 (CV+)	Always	Below 1 Ω
   K7-23 (V-) - X1-2 (CV-)	Always	Below 1 Ω
   K7-21 (CGND) - X1-4 (CGND)	Always	Below 1 Ω
   K7-24 (CA+) - X1-3 (CB+)	Always	Below 1 Ω
   K7-22 (V+) - Body ground	Always	10 kΩ or higher
   K7-23 (V-) - Body ground	Always	10 kΩ or higher
   K7-21 (CGND) - Body ground	Always	10 kΩ or higher
   K7-24 (CA+) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

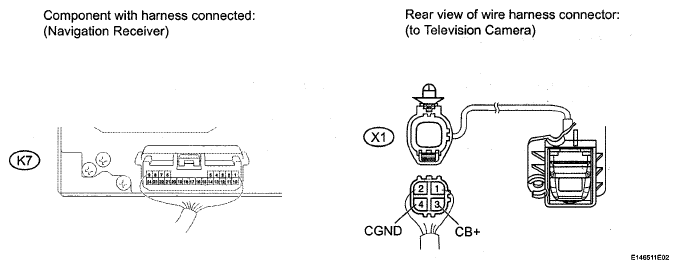

Fig 2: Checking Navigation Receiver Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the X1 camera connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   NAVIGATION RECEIVER ASSEMBLY VOLTAGE SPECIFICATION



   Tester Connection	Switch Condition	Specified Condition
   X1-3 (CB+) - X1-4 (CGND)	Ignition switch ON, shift lever R position	5.5 to 7.05 V

   Result

   NAVIGATION RECEIVER ASSEMBLY RESULT CHART



   Result	Proceed to
   OK	A
   NG (for Column Shift Type)	B
   NG (for Floor Shift Type)	C

B: REPLACE NAVIGATION RECEIVER ASSEMBLY  (See NAVIGATION RECEIVER (FOR COLUMN SHIFT TYPE) )

C: REPLACE NAVIGATION RECEIVER ASSEMBLY  (See NAVIGATION RECEIVER (FOR FLOOR SHIFT TYPE) )

A: Go to next step

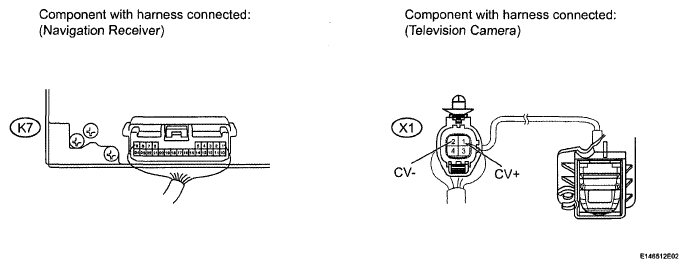

Fig 3: Checking Television Camera Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Reconnect the X1 camera connector.
2. Using an oscilloscope, check the waveform.

   Waveform (Reference)

   OSCILLOSCOPE WAVEFORM REFERENCE



   Item	Content
   Tester Connection	X1-1 (CV+) - X1-2 (CV-)
   Tool Setting	0.2 V/DIV., 0.2 μsec./DIV.
   Condition	Ignition switch ON, shift lever R position

   Fig 4: Oscilloscope Waveform

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: Correct waveform is as shown.

   Result

   OSCILLOSCOPE RESULT CHART



   Result	Proceed to
   NG	A
   OK (for Column Shift Type)	m
   OK (for Floor Shift Type)	C

B: REPLACE NAVIGATION RECEIVER ASSEMBLY  (See NAVIGATION RECEIVER (FOR COLUMN SHIFT TYPE) )

C: REPLACE NAVIGATION RECEIVER ASSEMBLY  (See NAVIGATION RECEIVER (FOR FLOOR SHIFT TYPE) )

A: REPLACE TELEVISION CAMERA ASSEMBLY  (see REMOVAL  )
