Front Suspension (AWD)
>>
Removal And Installation
>>
Front Suspension Member
>>
Exploded View
Exploded View

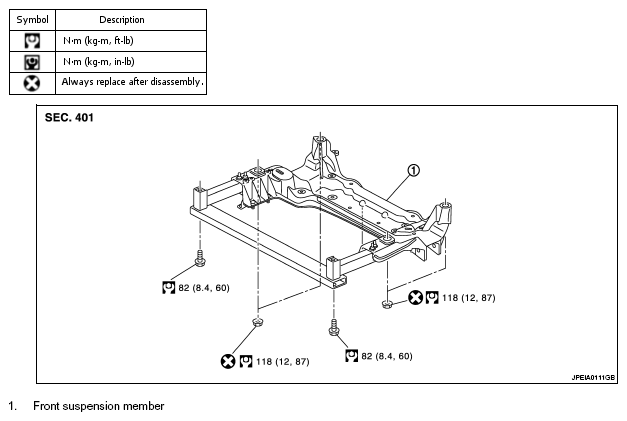

Fig 1: Exploded View Of Front Suspension Member With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
COMPONENTS
" for symbols in the figure.
