Component Inspection (Cooling Fan Relay)

CHECK COOLING FAN RELAY 1

Check the continuity between cooling fan relay 1 terminals under the following conditions.

CONTINUITY CONDITIONS

Terminals	Conditions	Continuity
3 and 5	12 V direct current supply between terminals 1 and 2	Existed
3 and 5	No current supply	Not existed

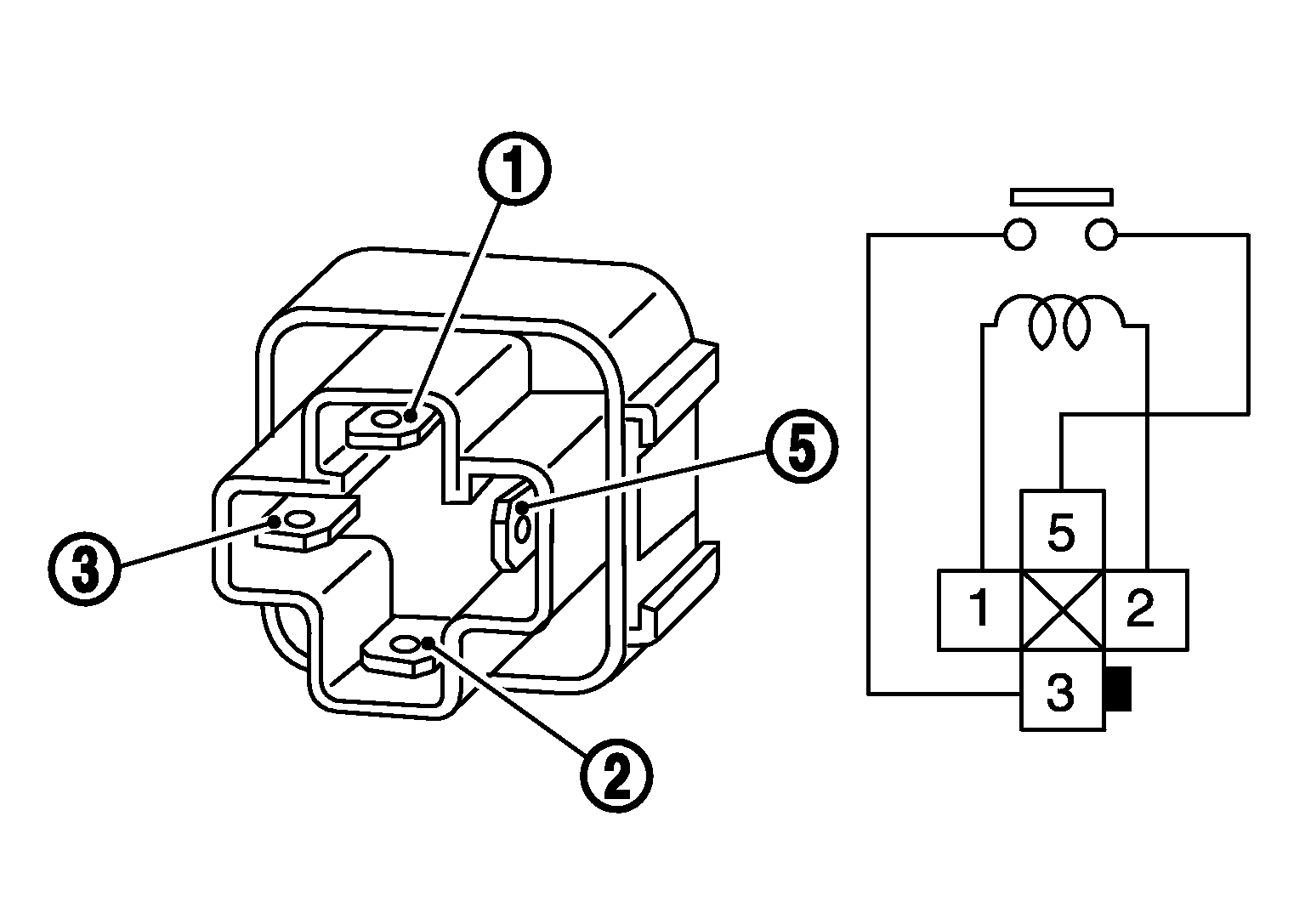

Fig 1: Identifying Cooling Fan Relay 1 Terminals With Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

Is the inspection result normal?

YES: INSPECTION END

NO: Replace cooling fan relay 1.
