Engine Compartment

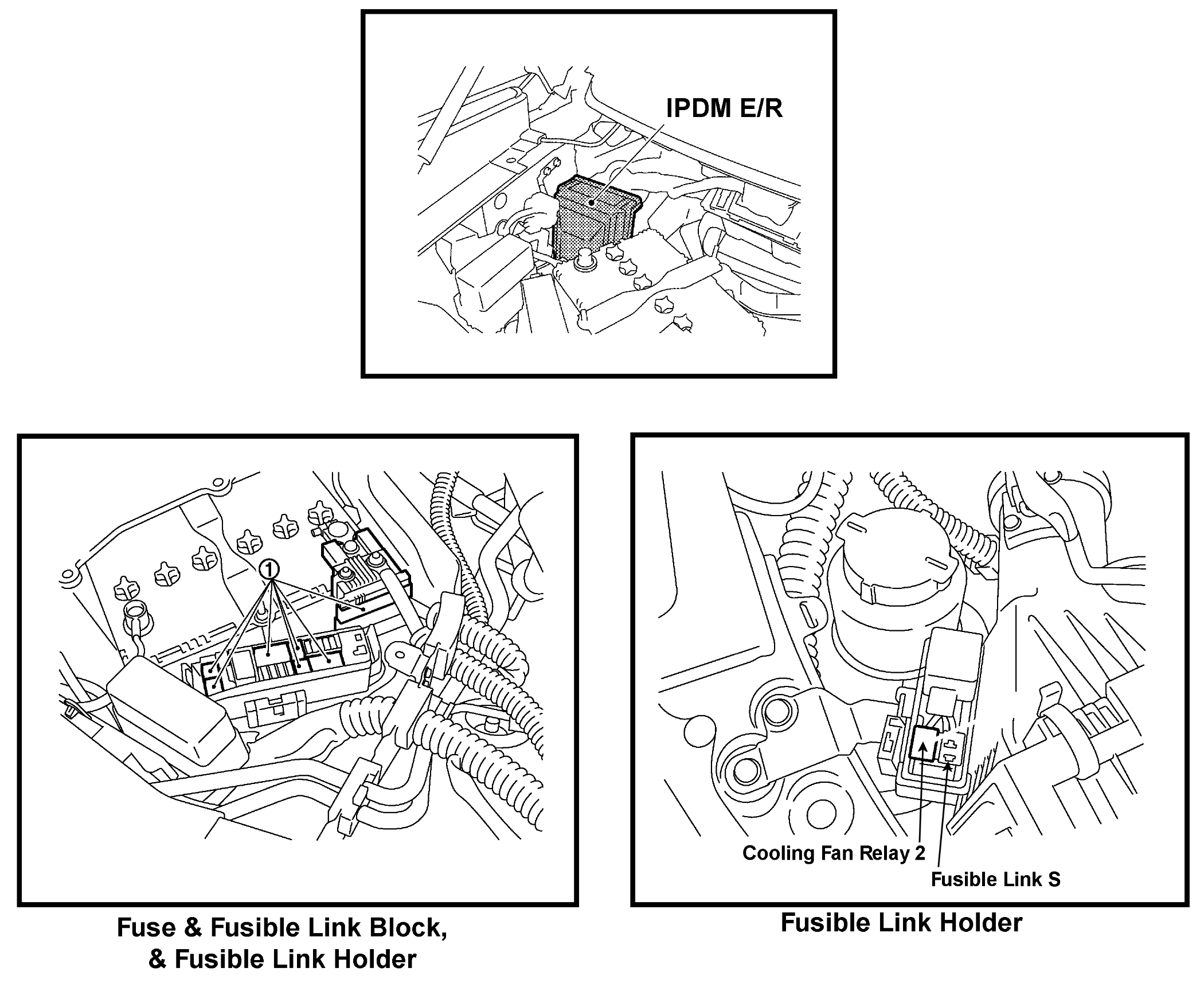

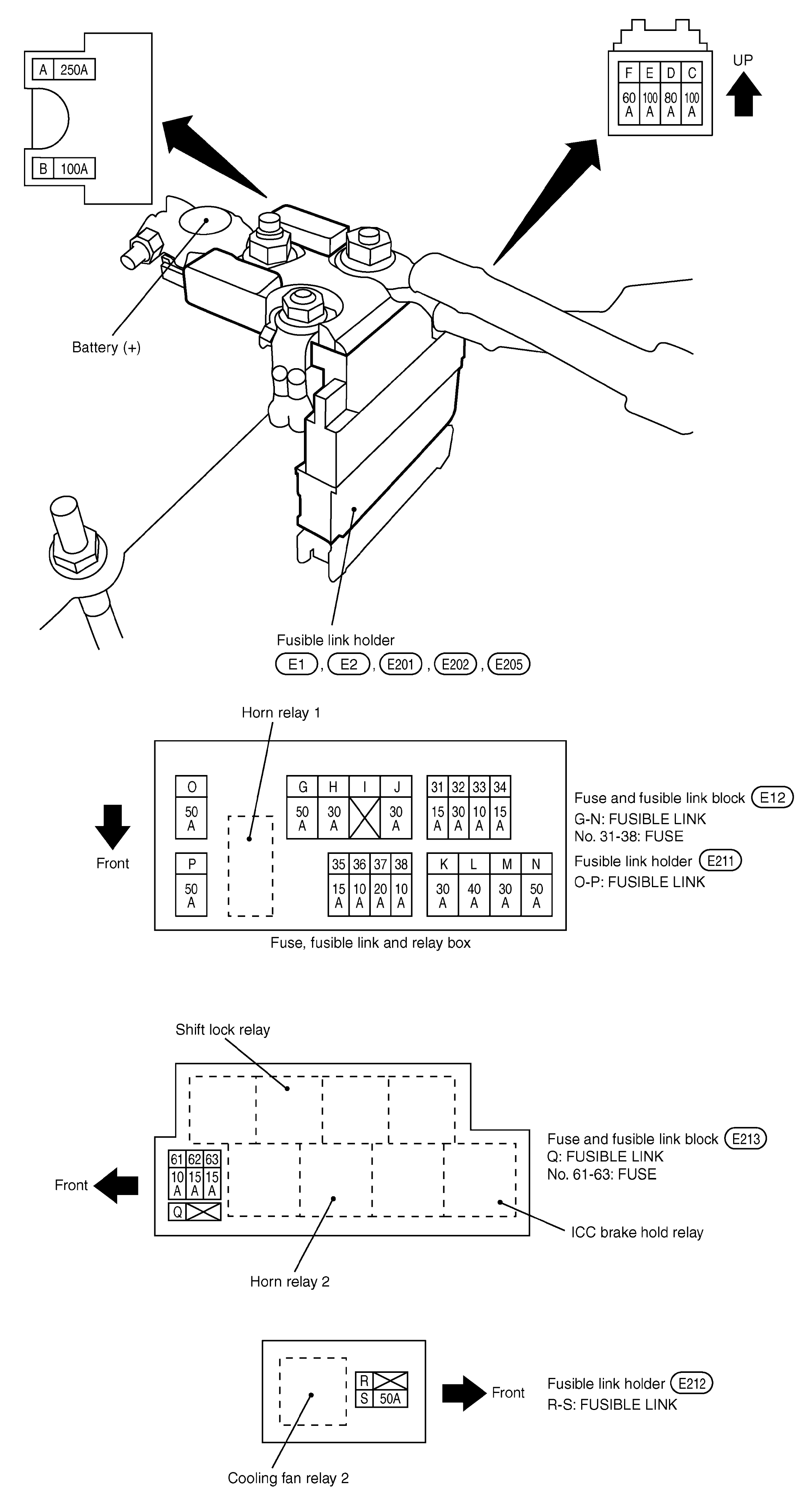

Fig 2: Identifying Engine Compartment Fusible Link Holder, Fuse and Fusible Link, & Relay Box Components
Engine Compartment Fuse & Fusible Link Block, Fusible Link Holder Assignments
| Fusible Link | Amps | Circuit |
|---|---|---|
| A | 250 A | Fusible Links B - E Starter Motor, Alternator |
| B | 100 A | Fusible Links: O, P, S |
| C | 100 A | Fusse and Fusible Link Block [E12] |
| D | 80 A | Ign. Power Supply In IPDM E/R: Fuses 48 - 51, Fuel Pump Relay |
| E | 100 A | Ign. Power Supply, Acc. Power Supply In Fuse Block (J/B): Fuses 5 - 11 |
| F | 60 A | Ign. Power Supply In IPDM E/R: Fuse 58, & Headlamp Low Relay, Tail Lamp Relay |
| G [VK Engine Only] |
50 A | VVEL Actuator Motor Relay |
| H | 30 A | IPDM E/R & Fuse Block (J/B) |
| I | - | Blank |
| J [w/ ICC] |
30 A | Pre-Crash Seat Belt Control Unit (Driver) |
| K [w/ ICC] |
30 A | Pre-Crash Seat Belt Control Unit (Passenger) |
| L | 40 A | BCM [w/ Auto. Drive Positioner:] Auto. Drive Positioner Control Unit, Driver Seat Control Unit, Lumbar Support Switch, [w/ Sports Seat:] Side Supprot Unit |
| M | 30 A | ABS Actuator And Electric Control Unit |
| N | 50 A | ABS Actuator And Electric Control Unit |
| O [E211] |
50 A | Cooling Fan Relay 1 |
| P [E211] |
50 A | Fuses 61 - 63 [In E213] |
| Q | - | Blank |
| R | - | Blank |
| S [E212] [VK Engine Only] |
50 A | Cooling Fan Relay 2 |
| Fuse | Amps | Circuit |
| 31 | 15 A | Horn Relay 1 [On VK Engine:] Alternator |
| 32 | 30 A | Option Connector |
| 33 | 10 A | [w/ AWD:] AWD Control Unit [w/ ICC:] Brake Booster Control Unit |
| 34 | 15 A | Front Disply Unit (NAVI), AV Control Unit, Video Distributor, iPod Adapter, Around View Monitor Control (NAVI), Camera Control Unit, Woofer, Sat.Radio Tuner, Rear Display Unit, TEL Adapter Unit, DVD Player |
| 35 | 15 A | Back Door Control Unit |
| 36 | 10 A | TCM |
| 37 | 20 A | RAS Motor Relay |
| 38 | 10 A | Horn Relay 2 |
| 61 | 10 A | Accel. Pedal Actuator |
| 62 | 15 A | Climate Controlled Seat Relay |
| 63 | 15 A | Climate Controlled Seat Relay |
IPDM E/R Assignments
| Fuse | Amps | Circuit |
|---|---|---|
| 41 | 15 A | Fuel Pump Relay |
| 42 | 10 A | Cooling Fan Relay 1 |
| 43 | 10 A | TCM, Snow Mode Switch |
| 44 | 10 A | BCM, ECM, Total Illum. Control Unit |
| [VQ Engine:] Fuel Injectors 1-6 | ||
| [VK Engine:] Fuel Injectors 1-8 | ||
| 45 | 10 A | ICC Sensor Integrated Unit, Accel Pedal Actuator, ABS Actuator and Electric Unit, Steering Angle Sensor, Yaw Rate/Side G Sensor, AWD Control Unit, Power Steering Control Unit, RAS Control Unit, [w/ ICC:] Brake Booster Control Unit, ICC Warning Chime |
| 46 | 15 A | Both HO2 Sensors & Both Air Fuel Ratio (A/F) Sensors |
| 47 | 10 A | Combination Switch |
| 48 | 10 A | Steering Lock Relay |
| 49 | 10 A | A/C Relay |
| 50 | 15 A | ECM Relay |
| 51 | 15 A | Throttle Control Motor Relay |
| 52 | 10 A | Front Combination Lamps LH & RH |
| 53 | 10 A | Rear Combination Lamps LH & RH, License Plate Lamps LH & RH, AV Control Unit, Glove Box Lamp, Total Illum. Control Unit, Front Power Socket, Control Device, Around View Monitor Control Unit, DVD Player |
| 54 | 10 A | Front Combination Lamp LH |
| 55 | 10 A | Front Combination Lamp RH |
| 56 | 15 A | Headamp LH |
| 57 | 15 A | Headamp RH |
| 58 | 15 A | Front Fog Lamp Relay |
| 59 | - | Blank |
| 60 | 30 A | Front Wiper Relay |
