VK50VE : Exploded View: Removal

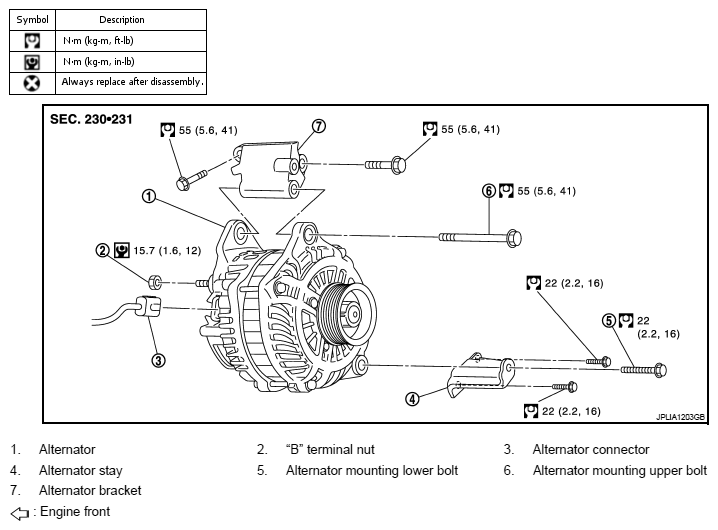

Fig 1: Alternator Replacement Components - VK50VE With Torque Specifications
G05983085Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
