Exploded View

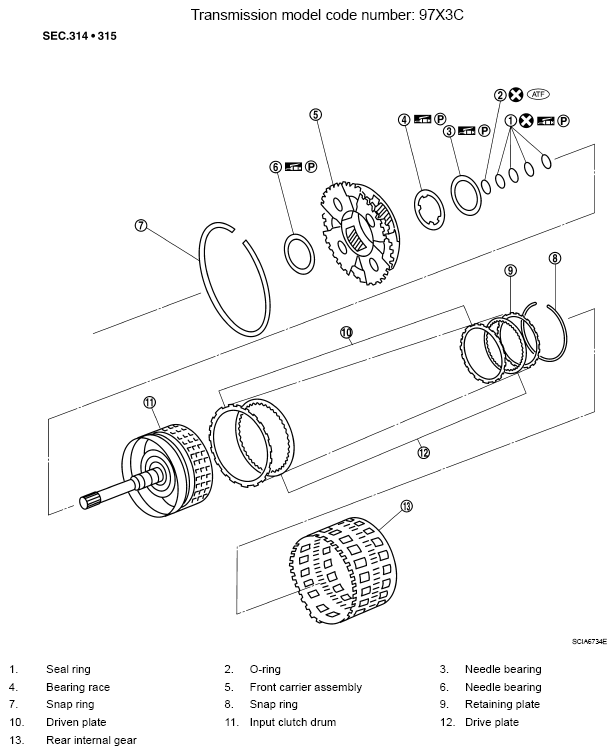

Fig 1: Exploded View Of Front Carrier, Input Clutch, Rear Internal Gear (Transmission Model Code Number: 97X3C)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.

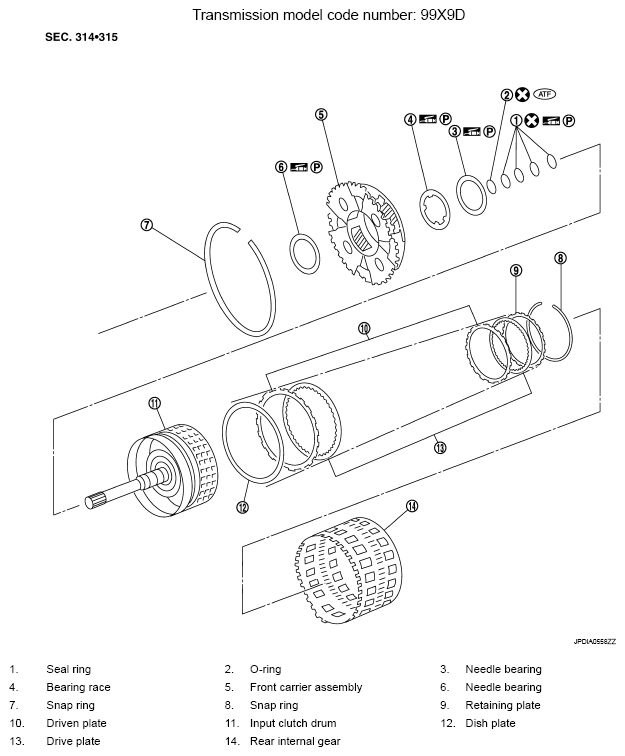

Fig 2: Exploded View Of Front Carrier, Input Clutch, Rear Internal Gear (Transmission Model Code Number: 99X9D)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
