Engine Compartment
NOTE:
For circuit wiring diagram, see POWER SUPPLY ROUTING CIRCUIT
in the POWER SUPPLY, GROUND & CIRCUIT ELEMENTS article in ELECTRICAL.

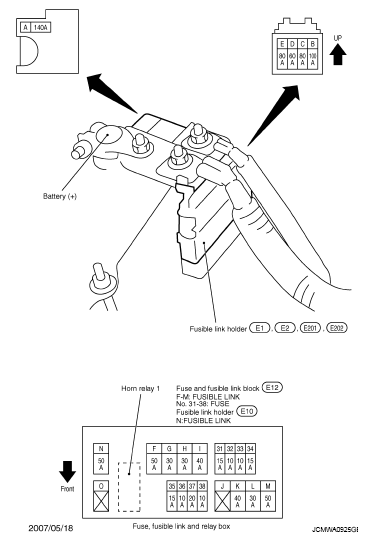

Fig 2: Identifying Engine Compartment Fusible Link Holder, Fuse and Fusible Link, & Relay Box Components
Engine Compartment Fusible Link & Fuse Assignments (Except IPDM E/R)
| Fusible Link | Amps | Circuit |
|---|---|---|
| A | 140 A | Fusible Links B, C, D, E, & Alternator |
| B | 100 A | In Fuse & Fusible Link Block: Fusible Links F - M, Fuses 31 - 38 |
| C | 80 A | In IPDM E/R: CPU, Ignition Relay, Fuses 48 - 51 |
| D | 60 A | In IPDM E/R: Tail Lamp Relay, Headlamp High/Low Relays, Fuses 58 & 60 |
| E | 80 A | In Fuse Block (J/B): ACC Relay, Rear Window Defogger Relay, Blower Relay, Fuses 5 - 11 |
| F | 50 A | Cooling Fan Relay |
| G | 30 A | Pre-Crash Seat Belt Control Unit |
| H | 30 A | IPDM E/R & Fuse Block (J/B) |
| I | 40 A | 4WAS Front Control Relay |
| J | - | Blank |
| K | 50 A | BCM, Automatic Drive Positioner Control Unit, Driver Seat Control Unit, Lumbar Support Switch, Side Support Unit, Power Seat Switch |
| L | 30 A | ABS Actuator & Electric Unit |
| M | 50 A | ABS Actuator & Electric Unit |
| N | 50 A | VVEL Actuator Motor Relay |
| Fuse | Amps | Circuit |
| Fuse 31 | 15 A | Horn Relay 1 |
| Fuse 32 | 10 A | Alternator |
| Fuse 33 | 10 A | - |
| Fuse 34 | 15 A | Display Unit, AV Control Unit, iPod Adapter, Woofer, Camera Control Unit, TEL Adapter Unit, Satellite Radio Tuner |
| Fuse 35 | 15 A | Heated Seat Relay |
| Fuse 36 | 10 A | TCM |
| Fuse 37 | 20 A | 4WAS Rear Motor Relay |
| Fuse 38 | 10 A | Horn Relay 2 |

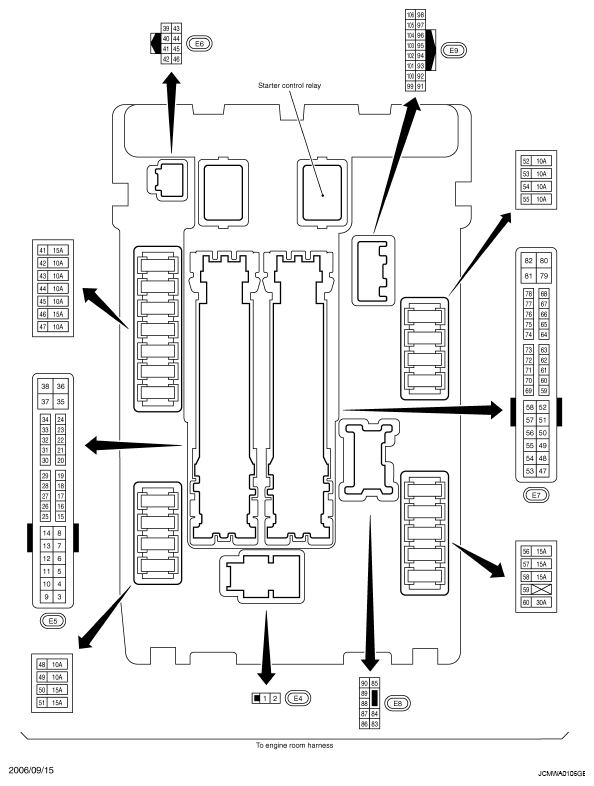

IPDM E/R Fuse, Connector And Terminal Assignments
| Fuses | Amps | Circuit |
|---|---|---|
| 41 | 15 A | Fuel Pump Relay |
| 42 | 10 A | Cooling Fan Relay |
| 43 | 10 A | TCM, Park/Neutral Position Switch |
| 44 | 10 A | Injectors 1-6, ECM, BCM |
| 45 | 10 A | ABS Actuator & Electric Unit, Steering Angle Sensor, Yaw Rate/Side G Sensor, Power Steering Control Unit, 4WAS Main Control Unit, ICC Integrated Unit |
| 46 | 15 A | Air Fuel Ratio Sensor 1 Bank 1, Air Fuel Ratio Sensor 1 Bank 2, Heated Oxygen Sensor 2 Bank 1, Heated Oxygen Sensor 2 Bank 2 |
| 47 | 10 A | Washer Pump |
| 48 | 10 A | Steering Lock Relay |
| 49 | 10 A | A/C Relay |
| 50 | 15 A | ECM, ECM Relay, CPU |
| 51 | 15 A | CPU, Throttle Control Motor Relay |
| 52 | 10 A | Front Combination Lamps (LH & RH) |
| 53 | 10 A | Rear Combination Lamps (LH & RH), License Plate Lamps (LH & RH), VDC Off Switch, Truck Lid Opener Switch, AFS Switch, Combination Switch (Spiral Cable), Multifunction Switch, Clock, AV Control Unit, Glove Box Lamp, Cigarette Lighter Socket, A/T Device, Heated Seat Switches (Driver/Pass), Door Mirror Remote Control Switch, Map Lamp |
| 54 | 10 A | Front Combination Lamp LH |
| 55 | 10 A | Front Combination Lamp RH |
| 56 | 15 A | Front Combination Lamp LH |
| 57 | 15 A | Front Combination Lamp RH |
| 58 | 15 A | Front Fog Lamp |
| 59 | - | Blank |
| 60 | 30 A | Front Wiper Relay |
