Removal and Installation: Removal

  1. Remove the front door finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the corner cover.
  3. Remove the door speaker.
  4. Operate the power window main switch to raise/lower the door window until the glass mounting bolts can be seen.
  5. Remove the glass mounting bolts.
    Fig 1: Locating Glass Mounting Bolts
    G05224656Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Raise up the door glass and hold with a suction lifter.
  7. Disconnect the harness connector for the module assembly, and remove the harness clip.
  8. Remove the module assembly mounting bolts.
  9. Remove the module assembly.

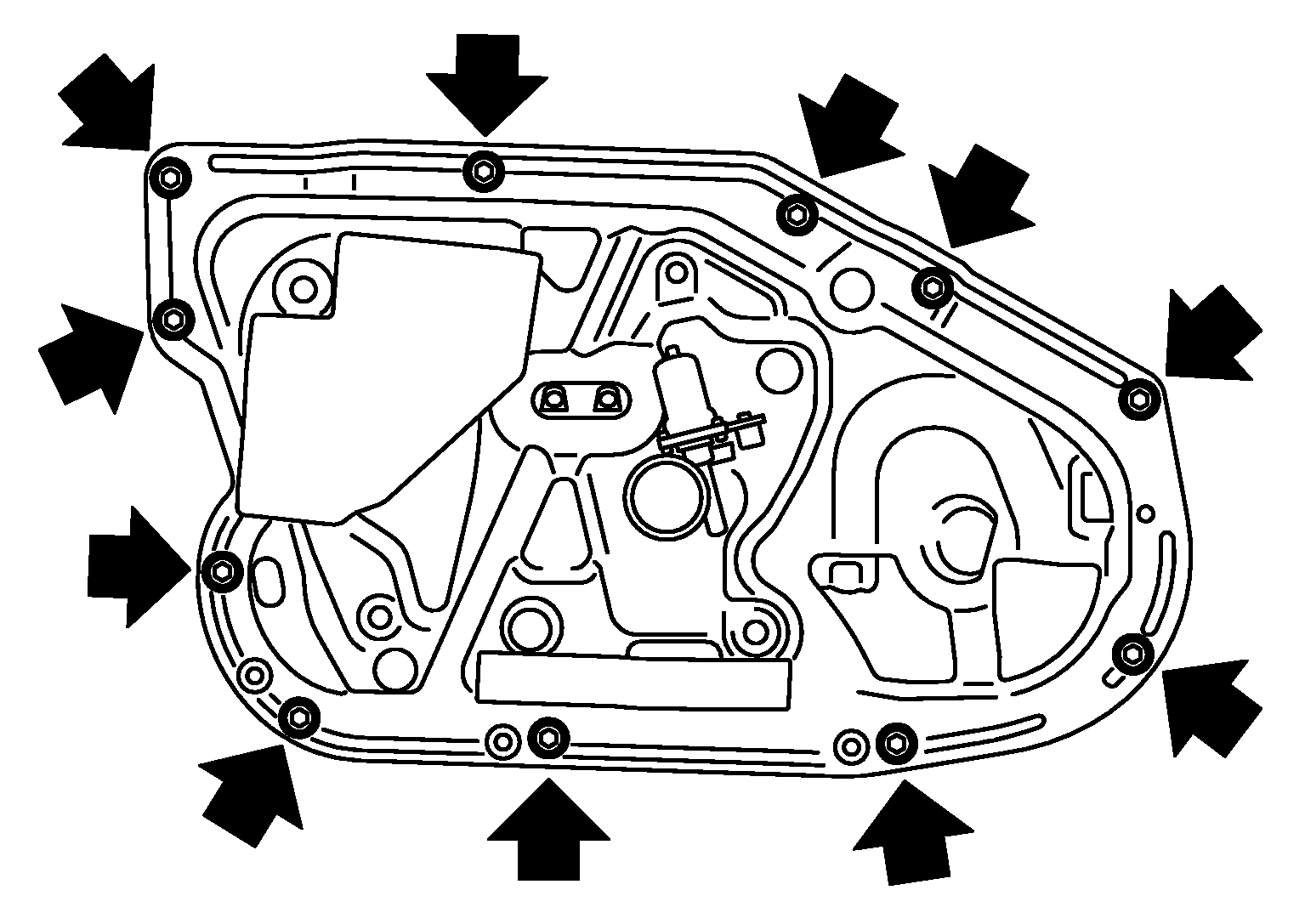

    Fig 2: Locating Module Assembly Mounting Bolts
    G05224660Courtesy of NISSAN MOTOR CO., U.S.A.
