Engine Control Systems
>>
Engine Control System - Introduction (VQ35DE)
>>
Evaporative Emission System
>>
Description
>>
Evaporative Emission Line Drawing
Evaporative Emission Line Drawing

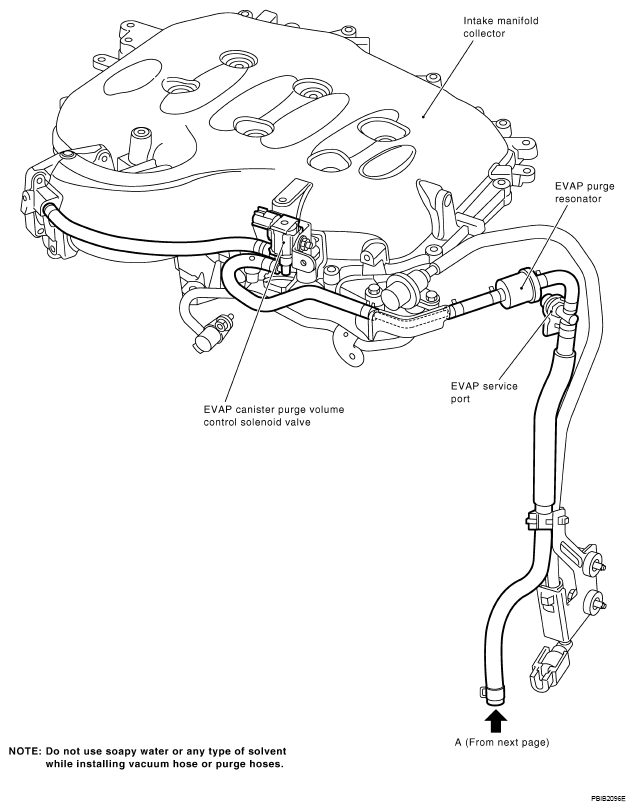

Fig 1: Identifying Intake Manifold Collector, EVAP Canister Purge Volume Control Solenoid Valve
Courtesy of NISSAN MOTOR CO., U.S.A.

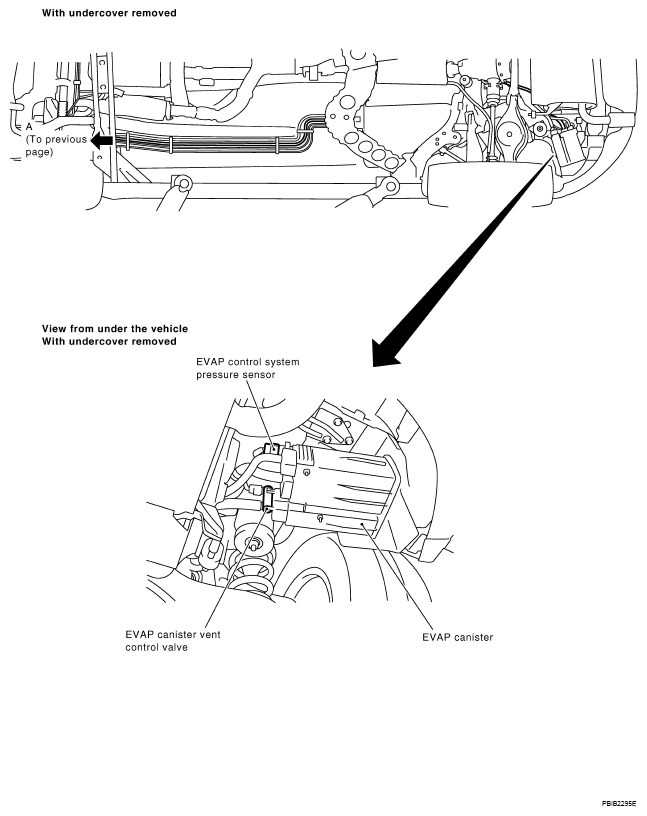

Fig 2: Identifying EVAP Control System Pressure Sensor And EVAP Canister Vent Control Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
