Engine Compartment

NOTE: For circuit wiring diagram, see POWER SUPPLY ROUTING CIRCUIT in the POWER SUPPLY, GROUND & CIRCUIT ELEMENTS article in ELECTRICAL.

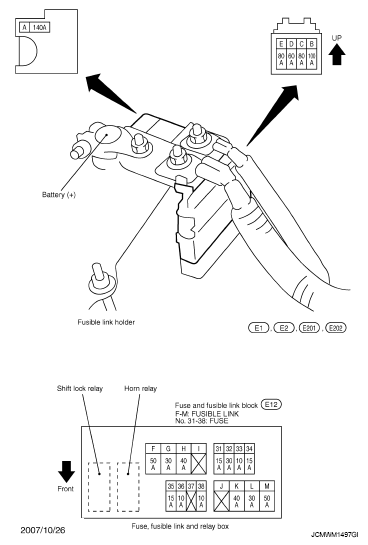

Fig 1: Identifying Fusible Link Holder, & Fuse, Fusible Link and Relay Box Arrangement

Courtesy of NISSAN MOTOR CO., U.S.A.

Fusible Link Holder Assignments

Fusible Link	Amps	Circuit
A	140 A	Starting/Charging System & Fusible Links B, C, D, E
B	100 A	In Fuse, Fusible Link and Relay Box: Fusible Links F, G, H, K, L, M, & Fuses 31-38
C	80 A	In IPDM E/R: Ignition Relay, CPU, & Fuses 48-51
D	60 A	In IPDM E/R: Tail Lamp Relay, Headlamp Relay, & Fuses 58, 60
E	80 A	In Fuse Block (J/B): Acc.Relay, Blower Relay, Rear Window Defogger Relay, & Fuses 6-11

Fuse, Fusible Link And Relay Box Assignments

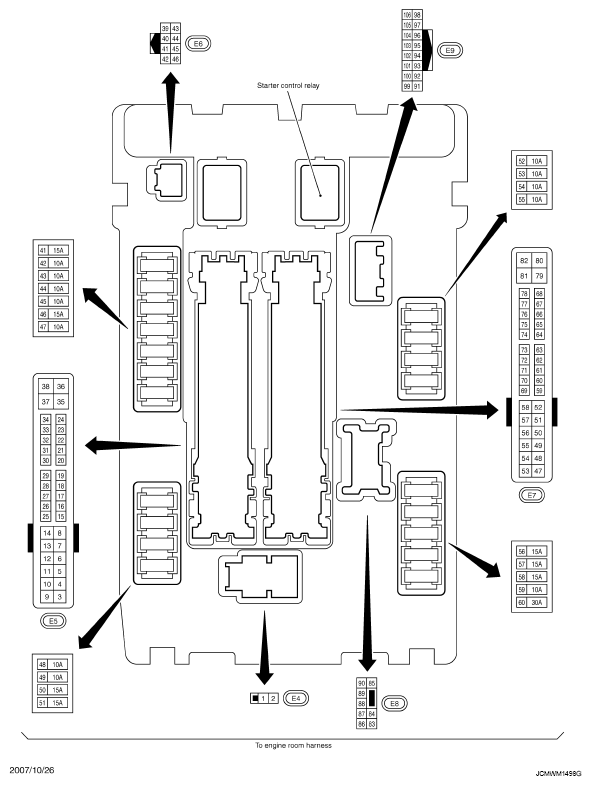

Fig 2: Identifying IPDM E/R Terminal Arrangements

Courtesy of NISSAN MOTOR CO., U.S.A.

IPDM E/R Assignments

Fuse	Amps	Circuit
41	15 A	Fuel Pump Relay
42	10 A	Cooling Fans System
43	10 A	Transmissions System
44	10 A	BCM, Engine Controls System
45	10 A	ABS, Electronic Power Steering, Engine Controls, Transmissions, Exterior Lights Systems
46	15 A	Engine Controls System
47	10 A	Instrument Cluster
48	10 A	Steering Lock Relay
49	10 A	A/C Relay
50	15 A	ECM Relay, Engine Controls System
51	15 A	CPU, Throttle Control Motor Relay
52	10 A	Headlights, Exterior Lights Systems
53	10 A	Headlights, Exterior Lights, Instrument Cluster, Sound, Seats, Interior Lights, Defogger, Transmissions, Mirrors Systems
54	10 A	Headlights, Exterior Lights Systems
55	10 A	Headlights, Exterior Lights Systems
56	15 A	Headlights, Exterior Lights Systems
57	15 A	Headlights, Exterior Lights Systems
58	15 A	Front Fog Lamp Relay
59	10 A	-
60	30 A	Front Wiper Relay
