Home >> Infiniti >> 2007 >> QX56 AWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Front Suspension >> Knuckle >> Removal and Installation >> Notes

Removal and Installation: Notes

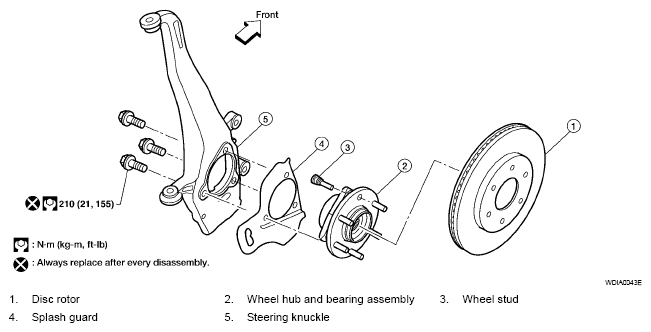

Fig 1: Identifying Knuckle Components

G05230352
