Home >> Infiniti >> 2007 >> QX56 AWD >> Repair and Diagnosis >> Steering >> Power Steering System >> Power Steering Gear And Linkage >> Removal and Installation >> Notes

Removal and Installation: Notes

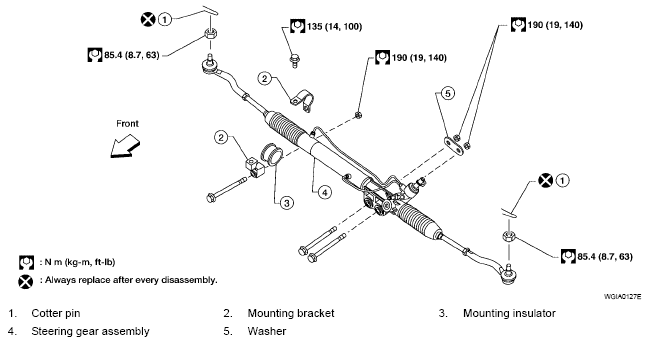

Fig 1: Power Steering Gear And Linkage With Torque Specifications
G05230584
CAUTION: Spiral cable may snap due to steering operation if steering column is separated from steering gear assembly. Therefore secure steering wheel to avoid turning.
