Door Switch Check

CHECK DOOR SWITCHES INPUT SIGNAL

With CONSULT-II

Check door switches ("DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR", "BACK DOOR SW") in DATA MONITOR mode with CONSULT-II. Refer to "DATA MONITOR ".

When doors are open:
DOOR SW-DR : ON

DOOR SW-AS : ON

DOOR SW-RL : ON

DOOR SW-RR : ON

BACK DOOR SW : ON
When doors are closed:
DOOR SW-DR : OFF

DOOR SW-AS : OFF

DOOR SW-RL : OFF

DOOR SW-RR : OFF

BACK DOOR SW : OFF

Fig 1: CONSULT-II Display - Data Monitor

Without CONSULT-II

Check voltage between BCM connector M18 or M19 terminals 12, 13, 43, 47, 48 and ground.

CONNECTOR TERMINAL VOLTAGE CHART

Connector	Item	Terminals		Condition	Voltage (V) (Approx.)
Connector	Item	(+)	(-)	Condition	Voltage (V) (Approx.)
M19	Back door latch (door ajar switch)	43	Ground	Open ↓ Closed	0 ↓ Battery voltage
	Front door switch LH	47
	Rear door switch LH	48
M18	Front door switch RH	12
M18	Rear door switch RH	13

Fig 2: Checking Voltage Between BCM Connector M18 Or M19 Terminals 12, 13, 43, 47, 48 And Ground

OK or NG

OK: Door switch circuit is OK.

NG: GO TO 2.

CHECK DOOR SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door switch and BCM.

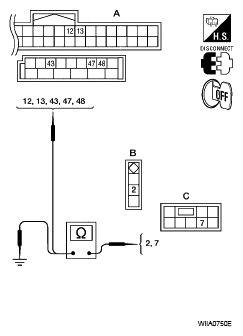

3. Check continuity between door switch connector (B) B8 (front LH), B108 (front RH), B18 (rear LH), B116 (rear RH) terminal 2 or back door latch connector (C) D503 terminal 7 and BCM connectors (A) M18, M19 terminals 12, 13, 43, 47 and 48.
  2 - 12 : Continuity should exist.

  2 - 13 : Continuity should exist.

  2 - 47 : Continuity should exist.

  2 - 48 : Continuity should exist.

  7 - 43 : Continuity should exist.
4. Check continuity between door switch connector (B) B8 (front LH), B108 (front RH), B18 (rear LH), B116 (rear RH) terminal 2 or back door latch connector (C) D503 terminal 7 and ground.
  2 - Ground : Continuity should not exist.

  7 - Ground : Continuity should not exist.

  OK or NG
OK: GO TO 3.

NG: Repair or replace harness.

Fig 3: Checking Continuity Between Door Switch Connector Terminal 2, 7 And Ground
CHECK DOOR SWITCHES
FRONT AND REAR DOORS

Check continuity between front or rear door switch terminal 2 and exposed metal of switch while pressing and releasing switch.

Door switch is released : Continuity should exist.

Door switch is pushed : Continuity should not exist.

Fig 4: Checking Continuity Between Front Or Rear Door Switch Terminal 2 And Pressing And Releasing Switch

BACK DOOR

Check continuity between back door latch connector (A) D503 terminals 7 and 8 while pressing (closing back door) and releasing (opening back door) switch.

When back door is open : Continuity should exist.

When back door is closed : Continuity should not exist.

OK or NG

OK: (Front and rear doors) Switch circuit is OK.

OK: (Back door) GO TO 4.

NG: Replace door switch.

Fig 5: Checking Continuity Between Back Door Latch Connector D503 Terminals 7 And 8
CHECK BACK DOOR SWITCH GROUND
Check continuity between back door latch connector terminal 8 and ground.

8 - Ground : Continuity should exist.

OK or NG

OK: Back door switch circuit is OK.

NG: Repair or replace harness.

Fig 6: Checking Continuity Between Back Door Latch Connector Terminal 8 And Ground
