LEMON Manuals: Even more car manuals for everyone

Home >> Infiniti >> 2007 >> M35 Base >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belts >> Pre-Crash Seat Belt >> Schematic

Pre-Crash Seat Belt: Schematic

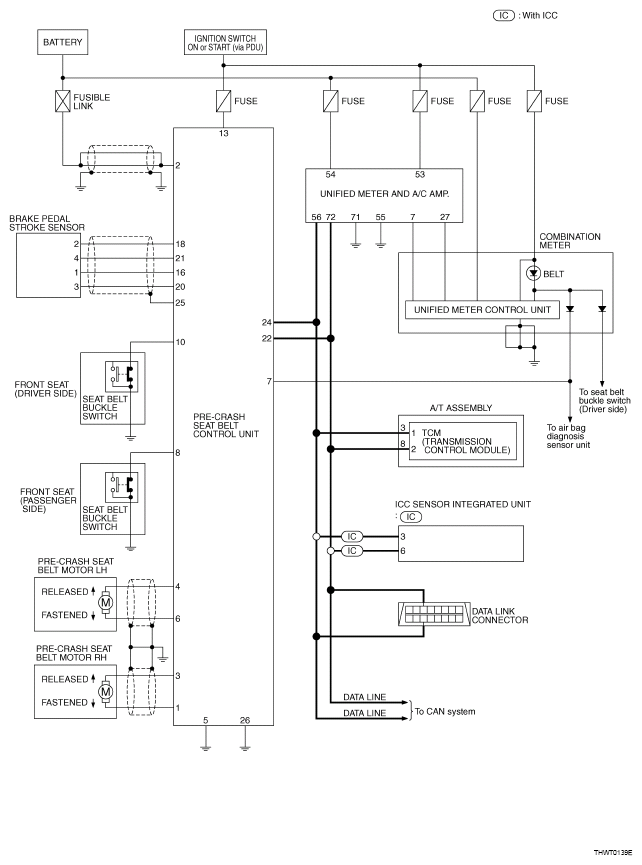

Fig 1: Pre-Crash Seat Belts - Schematic Diagram

G05213828
