Removal and Installation: Components

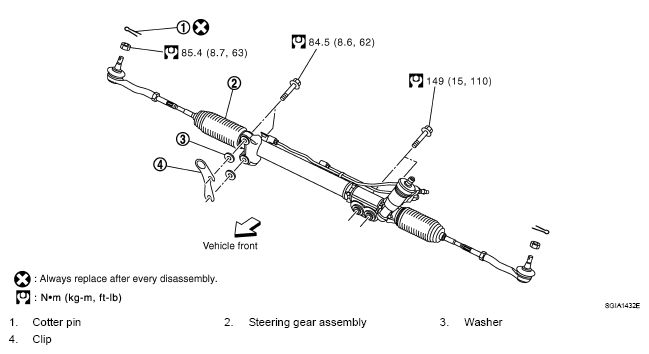

Fig 1: Power Steering Gear And Linkage Replacement Components With Torque Specifications

CAUTION: Spiral cable may snap due to steering operation if steering column is separated from steering gear assembly. Therefore fix steering wheel with a string to avoid turns.
