Home >> Infiniti >> 2006 >> QX56 AWD >> Repair and Diagnosis >> Brakes >> Parking Brake System >> Parking Brake Control >> Components

Parking Brake Control: Components

For MA, go to MAINTENANCE .

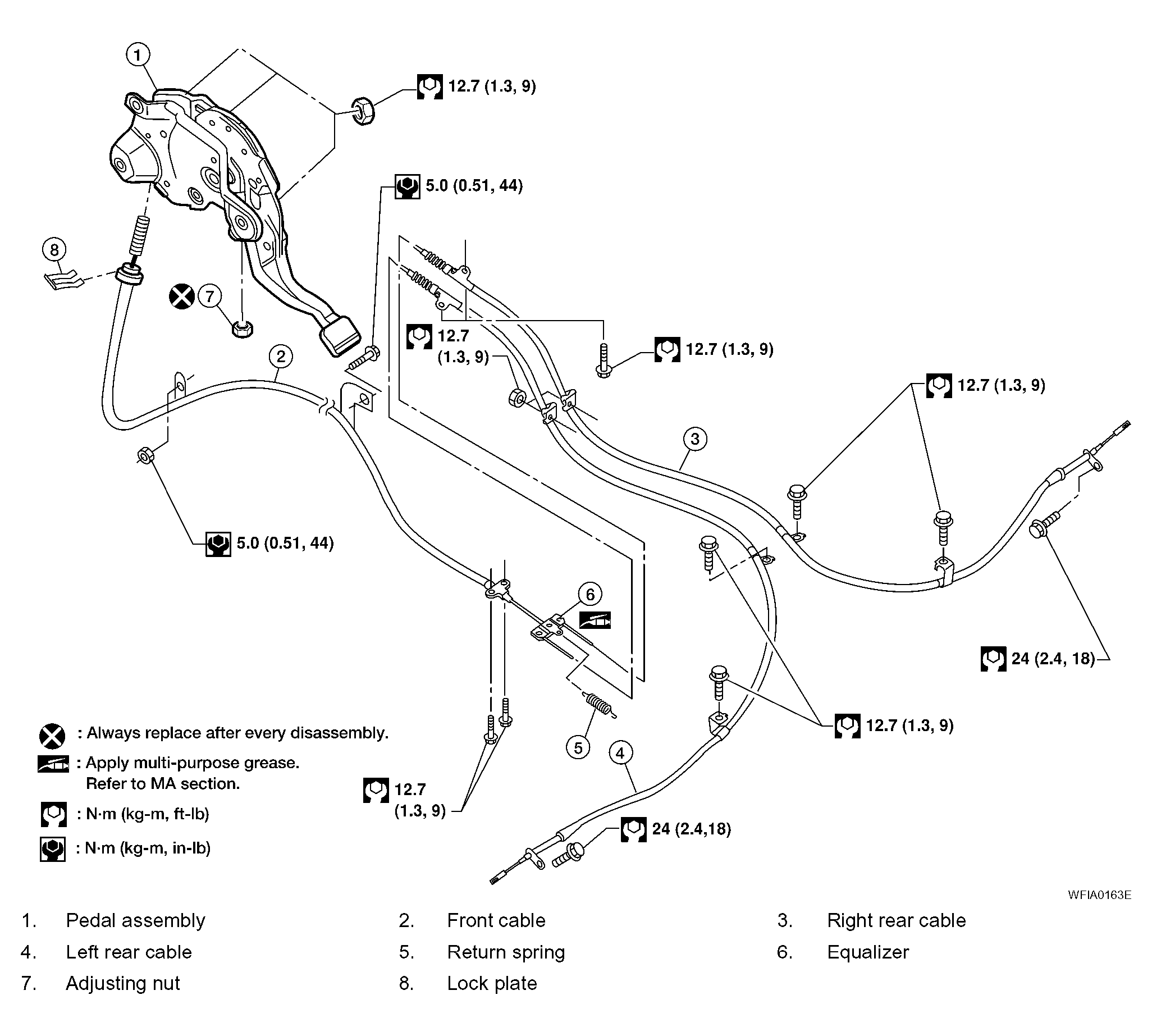

Fig 1: Parking Brake Control Replacement Components With Torque Specifications

G04134730

Courtesy of NISSAN MOTOR CO., U.S.A.
