Switch Monitor: Description

In this mode, when BCM detects the input signal from a switch in IVMS as shown below, the detection is indicated by the map lamp and step lamps with buzzer.

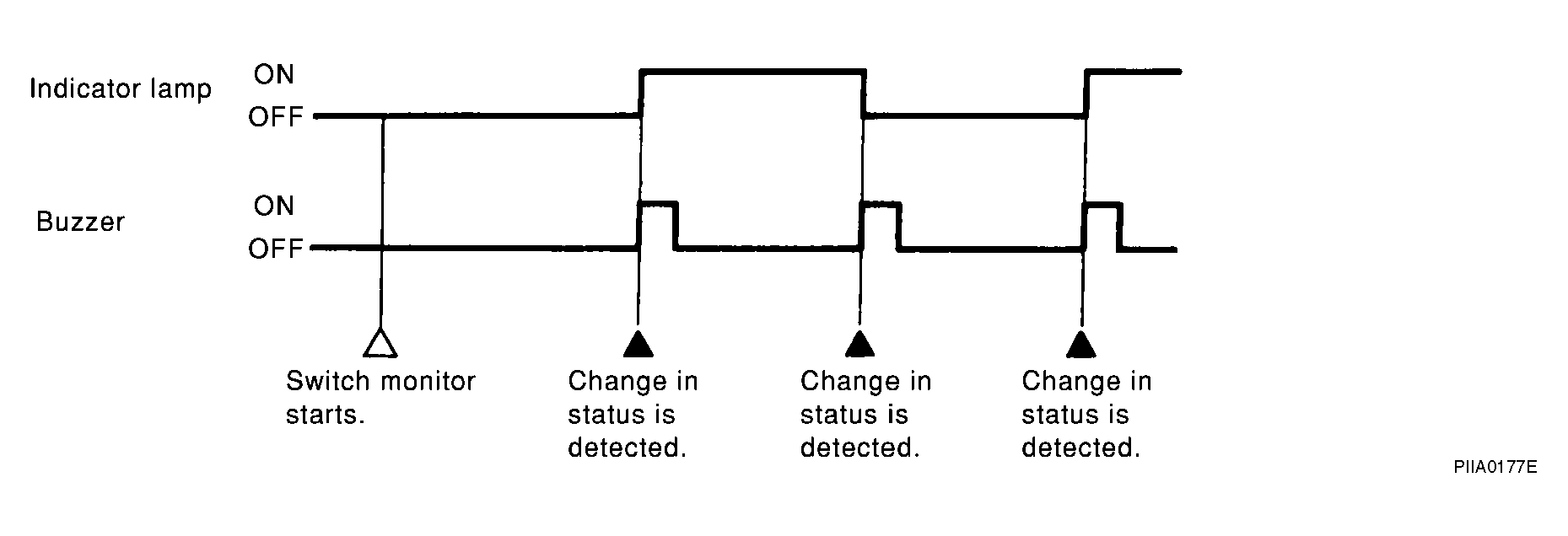

Fig 1: Identifying Indicator Lamp On/Off Position

Courtesy of NISSAN MOTOR CO., U.S.A.
