Sleep Control

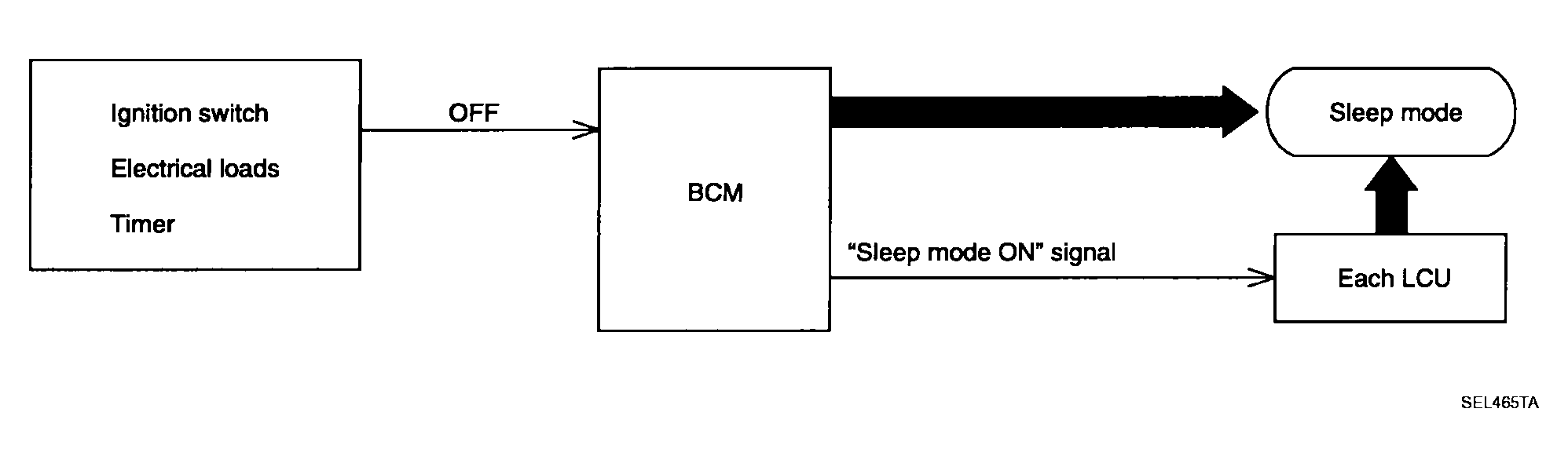

Fig 1: Identifying IVMS (LAN) Sleep Control Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

"Sleep control" prevents unnecessary power consumption. After the following conditions are met, the BCM suspends the communication between itself and all LCUs. The whole IVMS is set in the "sleep" mode.

• Ignition switch "OFF"
• All electrical loads (in the IVMS) "OFF"
• Timer "OFF"
