Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Lubrication System (VK45DE)
>>
Lubrication System
>>
System Chart
System Chart

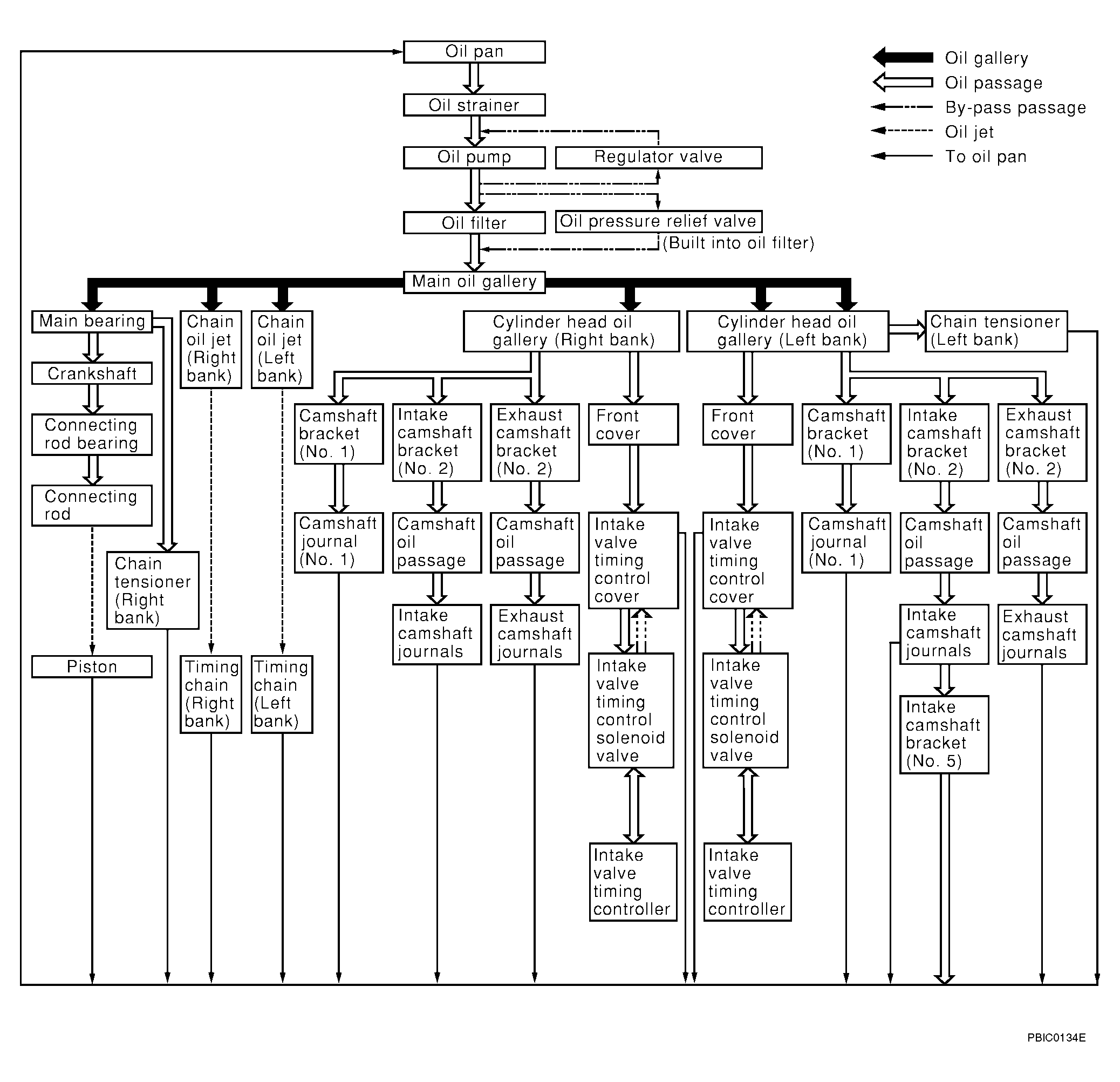

Fig 1: Identifying Lubrication System Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
