Removal and Installation: Components

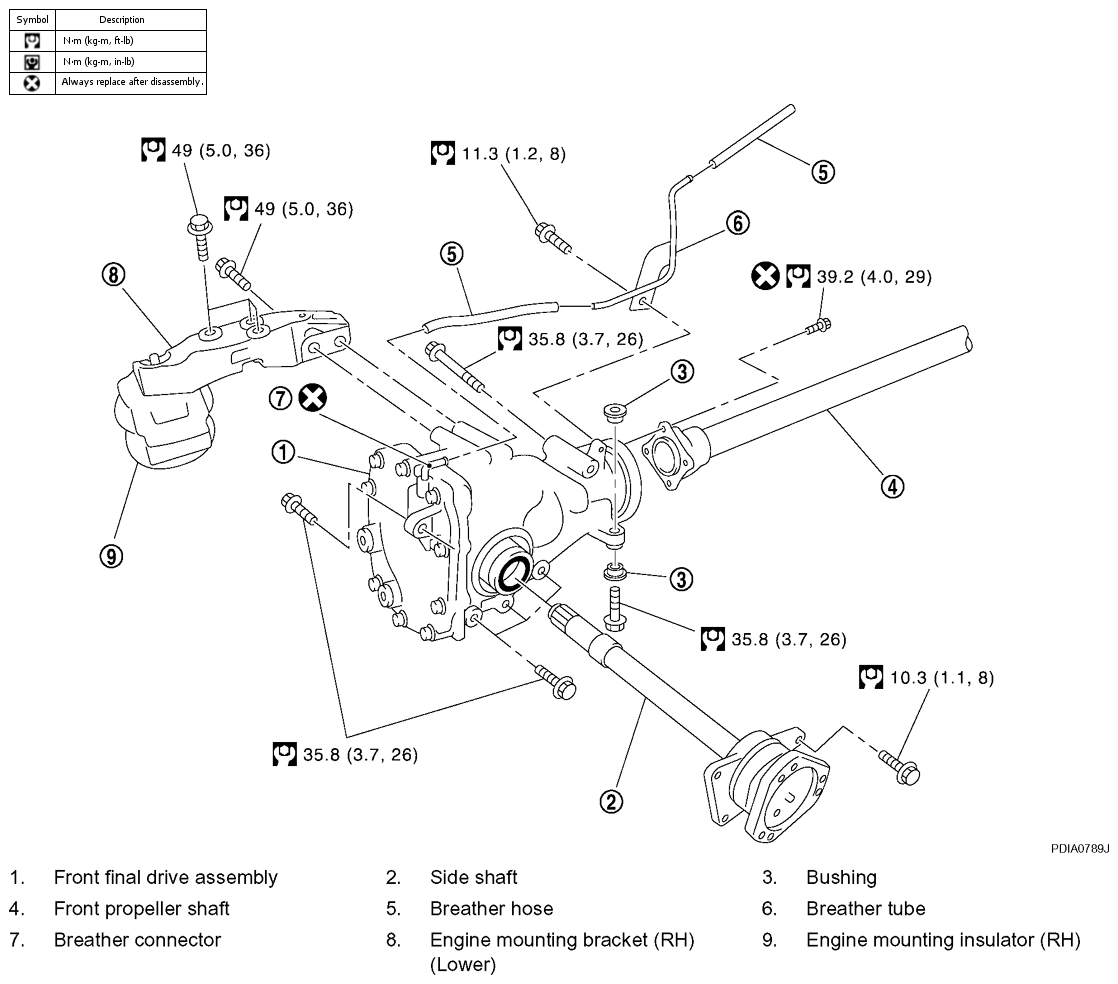

Fig 1: Front Final Drive Assembly With Torque Specifications

G04144370

Courtesy of NISSAN MOTOR CO., U.S.A.
