Power Seat Switch Ground Circuit Check

1. Turn ignition switch OFF.
2. Disconnect power seat switch connector.
3. Check continuity between power seat switch connector and ground.

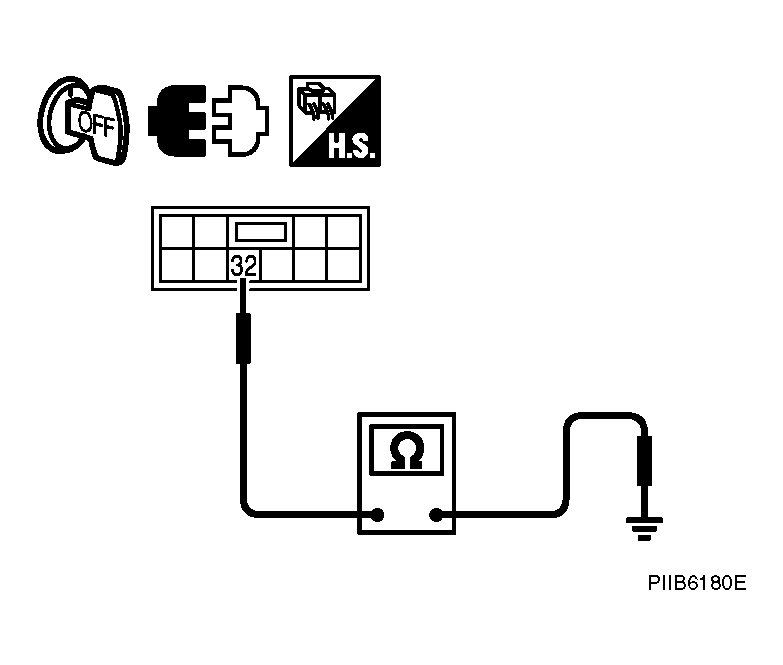

Fig 1: Identifying Continuity Between Power Seat Switch Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace driver seat control unit.

NG: Repair or replace harness.
