RGB Screen Is Rolling

CHECK HARNESS
1. Disconnect AV (NAVI) control unit connector and front display unit connector.
2. Check continuity between AV (NAVI) control unit harness connector (A) M210 terminal 45 and front display unit harness connector (B) M203 terminal 3.
  45 - 3: Continuity should exist.
3. Check continuity between AV (NAVI) control unit harness connector (A) M210 terminal 45 and ground.
  45 - Ground: Continuity should not exist.
OK or NG

OK: GO TO 2.

NG: Repair harness or connector.

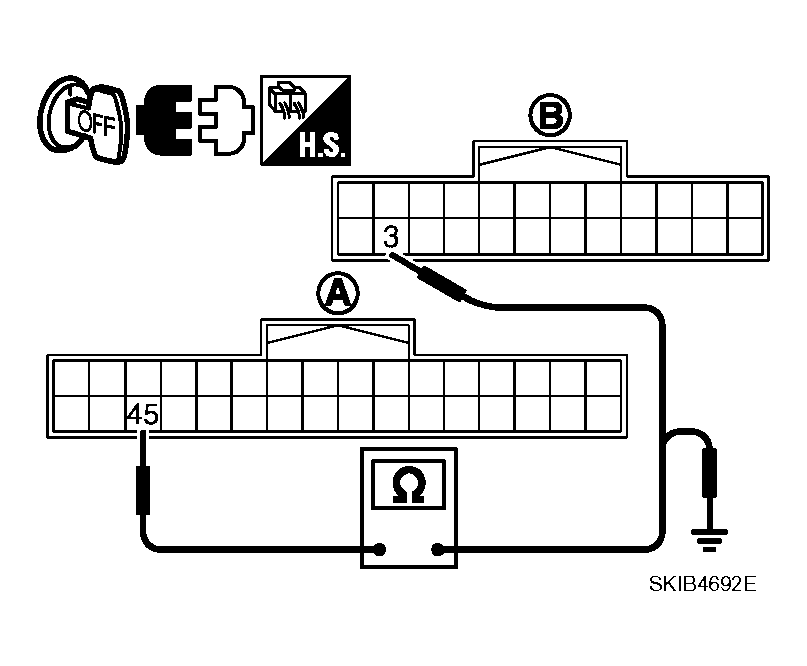

Fig 1: Identifying Continuity Between AV (NAVI) Control Unit Harness Connector (A) M210 Terminal 45 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK RGB SIGNAL (G: GREEN)
1. Connect AV (NAVI) control unit connector and front display unit connector.
2. Turn ignition switch ON.
3. Start Confirmation/Adjustment mode. Refer to "CONFIRMATION/ADJUSTMENT MODE ".
4. Display color bar by selecting "Display Color Spectrum Bar" on DISPLAY DIAGNOSIS screen. Refer to "DISPLAY DIAGNOSIS ".
5. Check signal between AV (NAVI) control unit harness connector M210 terminal 45 and ground.
  45 - Ground:

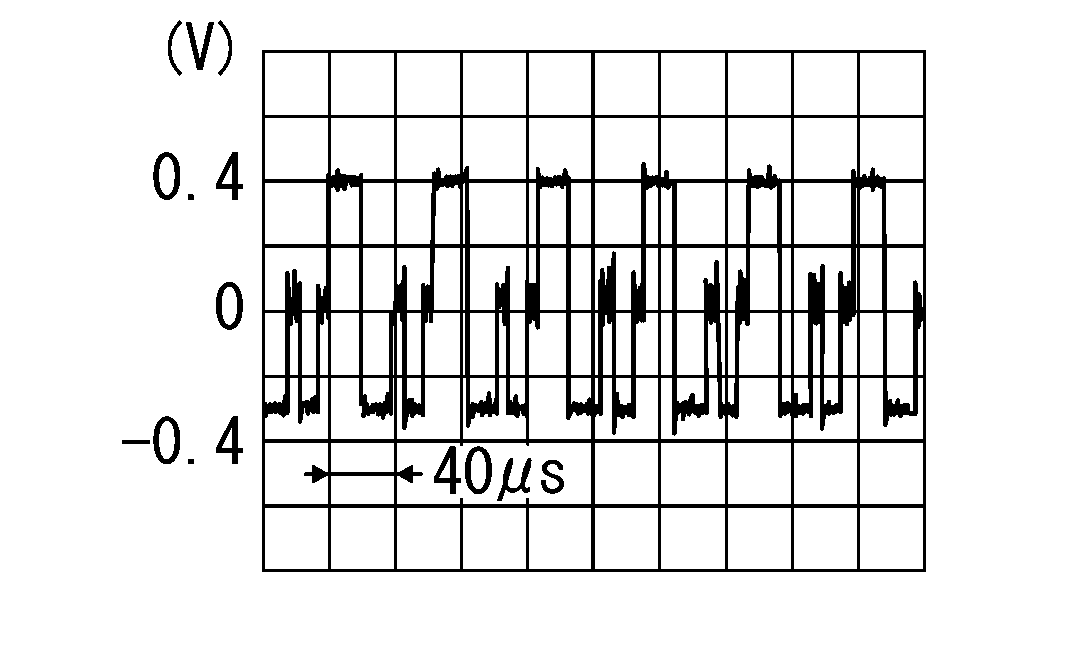

  Fig 2: Signal Waveform Graph
  Courtesy of NISSAN MOTOR CO., U.S.A.

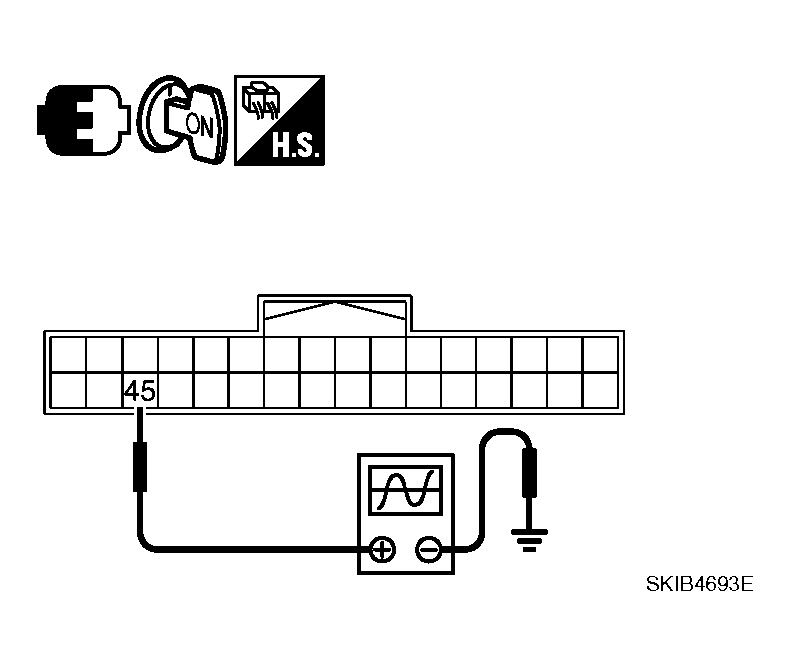

  Fig 3: Identifying Signal Between AV (NAVI) Control Unit Harness Connector M210 Terminal 45 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK: Replace front display unit.

NG: Replace AV (NAVI) control unit.
