Camera Control Unit: Removal

  1. Remove trunk side finisher (RH). Refer to "REMOVAL AND INSTALLATION FOR TRUNK ROOM TRIM ".
  2. Remove screws (A) and disconnect connector, and remove rear view camera control unit (1).

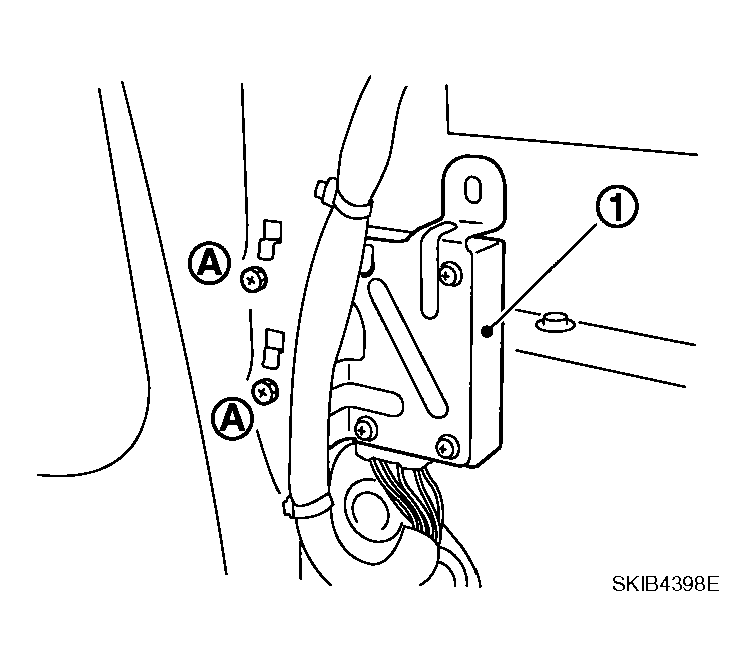

    Fig 1: Identifying Rear View Camera Control Unit
    G04142827Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (A) and remove bracket (1).

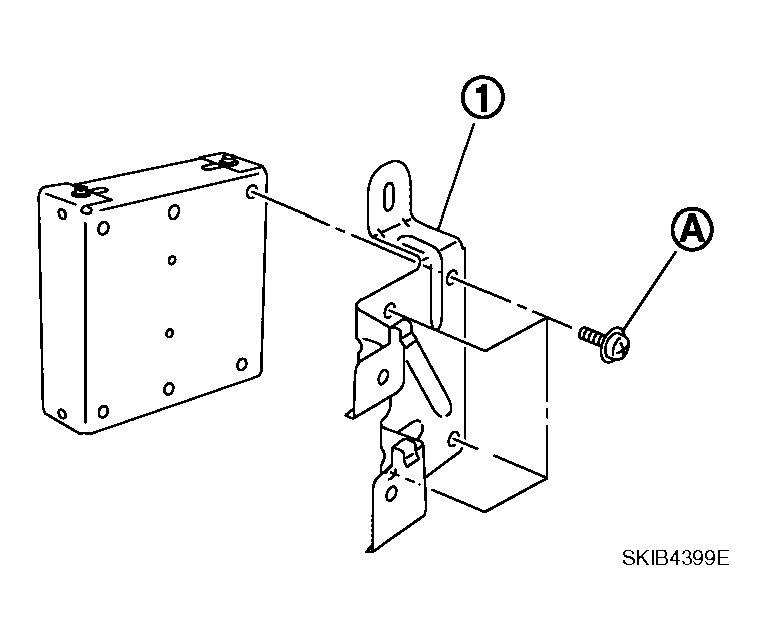

Fig 2: Identifying Bracket
G04142828Courtesy of NISSAN MOTOR CO., U.S.A.
