All Signals

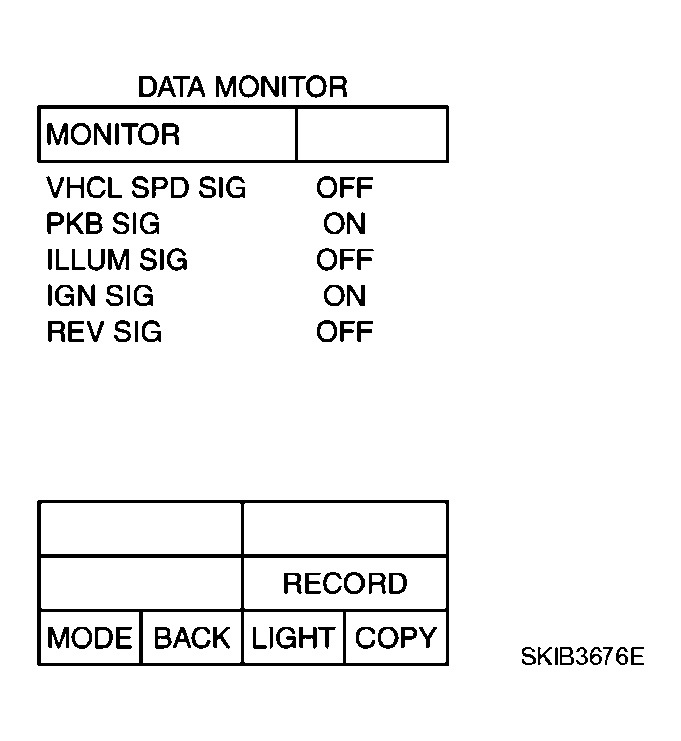

- When "ALL SIGNALS" is selected and "START" is touched, the following vehicle signal condition that is input to AV (NAVI) control unit is displayed.
- For each signal, a comparison of actual operating status and the status recognized by the system can be checked.
Display Condition
DISPLAY CONDITION
| Display Item | Display | Vehicle status | Remarks |
|---|---|---|---|
| VHCL SPD SIG | ON | Vehicle speed > 0 km/h (0 MPH) | Changes in indication may be delayed. This is normal. |
| OFF | Vehicle speed = 0 km/h (0 MPH) | ||
| PKB SIG | ON | Parking brake is applied. | |
| OFF | Parking brake is released. | ||
| ILLUM SIG | ON | Light switch ON | - |
| OFF | Light switch OFF | ||
| IGN SIG | ON | Ignition switch ON | - |
| OFF | Ignition switch in ACC position | ||
| REV SIG | ON | Selector lever in R position | Changes in indication may be delayed. This is normal. |
| OFF | Other than selector lever in R position |
