System Diagram

Type 1

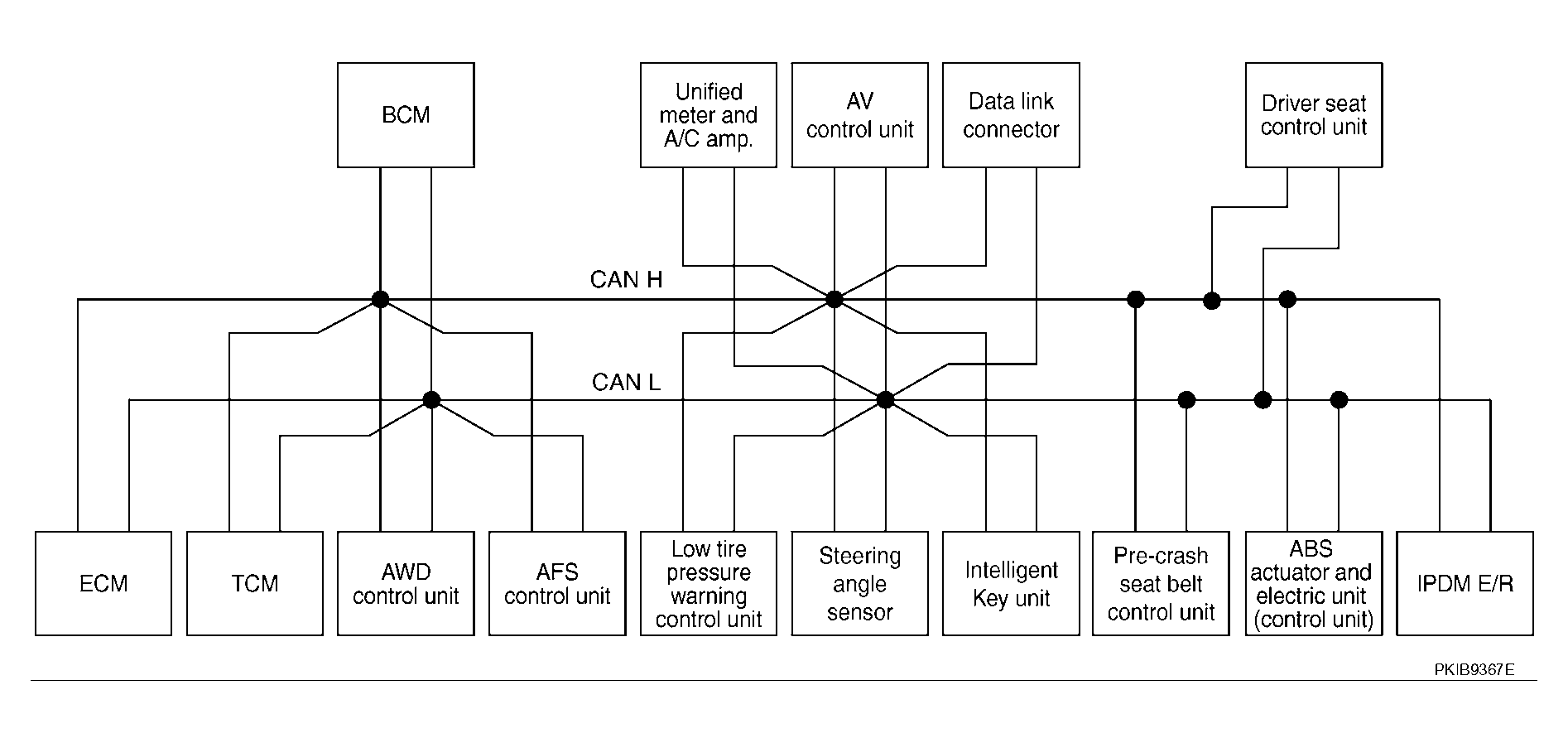

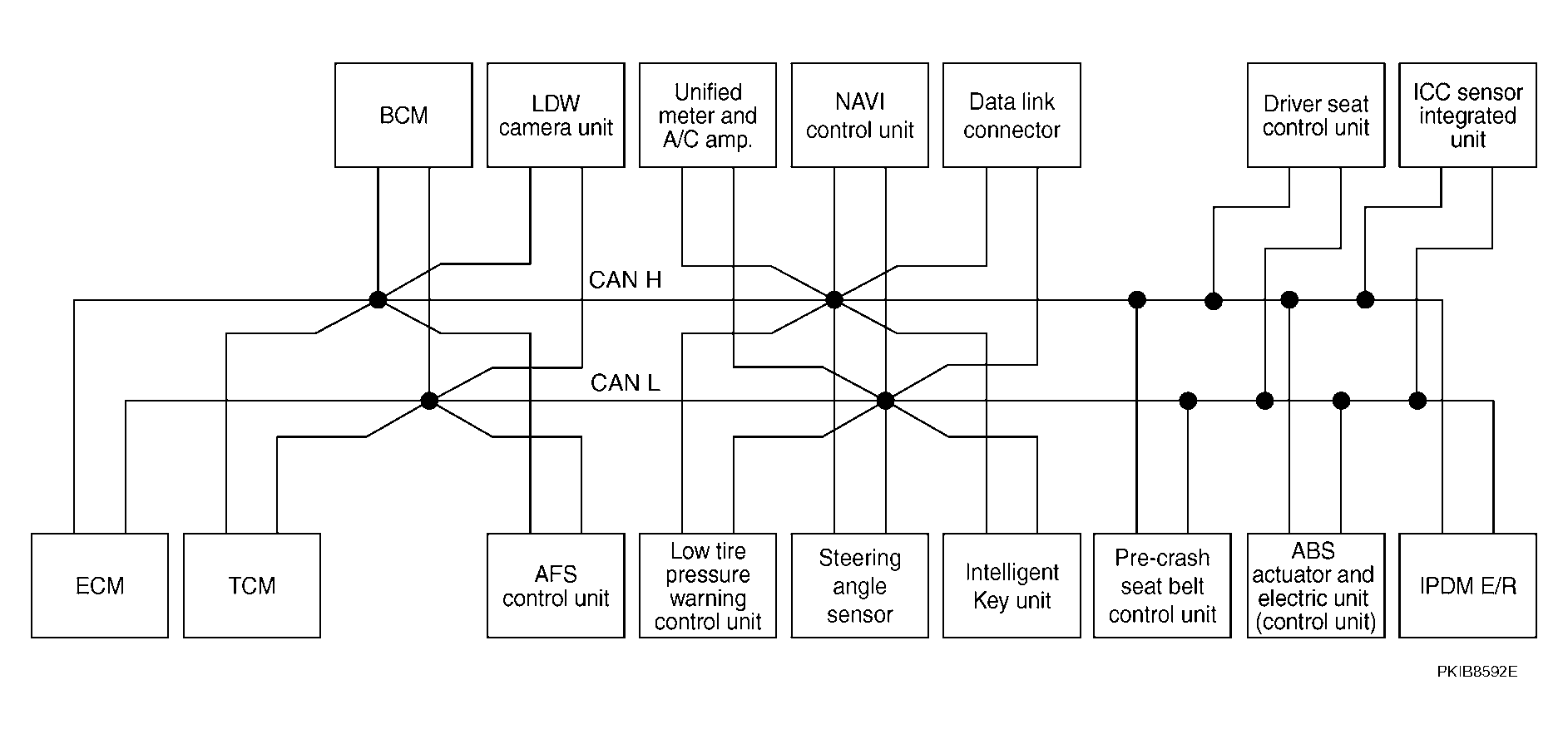

Fig 1: Can Communication Unit - System Diagram (Type 1)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 2

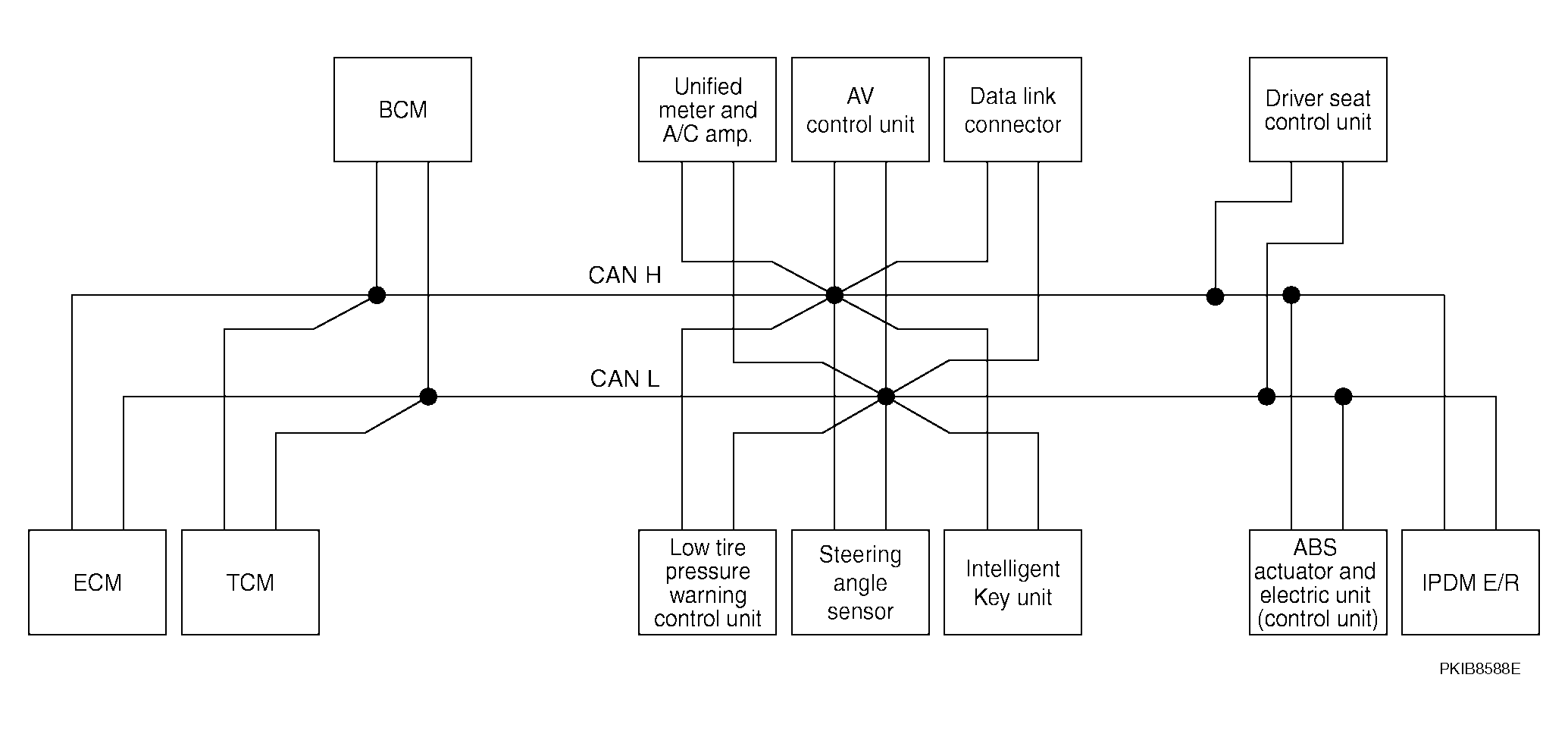

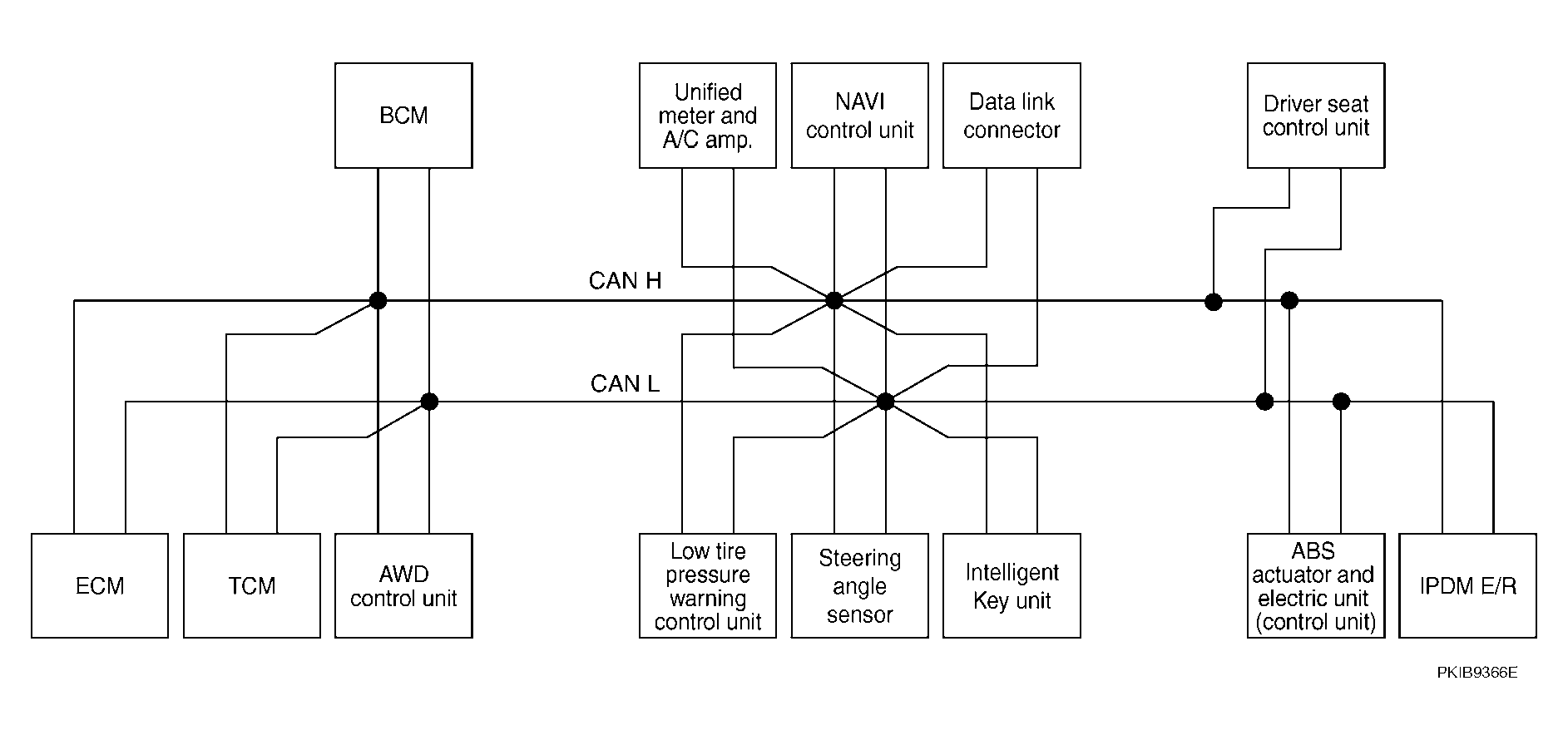

Fig 2: Can Communication Unit - System Diagram (Type 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 3

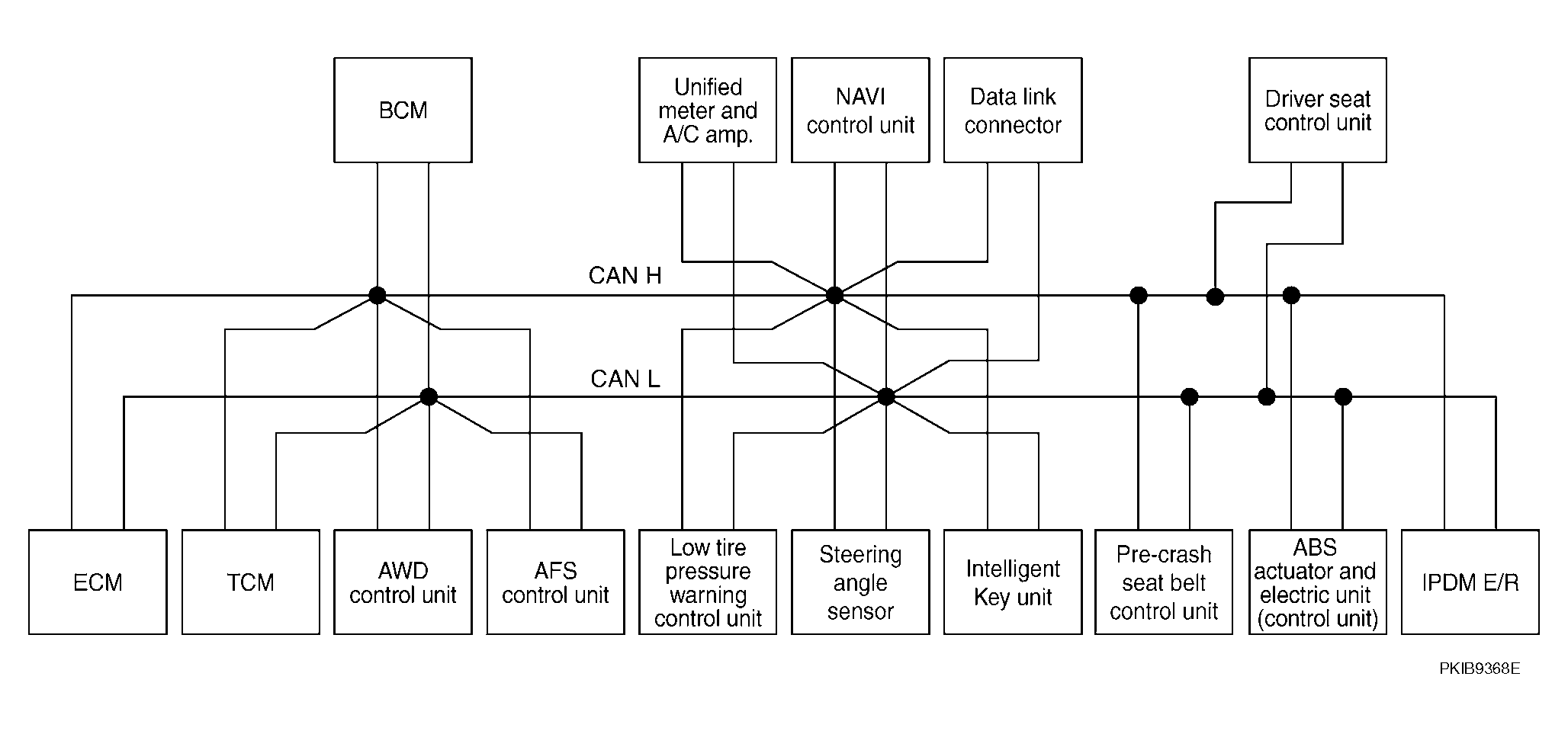

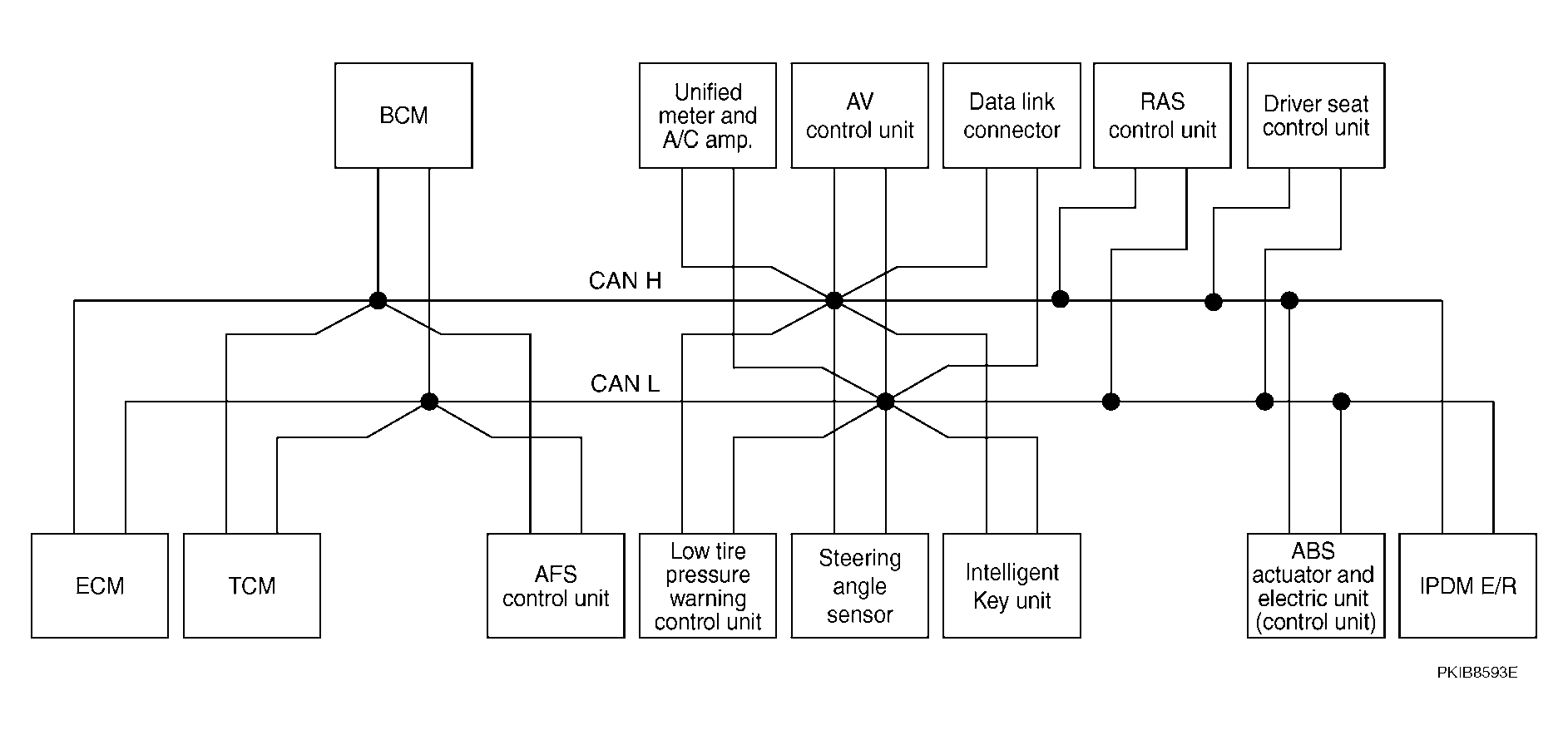

Fig 3: Can Communication Unit - System Diagram (Type 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 4

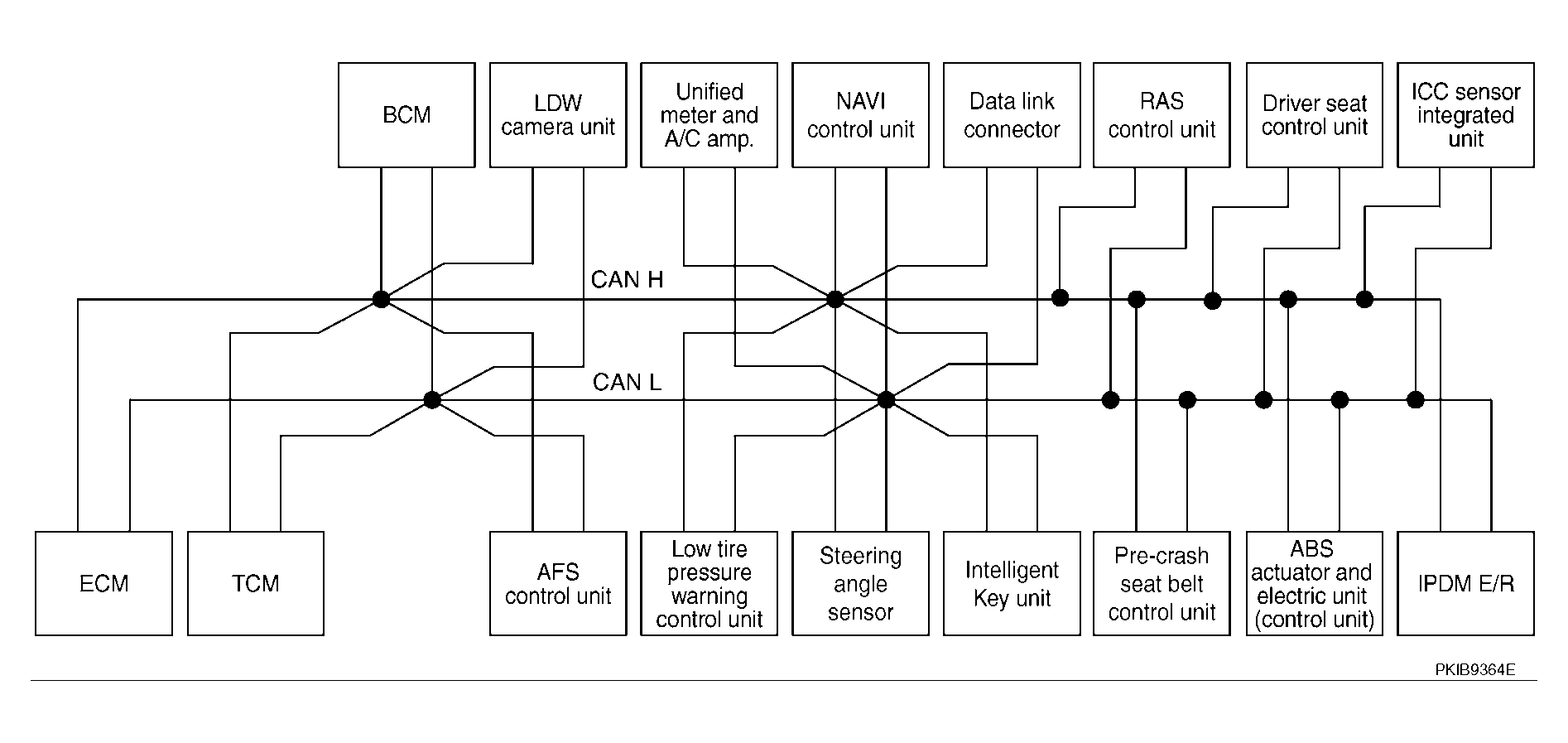

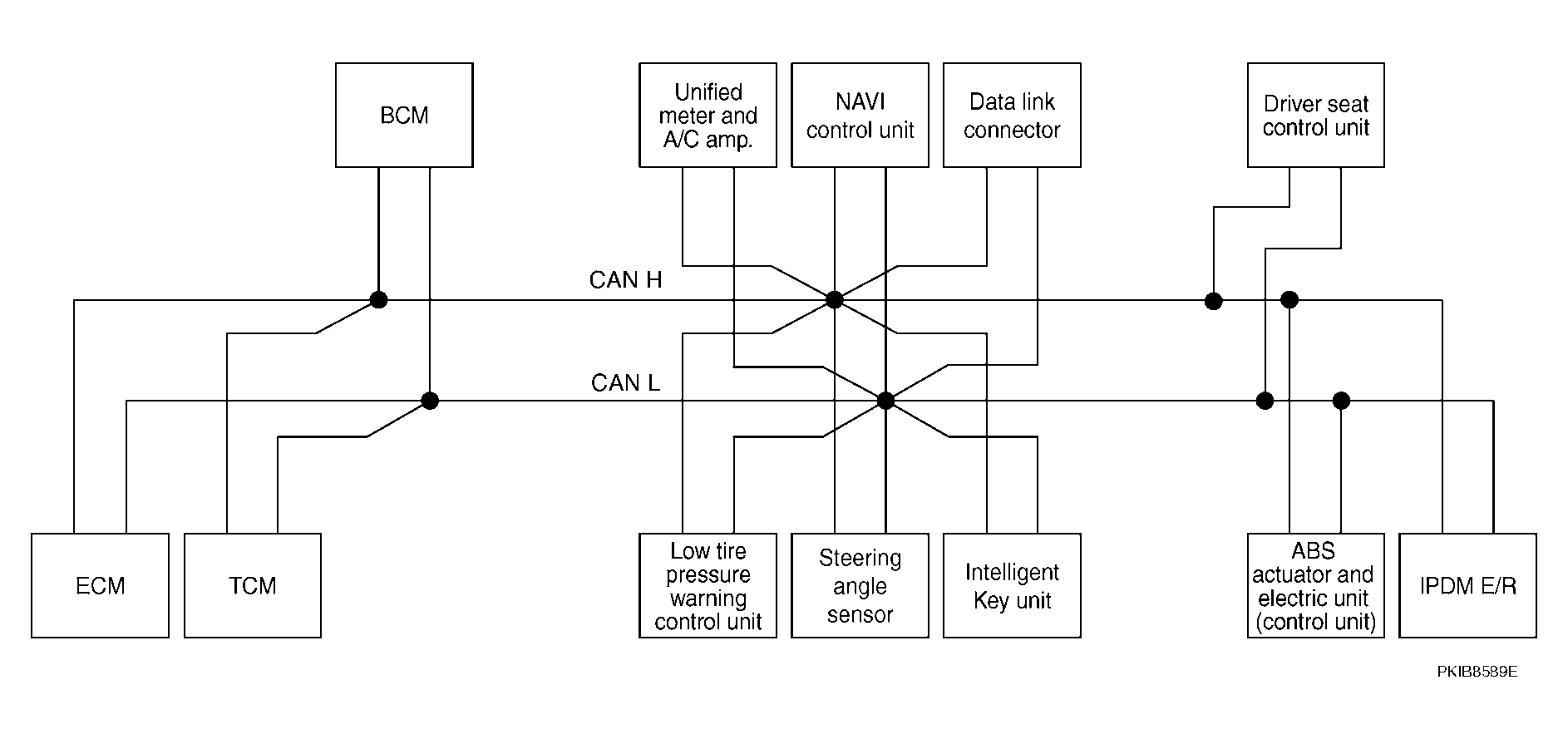

Fig 4: Can Communication Unit - System Diagram (Type 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 5

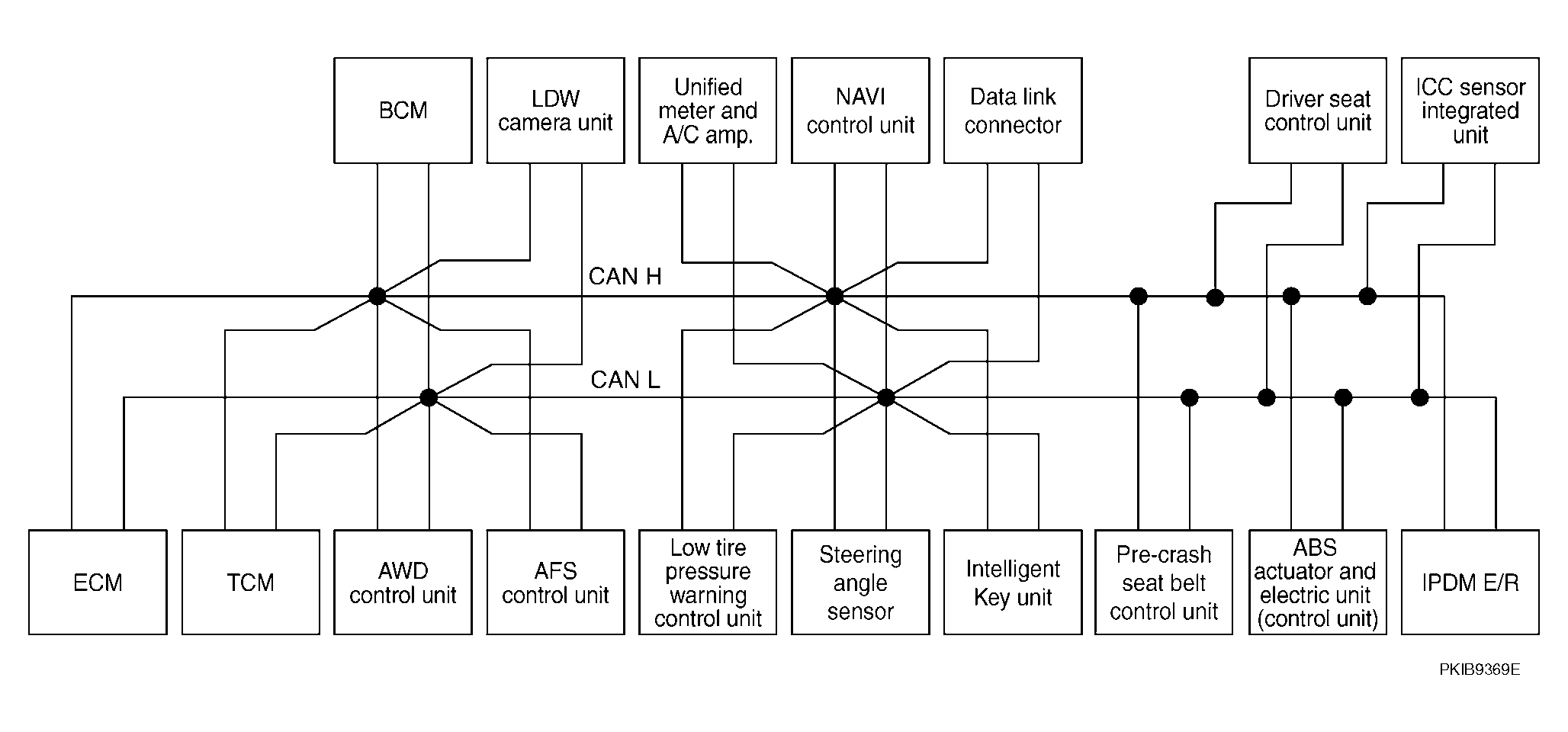

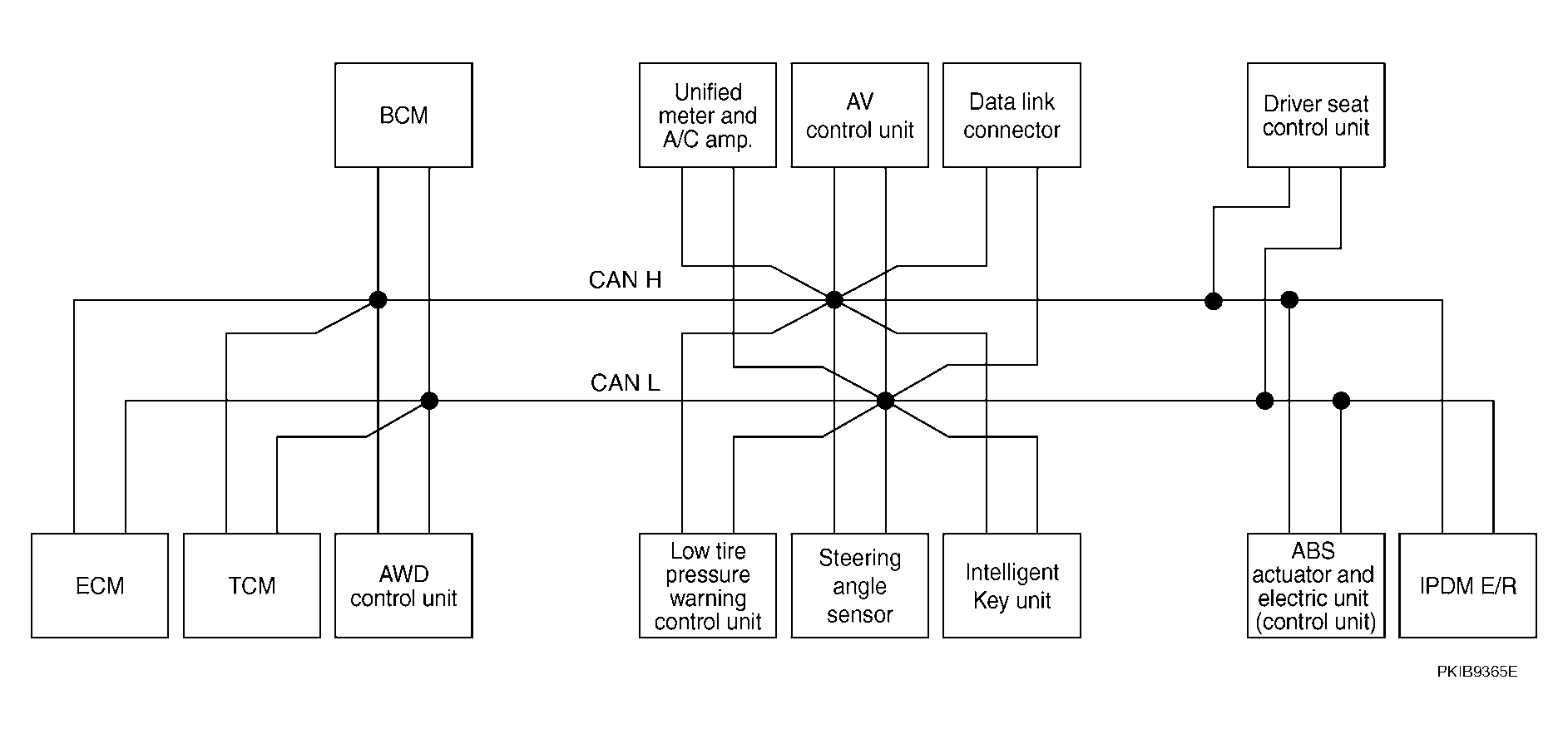

Fig 5: Can Communication Unit - System Diagram (Type 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 6

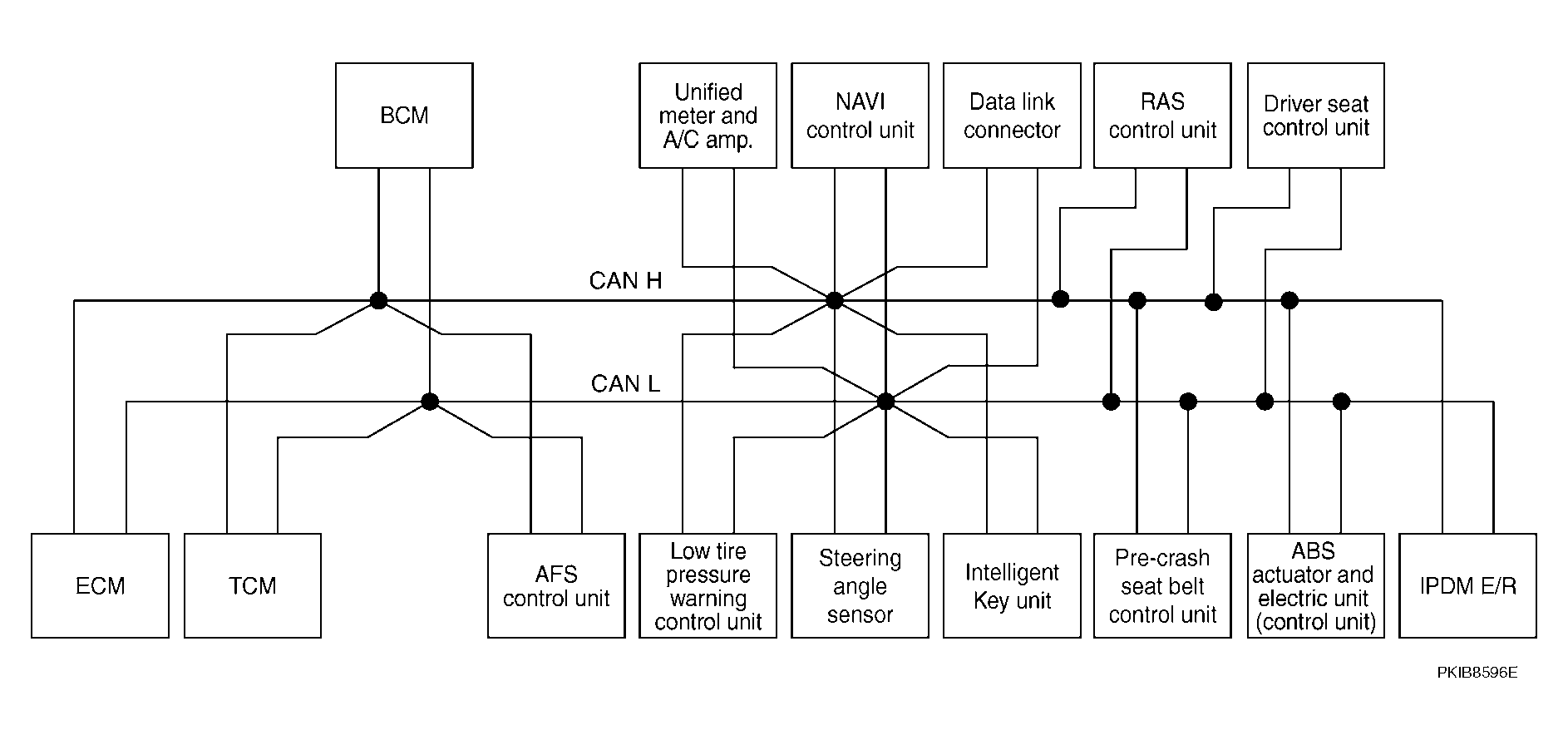

Fig 6: Can Communication Unit - System Diagram (Type 6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 7

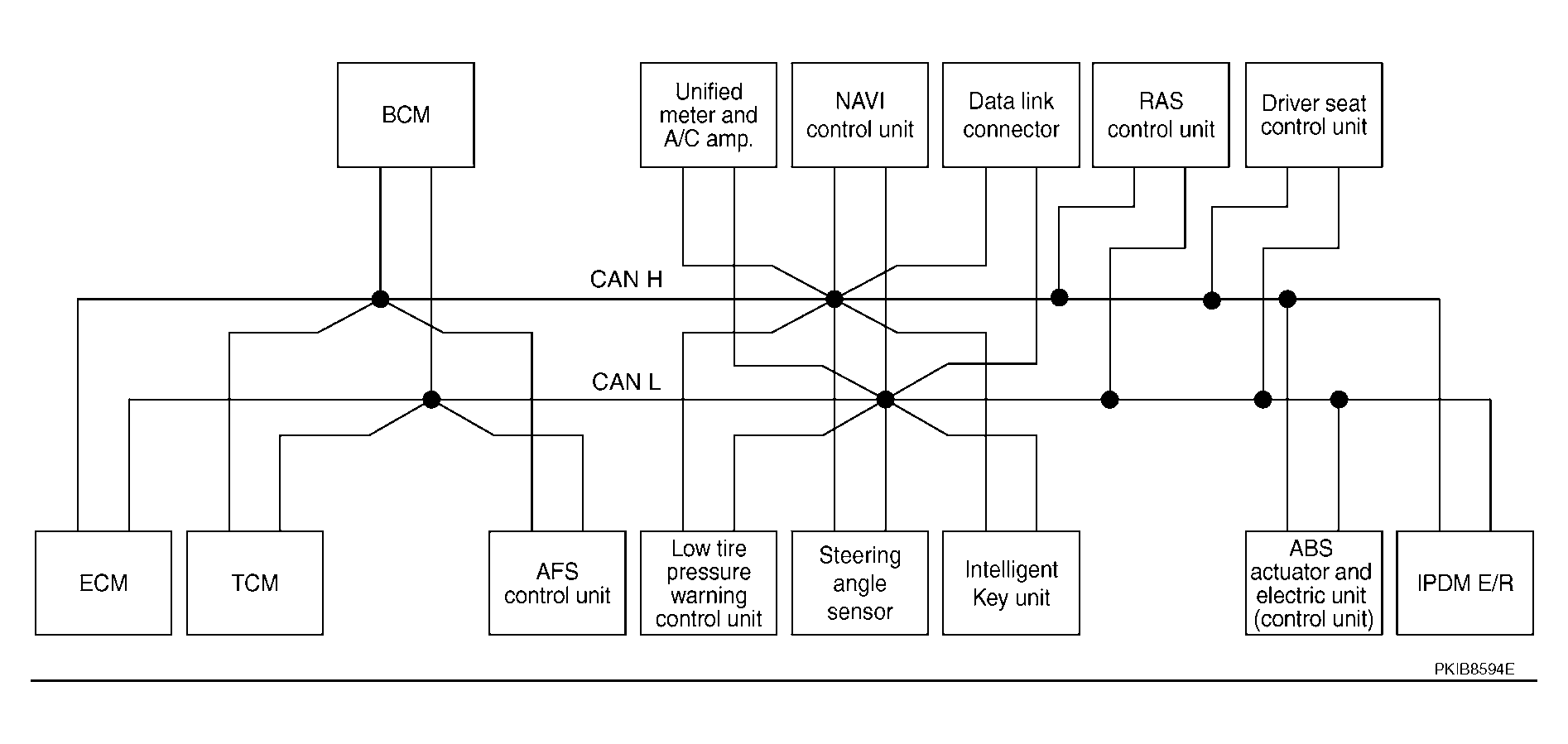

Fig 7: Can Communication Unit - System Diagram (Type 7)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 8

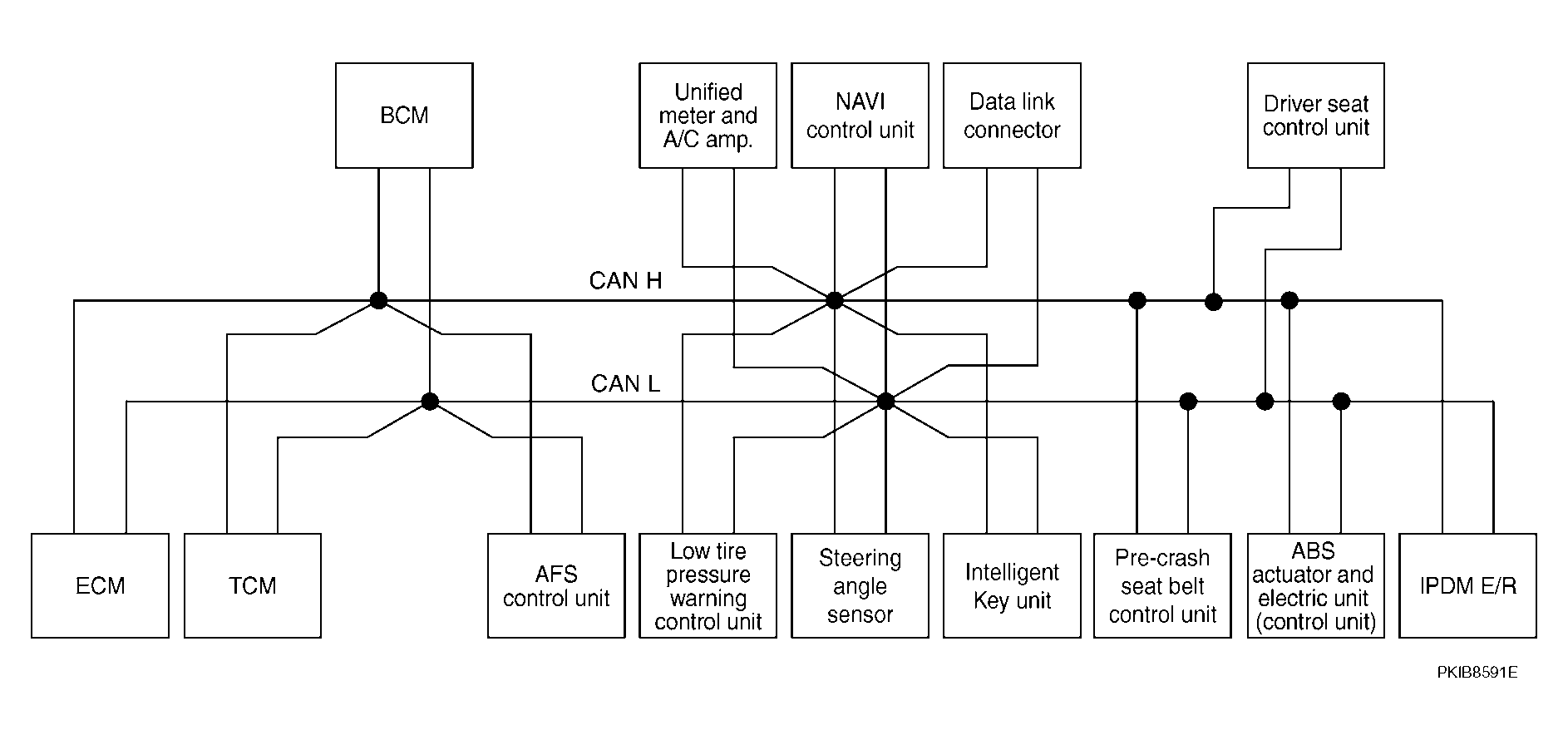

Fig 8: Can Communication Unit - System Diagram (Type 8)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 9

Fig 9: Can Communication Unit - System Diagram (Type 9)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 10

Fig 10: Can Communication Unit - System Diagram (Type 10)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 11

Fig 11: Can Communication Unit - System Diagram (Type 11)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 12

Fig 12: Can Communication Unit - System Diagram (Type 12)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 13

Fig 13: Can Communication Unit - System Diagram (Type 13)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 14

Fig 14: Can Communication Unit - System Diagram (Type 14)
Courtesy of NISSAN MOTOR CO., U.S.A.
Type 15

Fig 15: Can Communication Unit - System Diagram (Type 15)

Courtesy of NISSAN MOTOR CO., U.S.A.
