Removal and Installation (AWD Models): Inspection

Installation and Inspection of Torque Converter

• After inserting a torque converter to a A/T, be sure to check distance "A" to ensure it is within the reference value limit.

  Distance "A"

  VQ35DE models : 25.0 mm (0.98 in) or more

  VK45DE models : 22.0 mm (0.87 in) or more

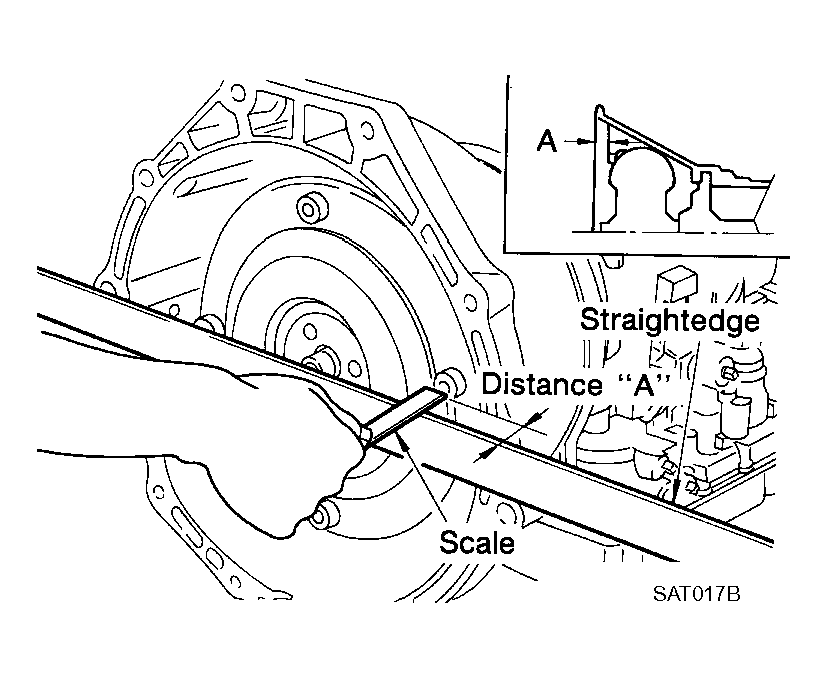

  Fig 1: Checking Distance A

  Courtesy of NISSAN MOTOR CO., U.S.A.
