Engine Control System - Introduction (VK45DE)
>>
Trouble Diagnosis
>>
Symptom Matrix Chart
>>
System - Engine Mechanical & Other
System - Engine Mechanical & Other

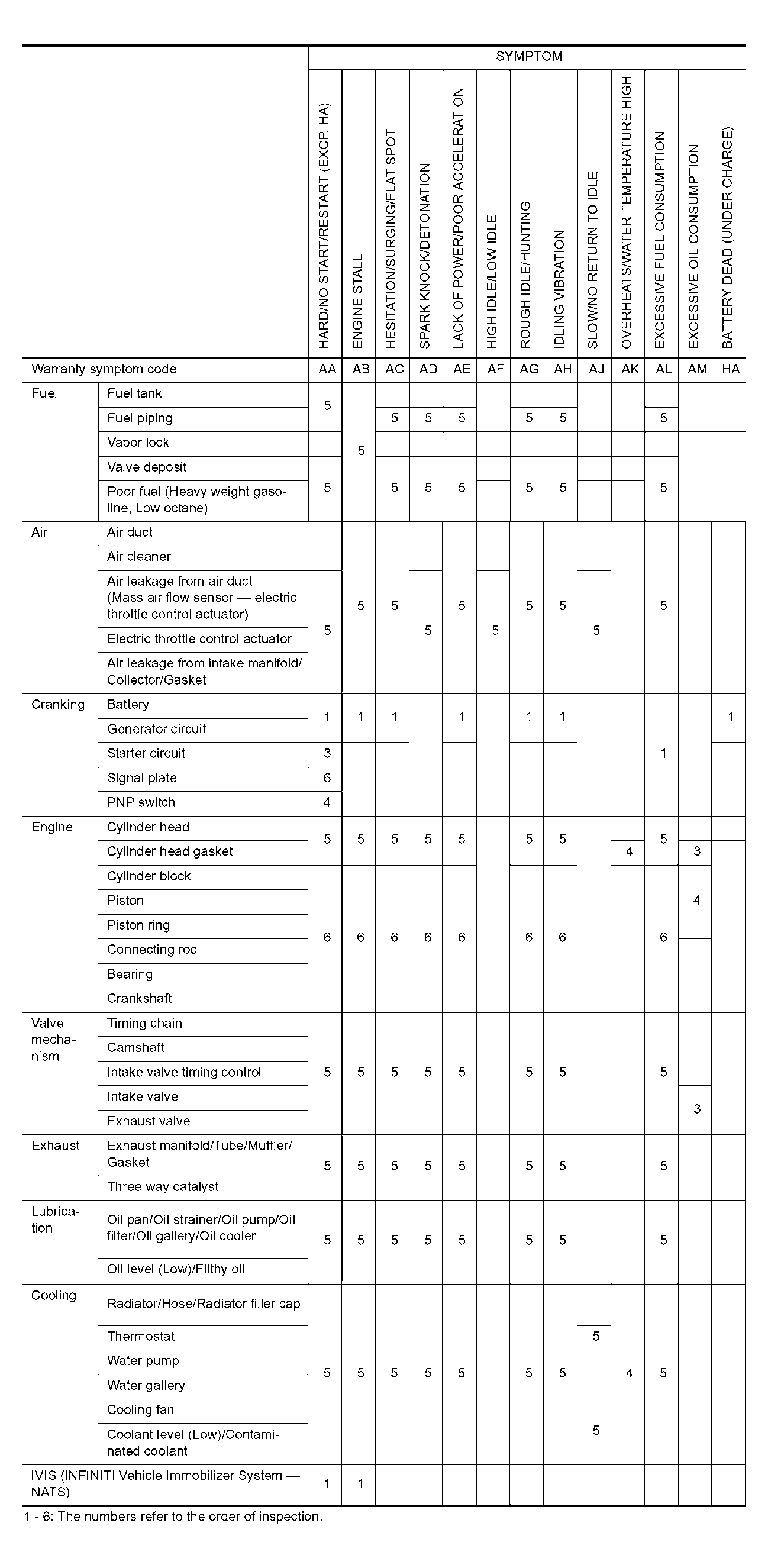

Fig 1: Symptom Matrix Chart - Engine Mechanical & Other
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
