Trouble Diagnosis - Specification Value
>>
Diagnostic Procedure
>>
Overall Sequence
Overall Sequence

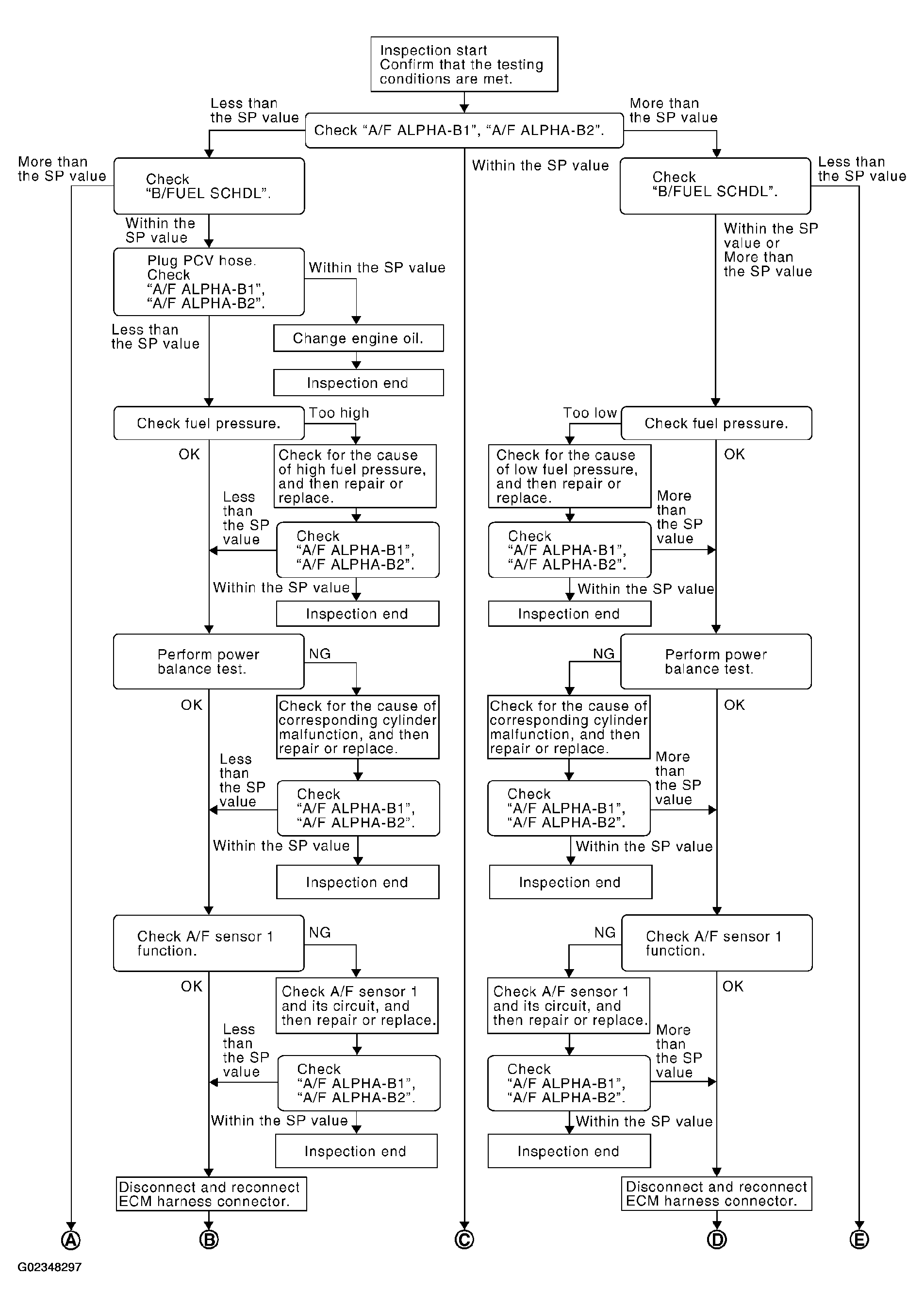

Fig 1: Diagnostic Procedure Overall Sequence (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

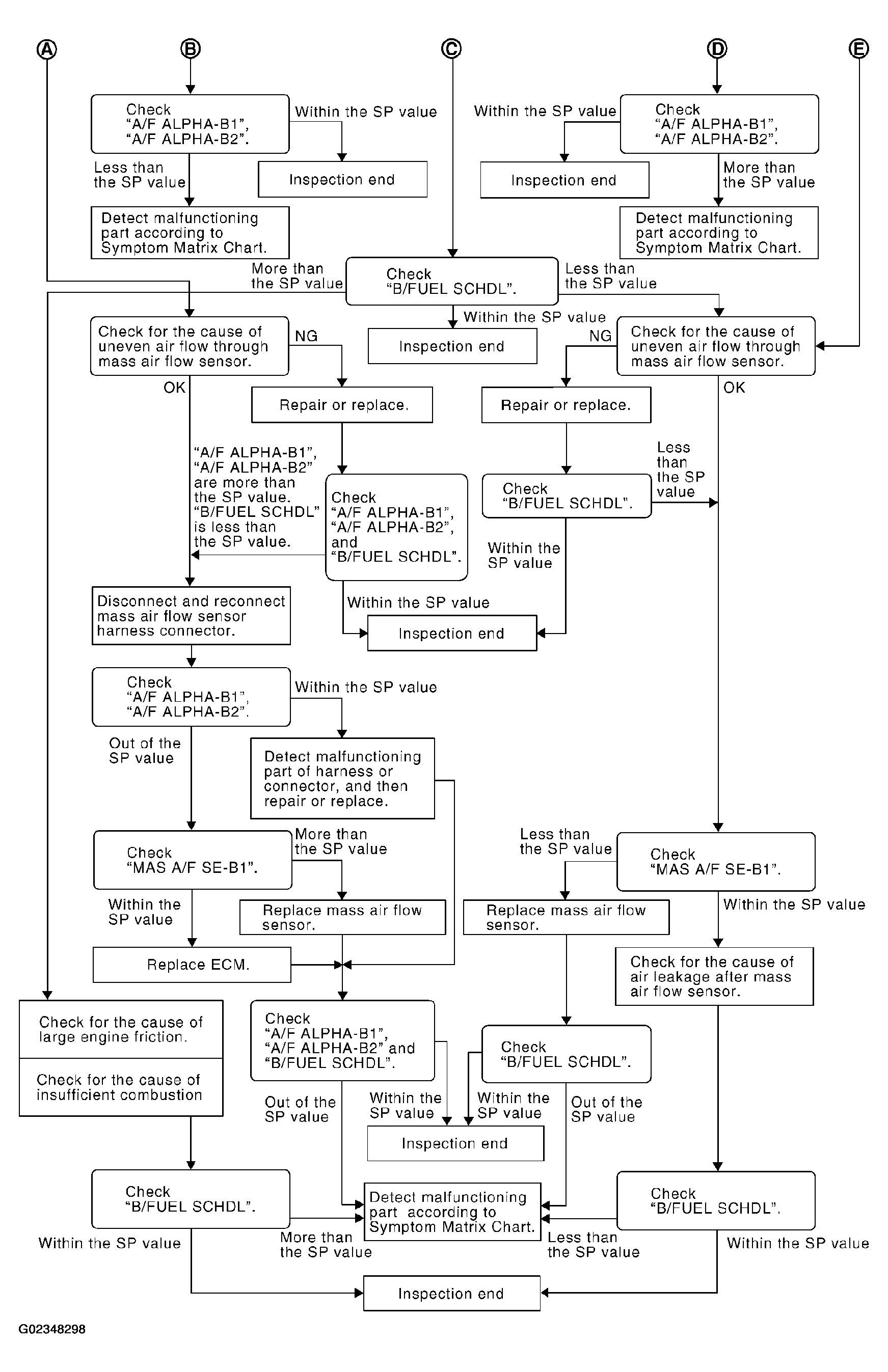

Fig 2: Diagnostic Procedure Overall Sequence (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
