Hydraulic Pressure Control System Diagram

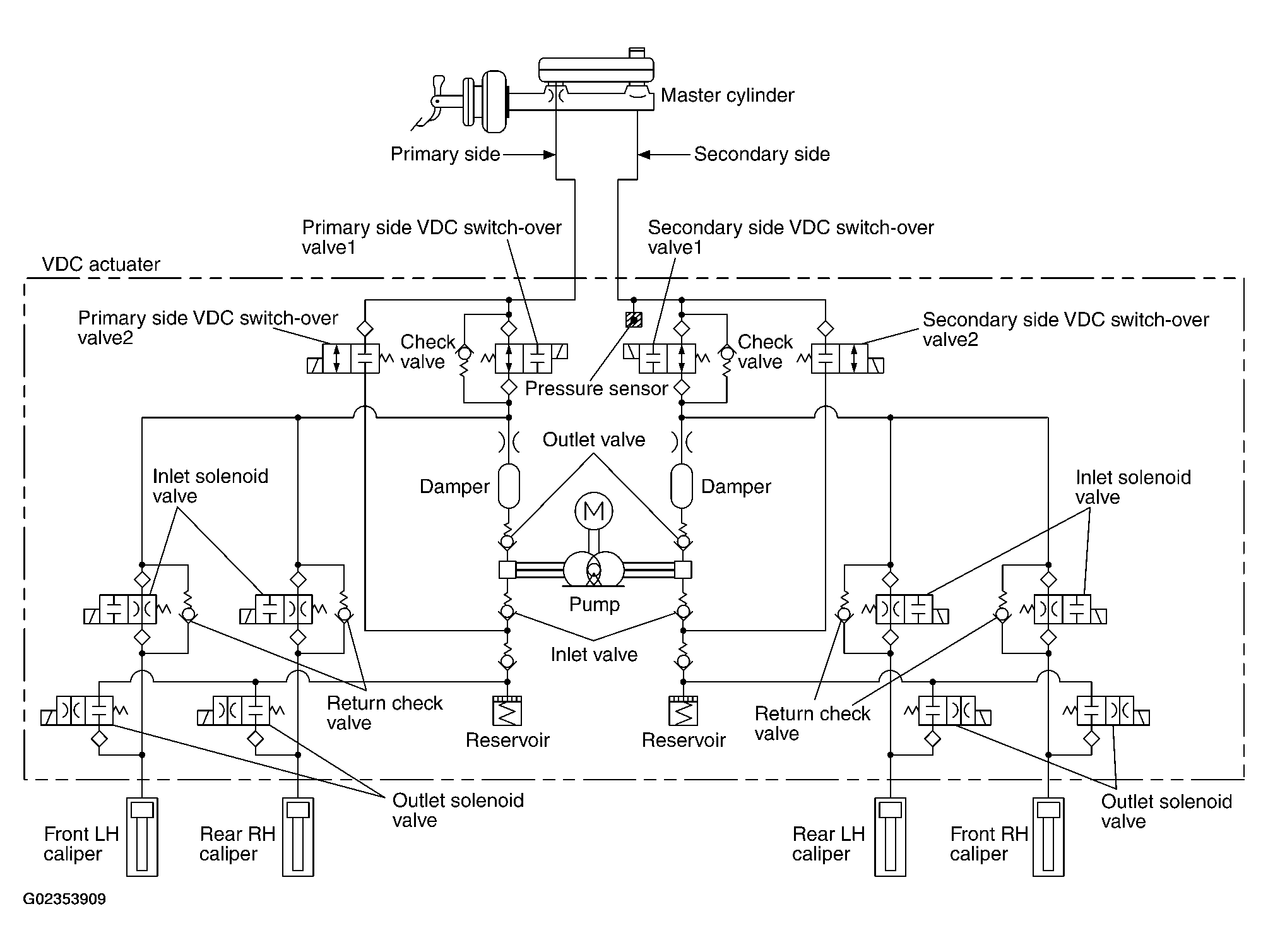

Fig 1: Hydraulic Pressure Control System Diagram

G02353909

Courtesy of NISSAN MOTOR CO., U.S.A.
