Wiring Diagram - ASCBOF

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRUCIT ELEMENTS - G35 COUPE

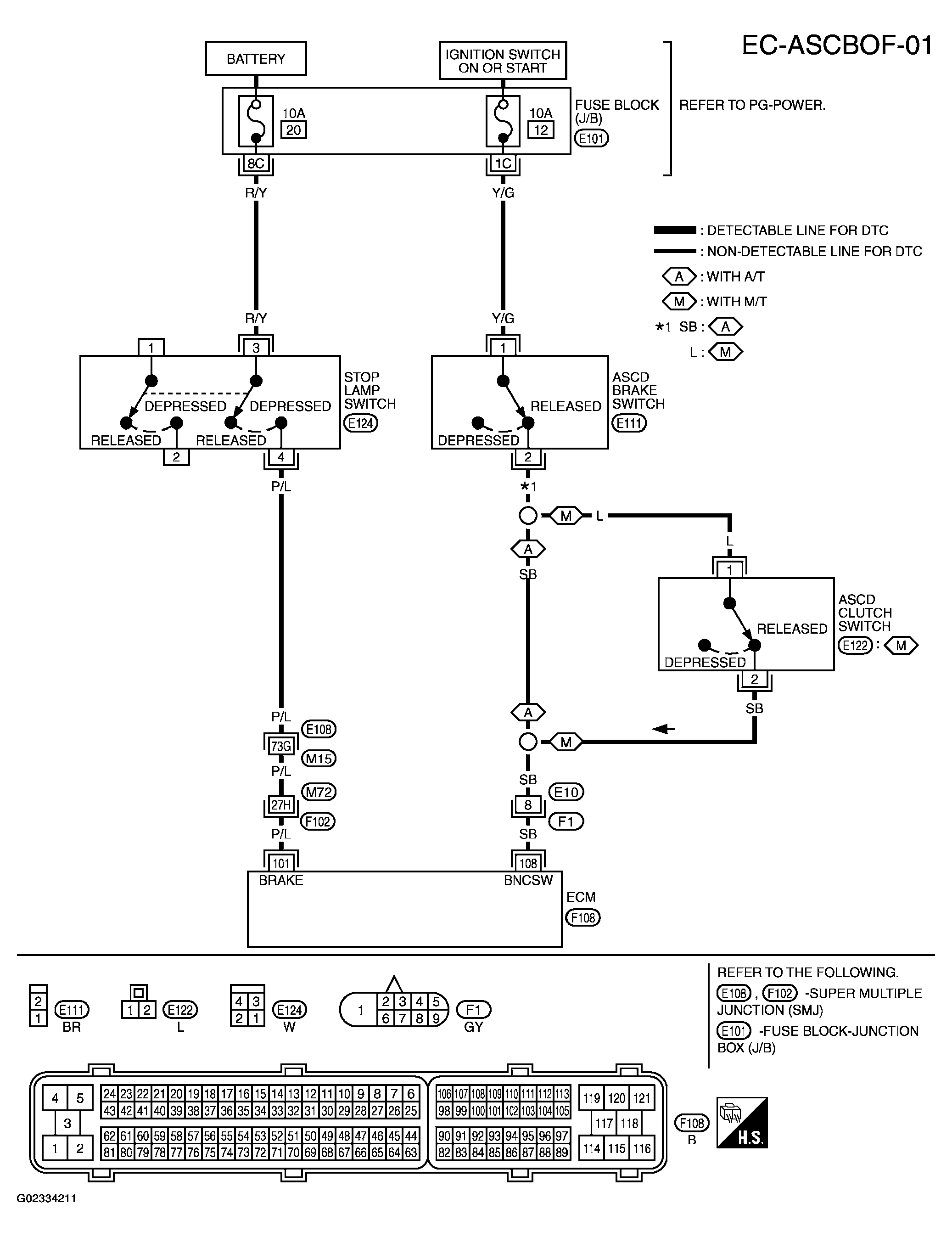

Fig 1: Wiring Diagram - (EC-ACSBOF-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

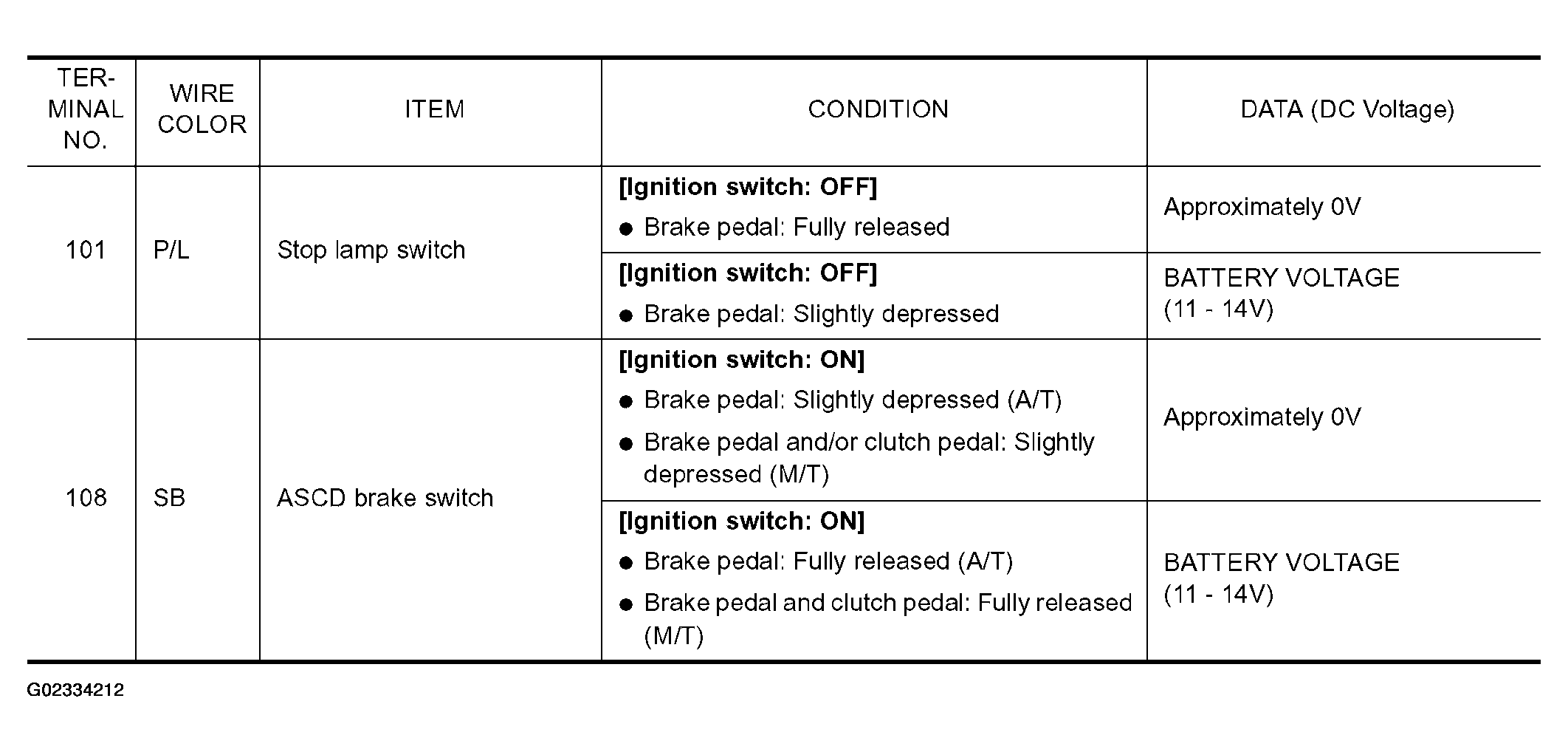

Fig 2: ECM Terminals Input/Output Voltage Chart (ACSD Brake Switch)

Courtesy of NISSAN MOTOR CO., U.S.A.
