With Consult-II

  1. Start engine (VDC switch OFF).
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Press MAIN switch and make sure that CRUISE indicator lights up.
  4. Drive the vehicle for at least 5 consecutive seconds under the following condition.

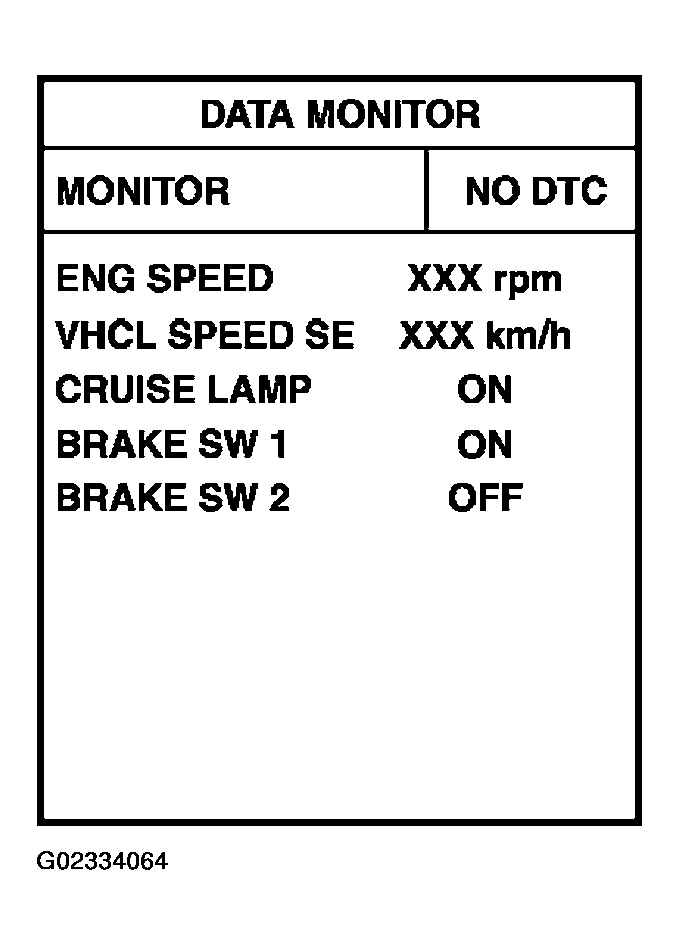

    Fig 1: DATA MONITOR Mode Display With CONSULT-II
    G02334064Courtesy of NISSAN MOTOR CO., U.S.A.
    VEHICLE DRIVING CONDITION

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Shift lever Suitable position

    If 1st trip DTC is detected, go to Diagnostic Procedure .

    If 1st trip DTC is not detected, go to the following step.

  5. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    VEHICLE DRIVING CONDITION

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Shift lever Suitable position
    Driving location Depress the brake pedal for more than five seconds so as not to come off from the above-mentioned vehicle speed.
  6. If 1st trip DTC is detected, go to Diagnostic Procedure .
