Terminal and Reference Value for BCM

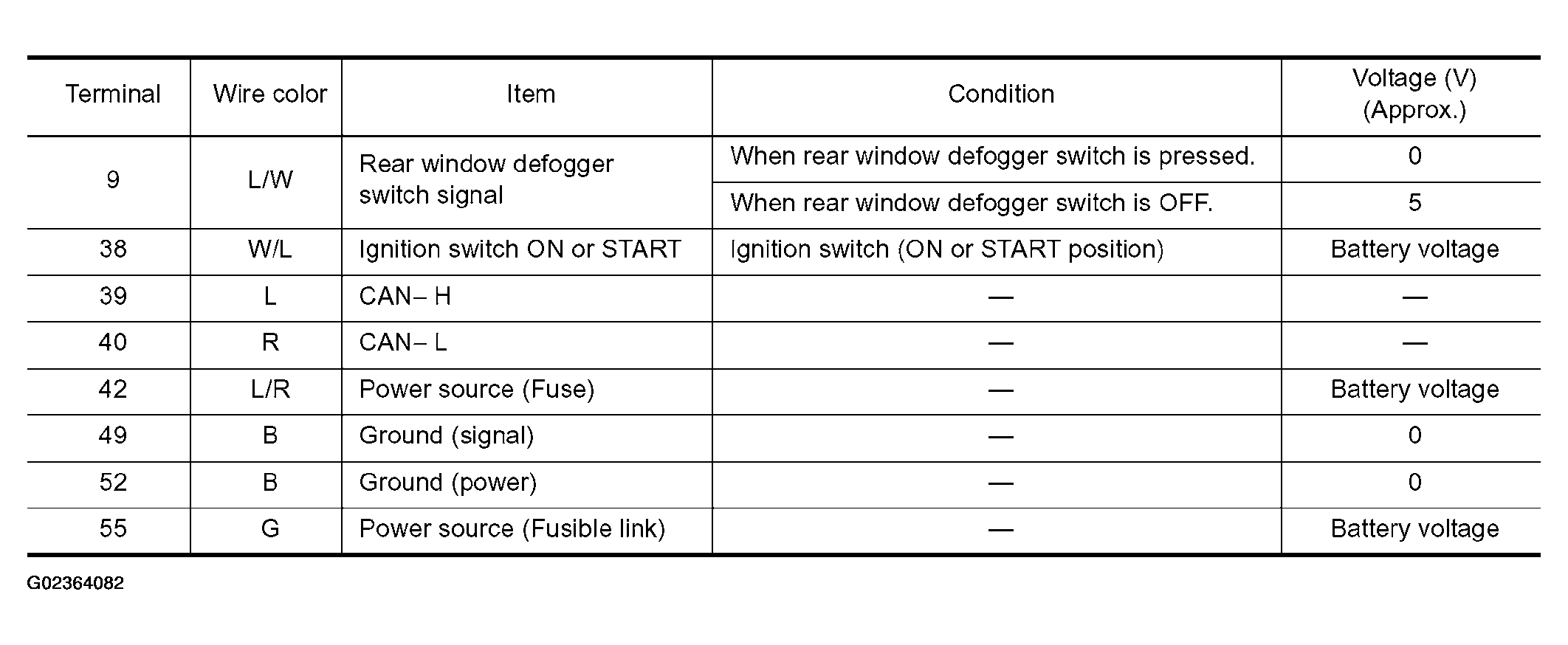

Fig 1: BCM - Terminal And Reference Value Chart

G02364082

Courtesy of NISSAN MOTOR CO., U.S.A.
