DTC Confirmation Procedure

CAUTION: Always drive vehicle at a safe speed.

NOTE: If "DTC Confirmation Procedure" has been previously performed, always turn ignition switch "OFF" and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II

Turn ignition switch "ON". (Do not start engine.)
Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

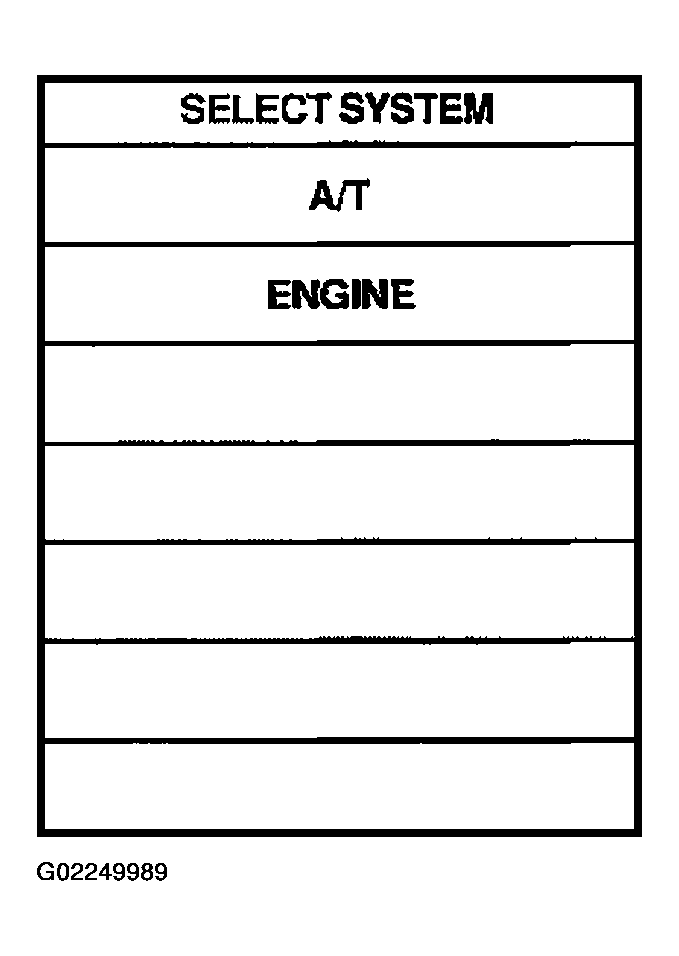

Fig 1: Displaying CONSULT-II SELECT SYSTEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and maintain the following conditions for at least 10 minutes (Total). (It is not necessary to maintain continuously.)
VHCL SPEED SE: 10 km/h (6 MPH) or more

THRTL POS SEN: More than 1.0/8

Selector lever: "D" position
If DTC is detected, go to DIAGNOSTIC PROCEDURE .

WITH GST

Follow the procedure "With CONSULT-II".
