DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously performed, always turn ignition switch "OFF" and wait at least 10 seconds before performing the next test.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

WITH CONSULT-II

Turn ignition switch "ON". (Do not start engine.)
Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

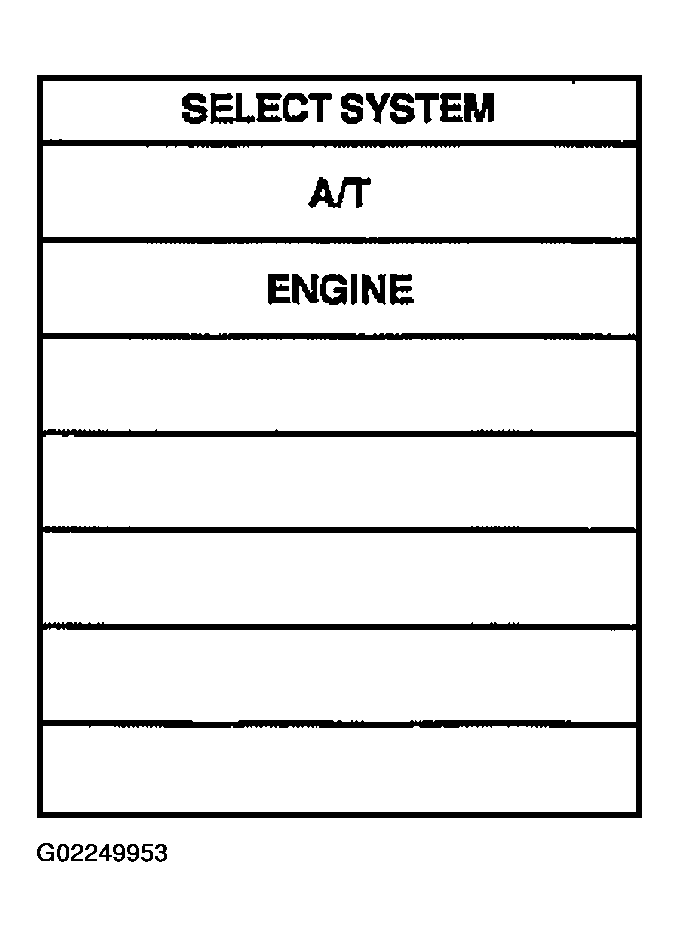

Fig 1: Displaying CONSULT-II SELECT SYSTEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine.
Run engine for at least 2 consecutive seconds at idle speed.
If DTC is detected, go to DIAGNOSTIC PROCEDURE .

WITH GST

Follow the procedure "With CONSULT-II".
