WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

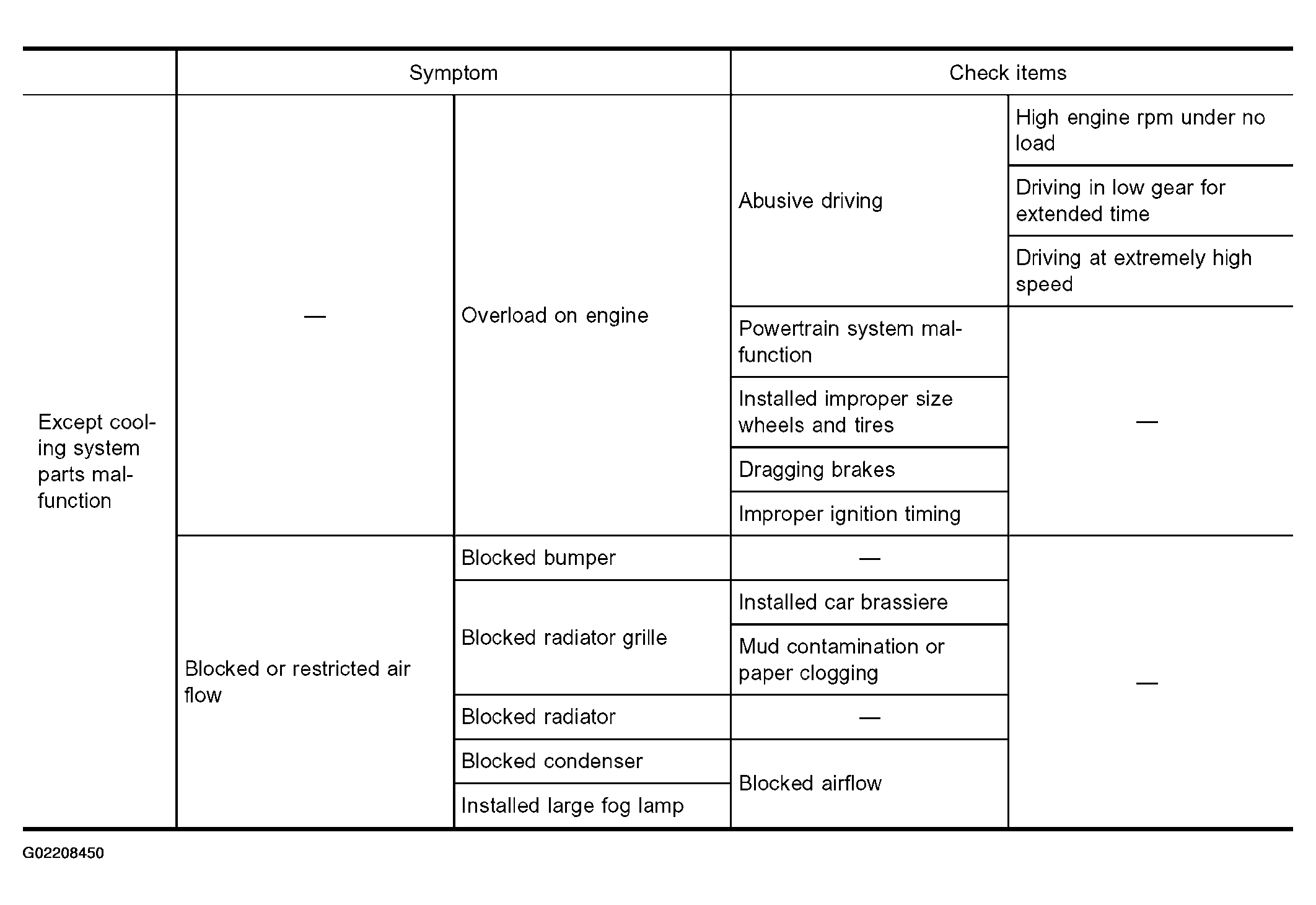

Fig 1: Displaying Overheating Cause Analysis (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

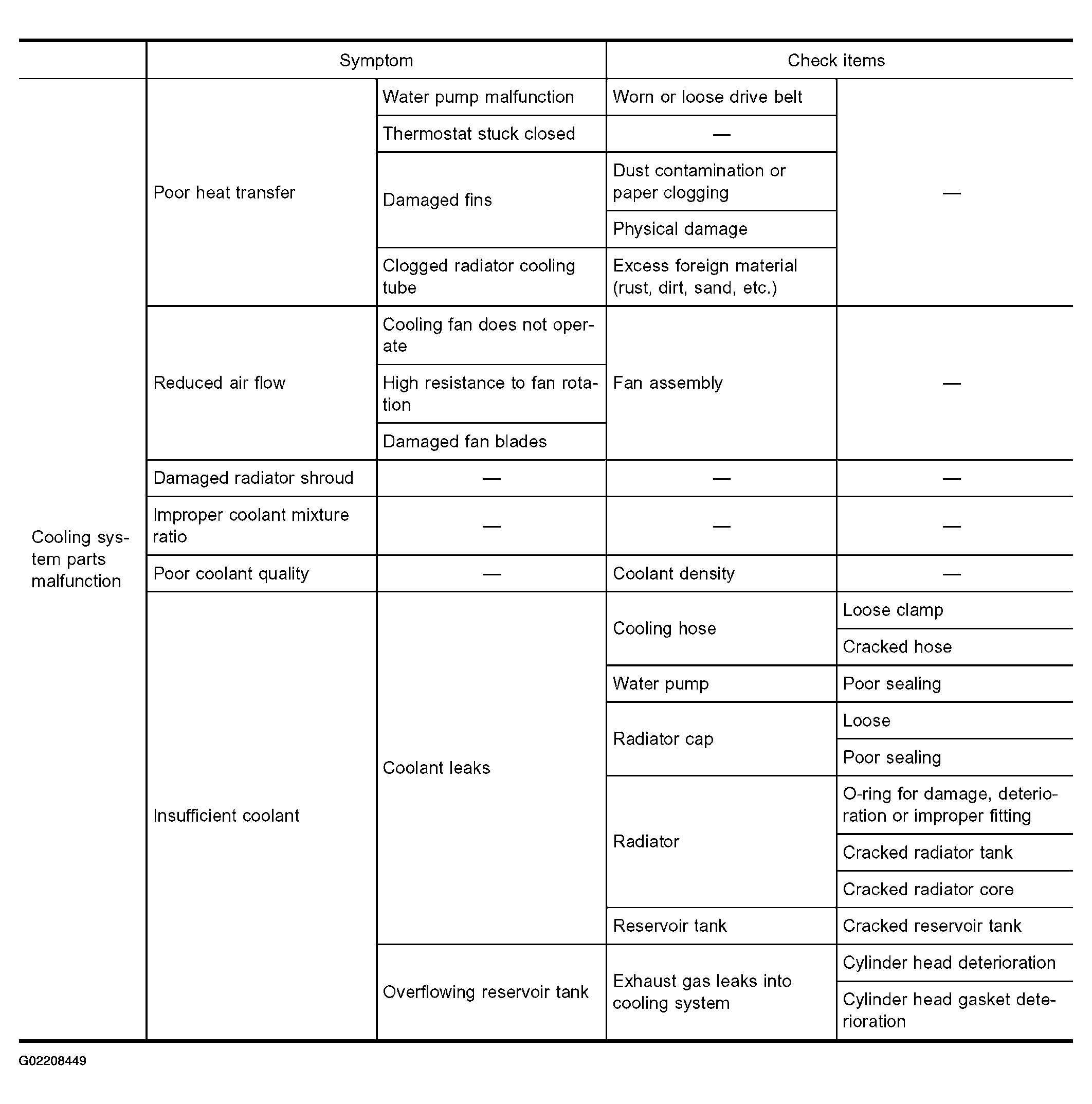

Fig 2: Displaying Overheating Cause Analysis (2 Of 2)
