EVAP Canister Vent Control Valve

With CONSULT-II

1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion B of EVAP canister vent control valve for being rusted.
3. Reconnect harness connectors disconnected.
4. Turn ignition switch ON.
5. Perform "VENT CONTROL/V" in "ACTIVE TEST" mode.
6. Check air passage continuity and operation delay time.
7. Clean the air passage (Portion A  to B  ) of EVAP canister vent control valve using an air blower.
8. Perform Test No. 9. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR  again.

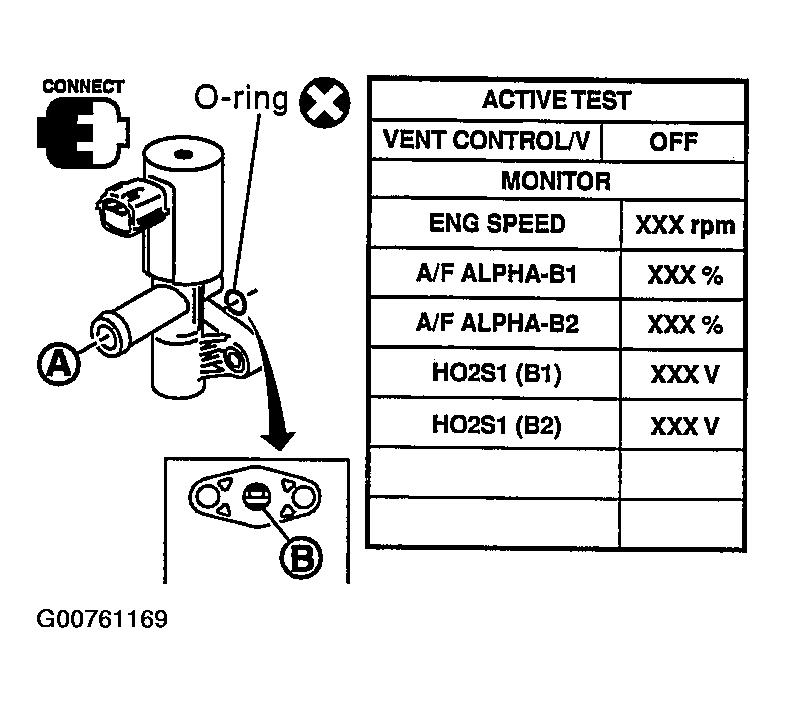

   Fig 1: Checking Air Passage

   Courtesy of NISSAN MOTOR CO., U.S.A.

With GST

1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion B  of EVAP canister vent control valve for being rusted.
3. Check air passage continuity and operation delay time under the following conditions.

   Make sure new O-ring is installed properly.

4. Clean the air passage (Portion A  to B  ) of EVAP canister vent control valve using an air blower.
5. Perform Test No. 9. CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR  again.

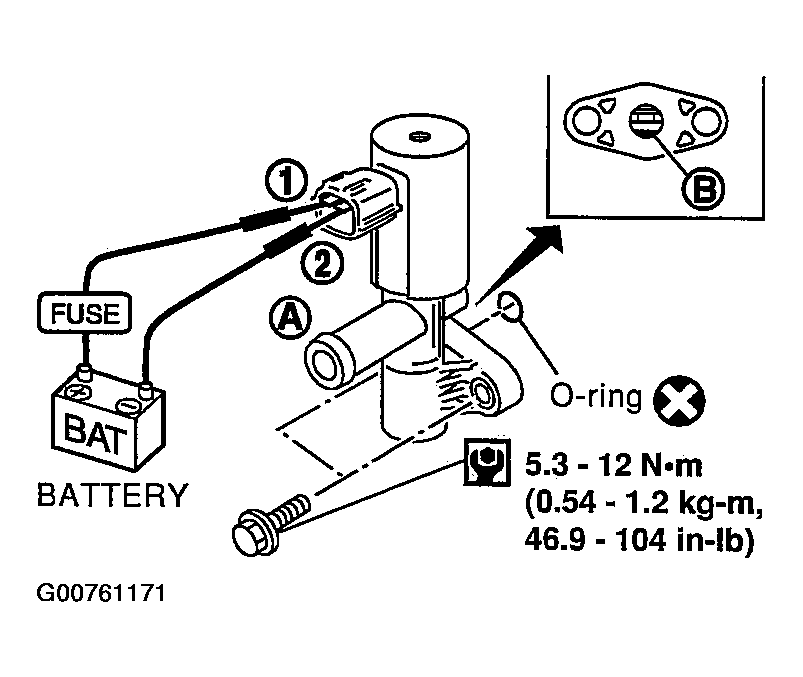

   Fig 2: Checking EVAP canister vent control valve Without CONSULT-II

   Courtesy of NISSAN MOTOR CO., U.S.A.
