Terminals And Reference Value For BCM

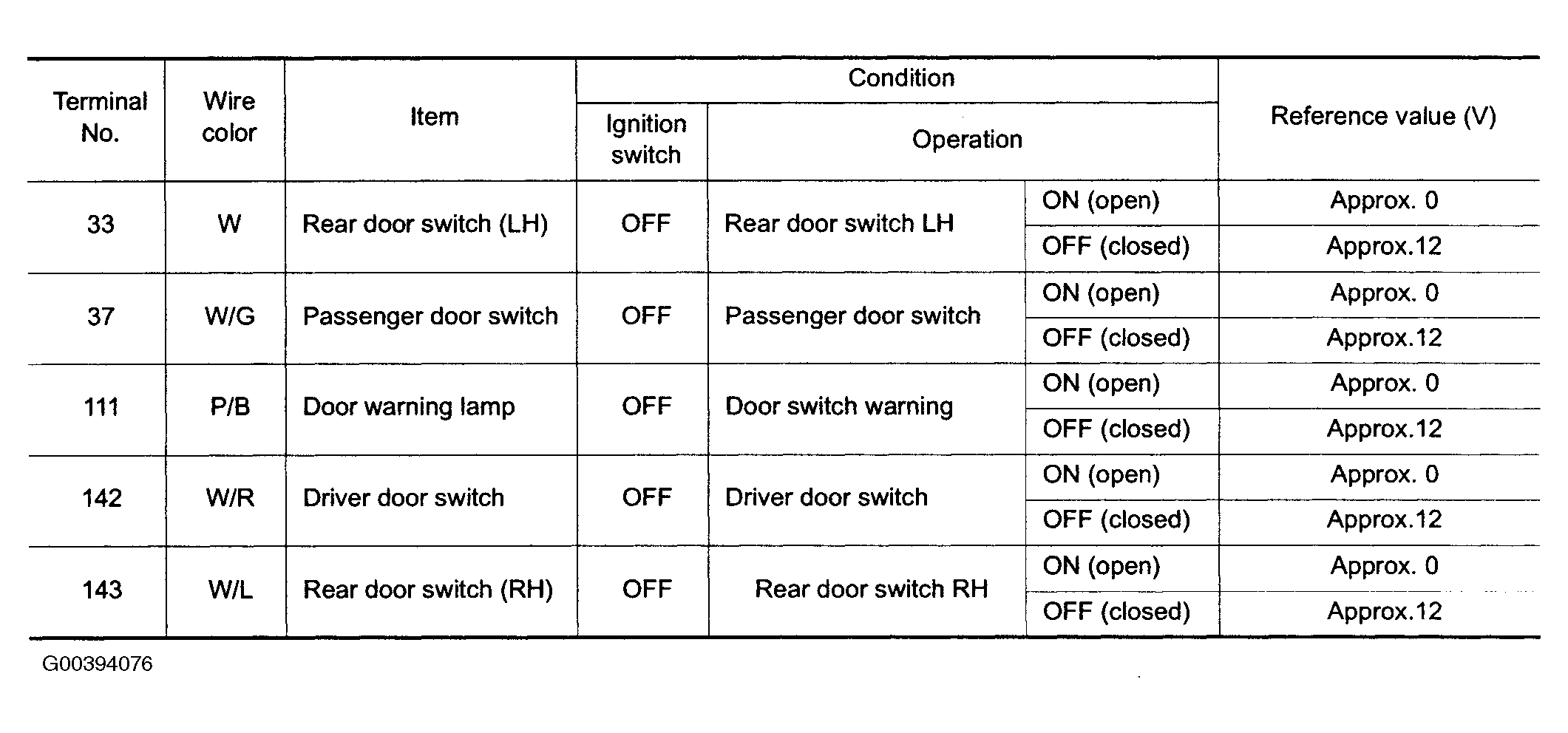

Fig 1: Terminals And Reference Value For BCM

G00394076

Courtesy of NISSAN MOTOR CO., U.S.A.
