2. Check Communication Signal (AV-ME)

1. Connect connectors of AV control unit, combination meter and BCM.
2. Turn the ignition switch ON.

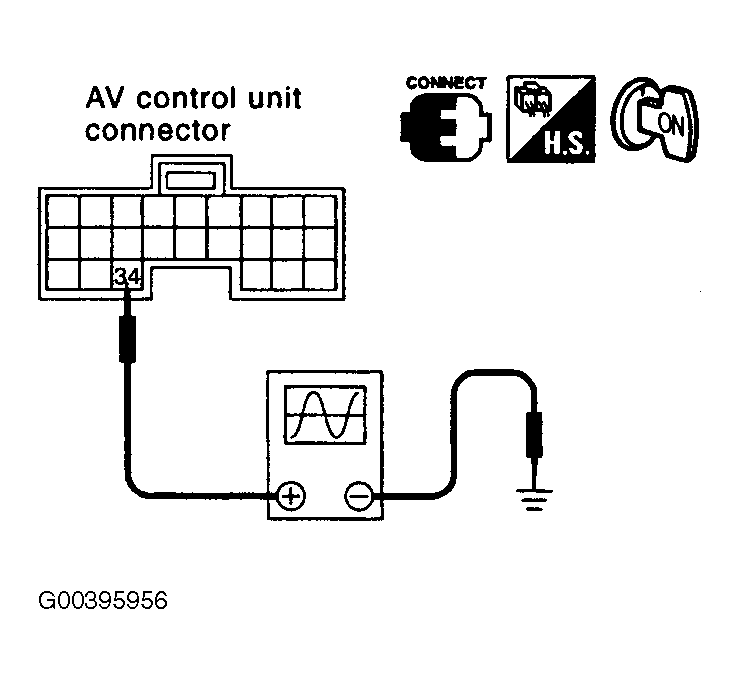

3. Check voltage signal between AV control unit harness connector M77 terminal 34 (LG) and ground with CONSULT-II or oscilloscope. See Figure .

   34 (LG) - Ground: Refer to TERMINALS AND REFERENCE VALUE FOR AV CONTROL UNIT  .

OK or NG

1. OK: GO TO 3  .
2. NG: Replace AV control unit.
